ABS Schematics

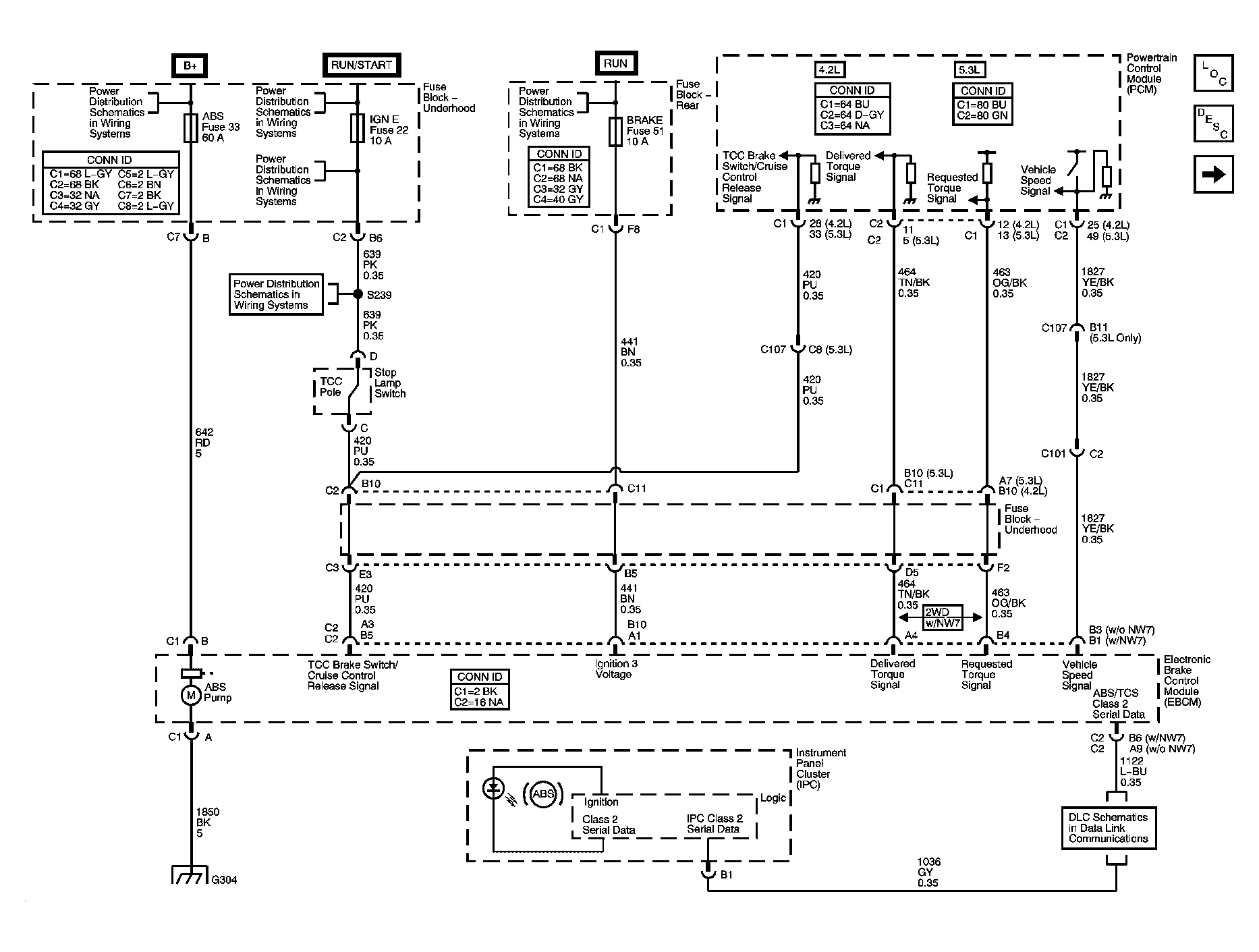

Fig 1: EBCM Power, Ground, Serial Data, Indicator, and Signal Circuits Schematic

Courtesy of GENERAL MOTORS CORP.

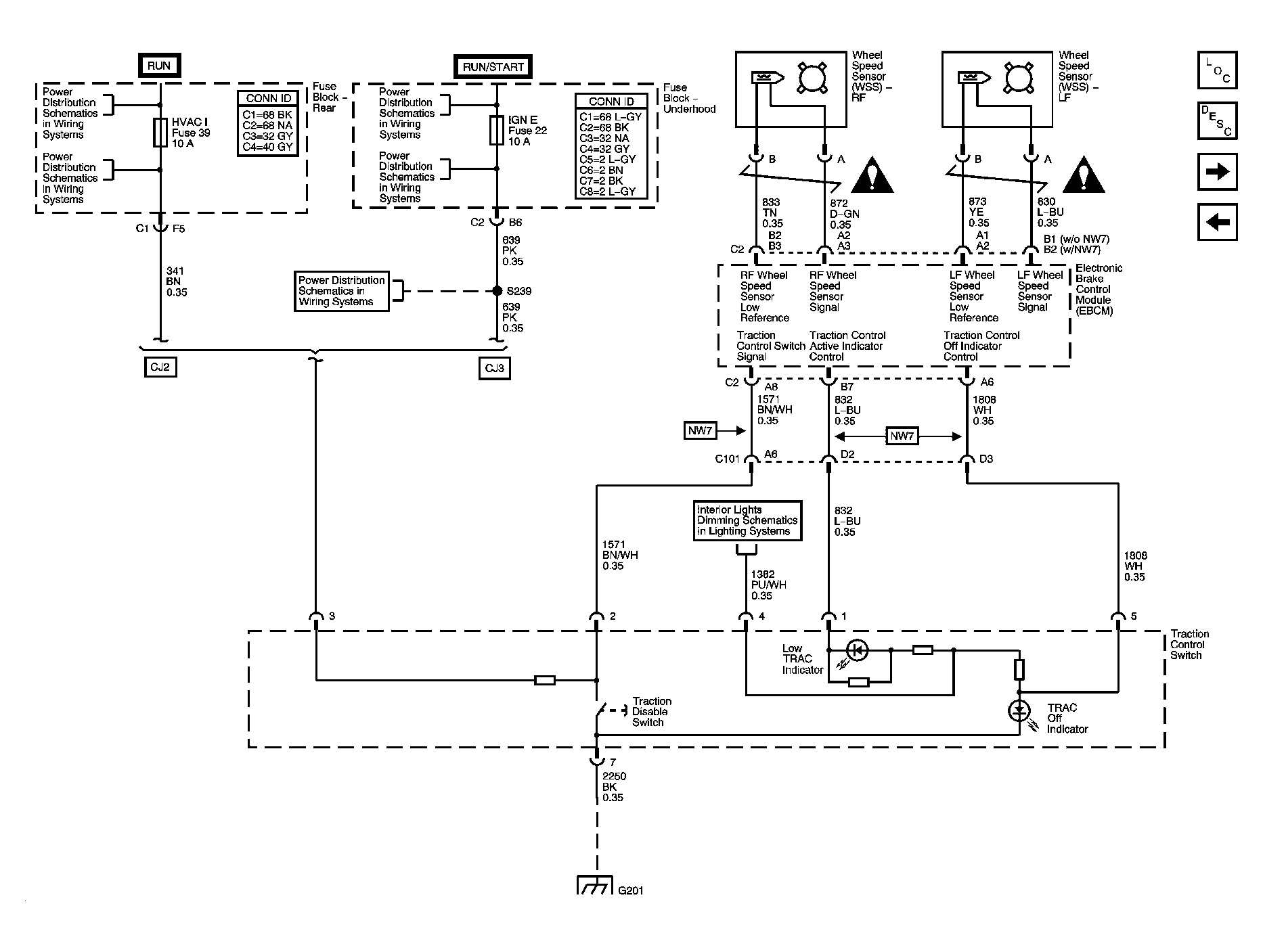

Fig 2: Traction Control (NW7) and Wheel Speed Sensors Schematic - Except Buick/Oldsmobile

Courtesy of GENERAL MOTORS CORP.

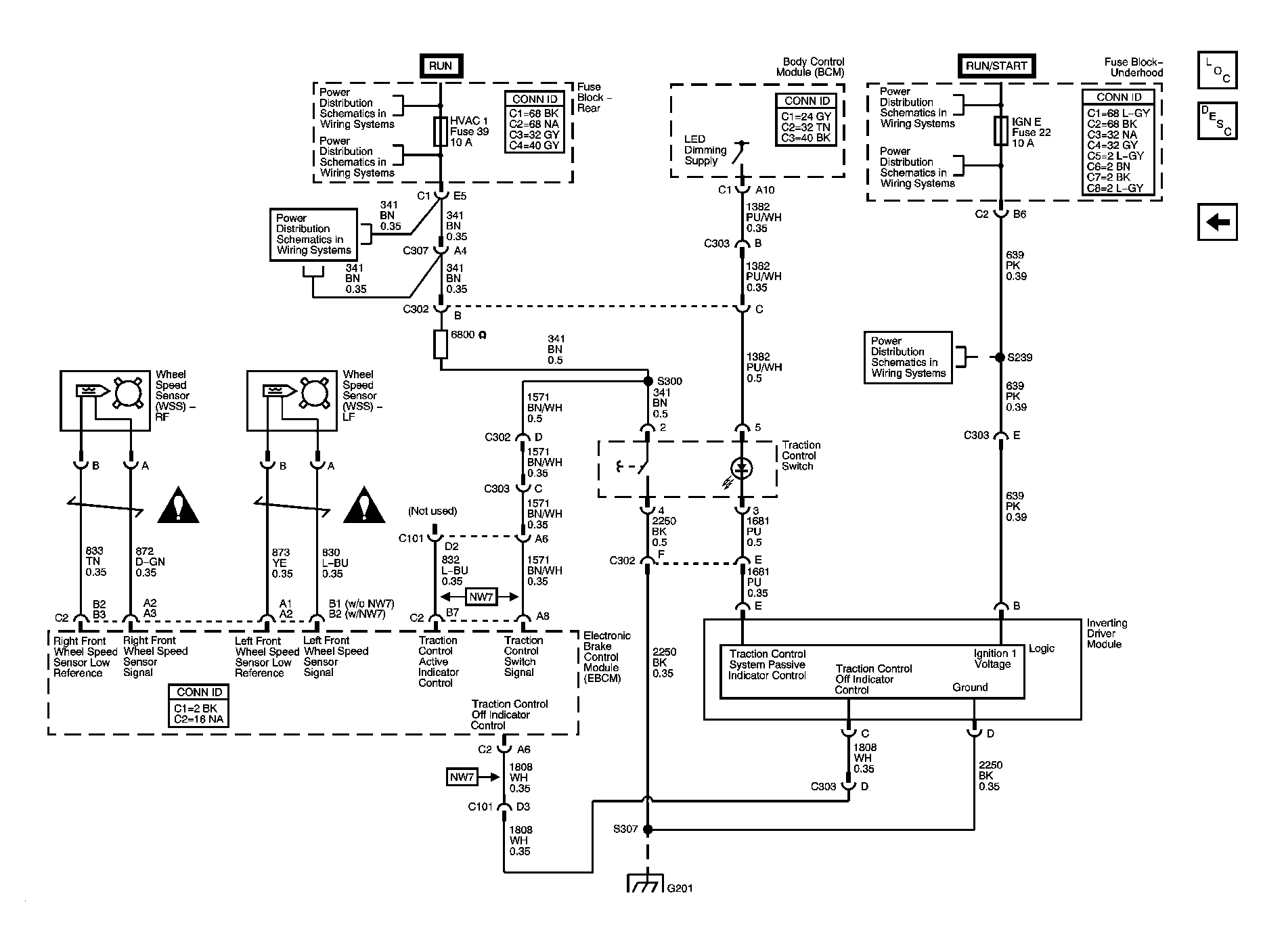

Fig 3: Traction Control (NW7) and Wheel Speed Sensors Schematic - Buick/Oldsmobile

Courtesy of GENERAL MOTORS CORP.
