Installation Procedure

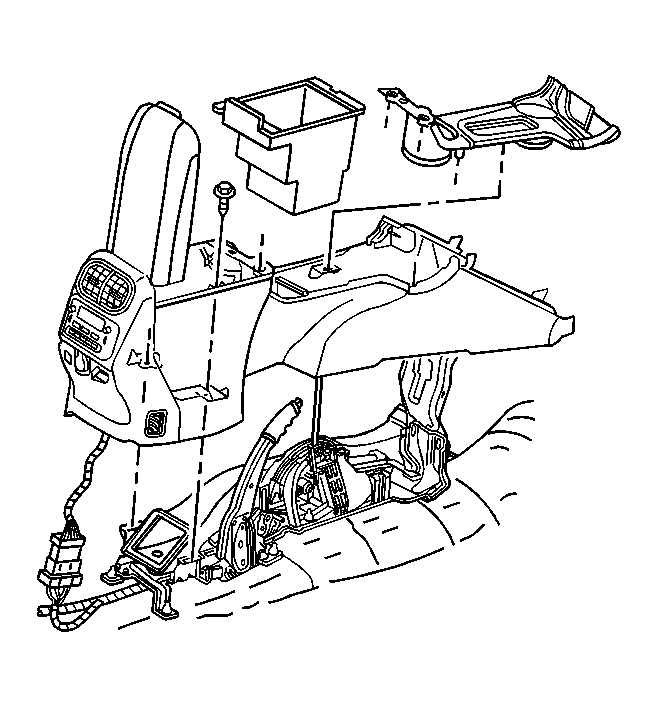

    Fig 1: Removing/Installing Console
    GM741613Courtesy of GENERAL MOTORS CORP.
  1. If replacing the floor console base, instal the following:
    1. Instal the HVAC upper duct.
    2. Instal the cupholder.
    3. Instal the HVAC module and duct assembly.
    4. Instal the armrest.
    5. Instal the HVAC control module (if equipped).
  2. Position the center console to the vehicle.
  3. Adjust the parking brake to the full-up, or fully engaged position.
  4. Connect the electrical connectors as necessary.
  5. Lower the rear of the console and slide the console forward into position.
  6. Ensure that the 2 retaining ears on the front extensions of the console are fully engaged to the lower IP-Oldsmobile only.
    7. NOTE: Refer to Fastener Notice in Cautions and Notices.
  7. Install the center console retaining screws.

    Tighten:  Tighten the screws to 2.5 N.m (22 lb in).

  8. Install the console storage compartment. Refer to Console Storage Bin Replacement .
  9. Install the center console shift lever bezel. Refer to Console Shift Lever Bezel Replacement (Oldsmobile, Buick) .
  10. Install the floor shift control knob. Refer to Floor Shift Control Knob Replacement in Automatic Transmission.
  11. Install the rubber ash tray inserts and rubber mat to the console.
  12. Remove the bocks from the vehicle.
