Fuel Hose/Pipes Routing Diagram

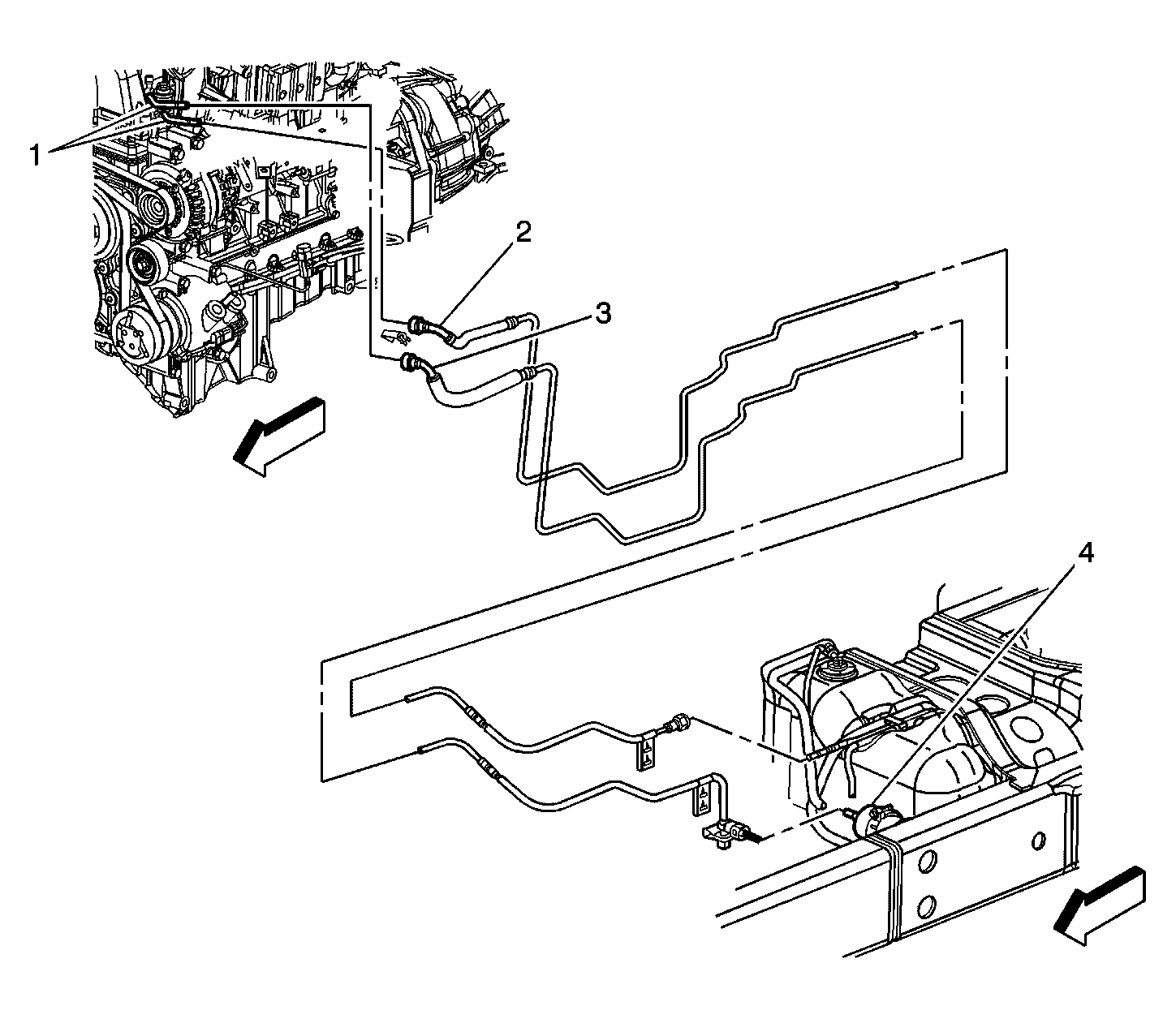

Fig 1: Fuel Hose/Pipes Routing Diagram

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Compartment Fuel Pipes
2	Fuel Return Pipe
3	Fuel Feed Pipe
4	Fuel Filter
