Wiper/Washer Views

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

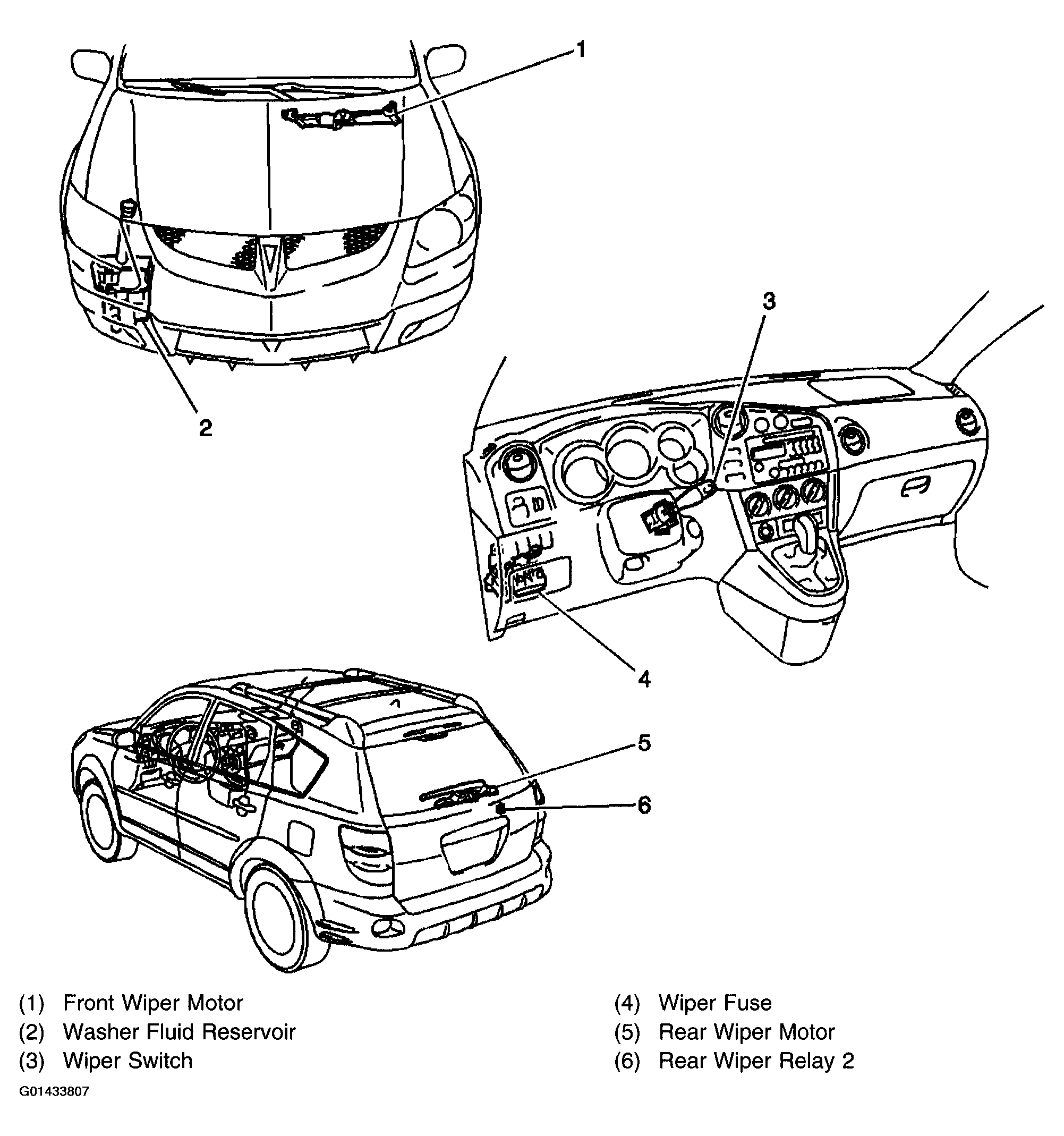

Fig 1: Locating Wiper/Washer System Components

Courtesy of GENERAL MOTORS CORP.
