Door Control Module Schematics

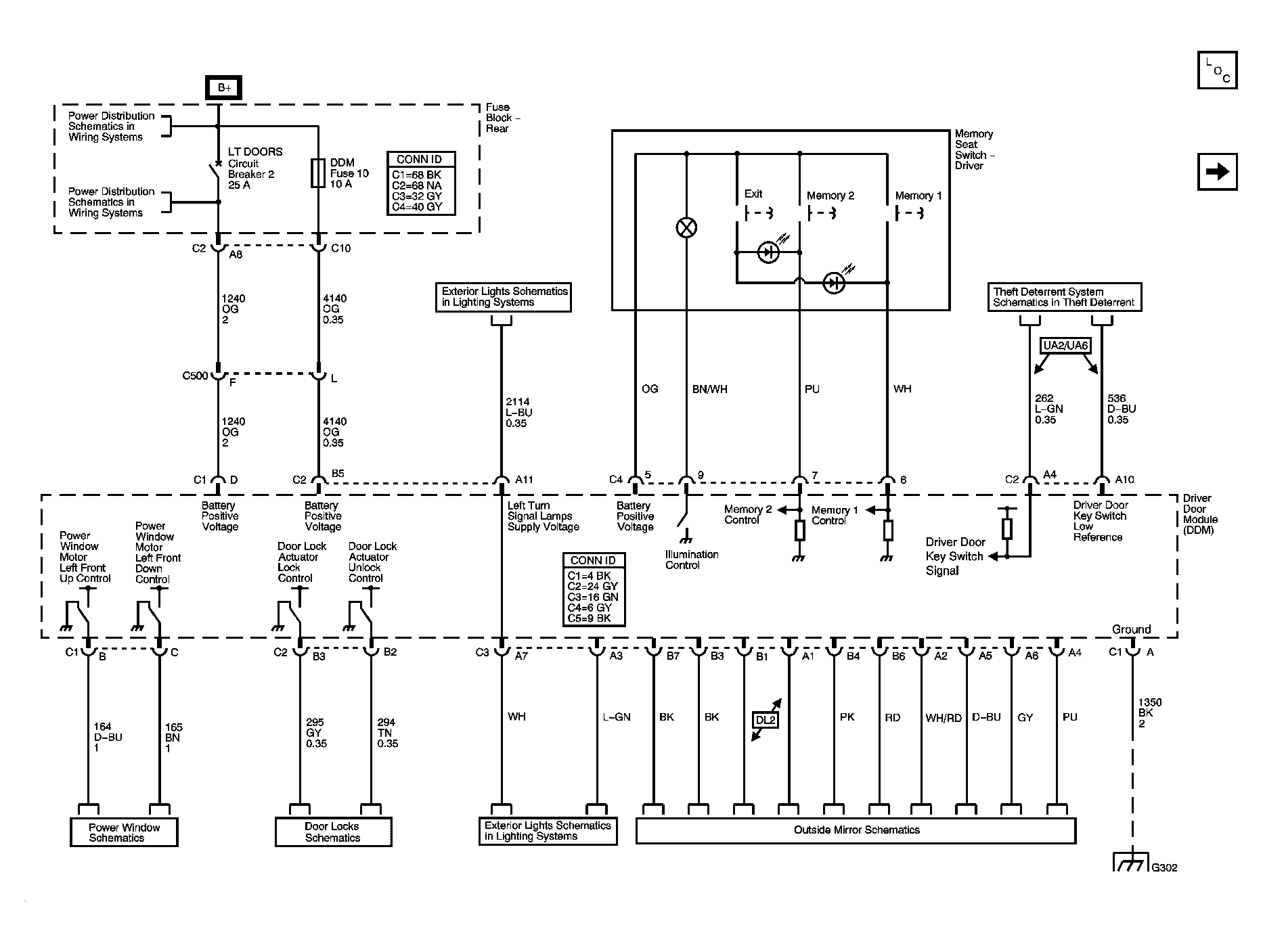

Fig 1: Driver - Power, Ground, and Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Driver - Serial Data and Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

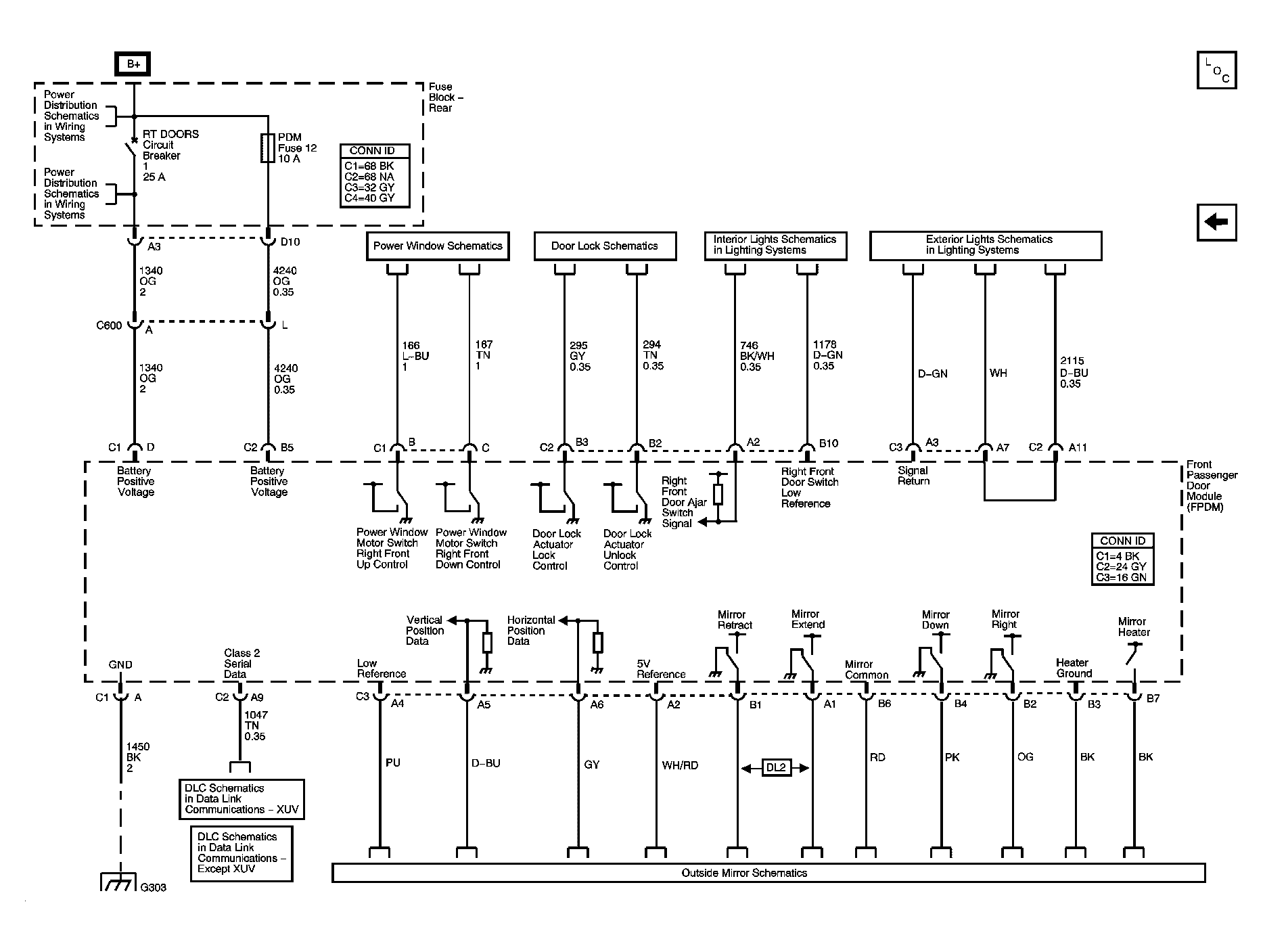

Fig 3: Front Passenger Schematic

Courtesy of GENERAL MOTORS CORP.
