Navigation System Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Isuzu Ascender, 2005 GMC Envoy XUV, 2005 GMC Envoy XL, 2005 GMC Envoy, and 2005 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

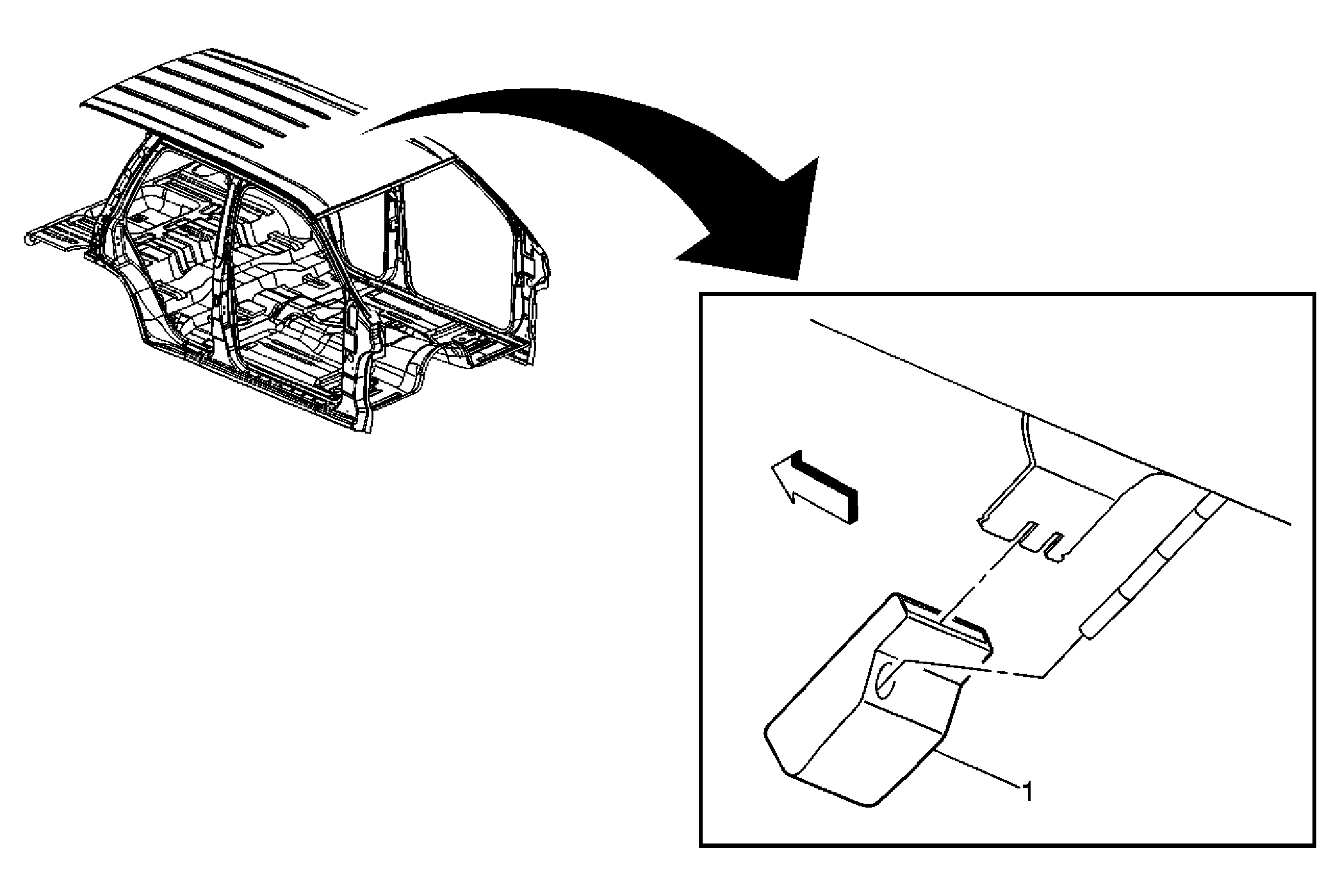

Fig 1: Global Positioning System (GPS) Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Global Positioning System (GPS) Antenna

Fig 2: Radio Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel
2	Radio Antenna
3	Radio
4	Instrument Panel Harness
