Fuses & Circuit Breakers
›
Fuse Panel Identification
›
Notes
Fuse Panel Identification: Notes

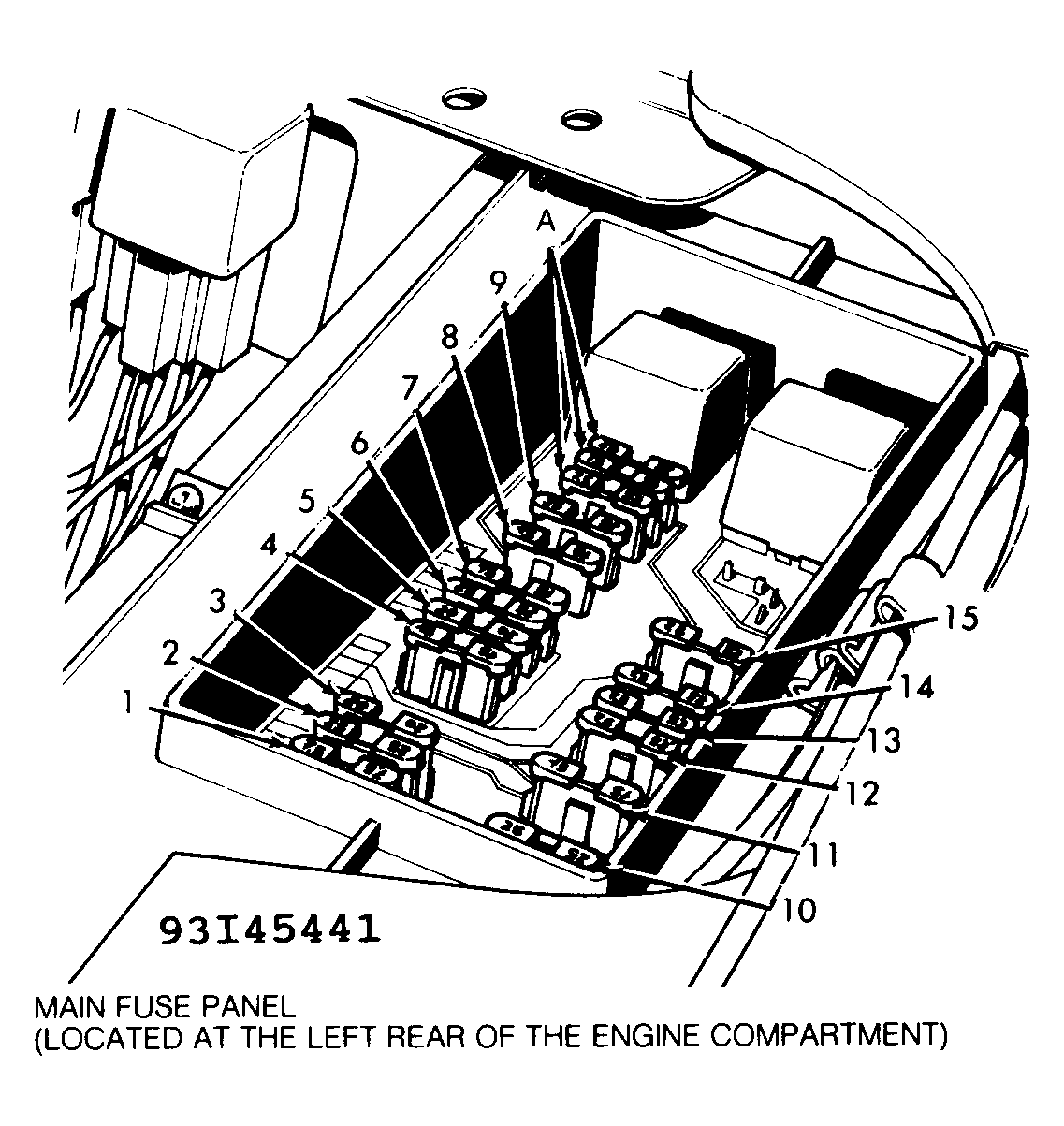

Fig 1: Fuse Panel Identification
Courtesy of PEUGEOT MOTORS OF AMERICA, INC.

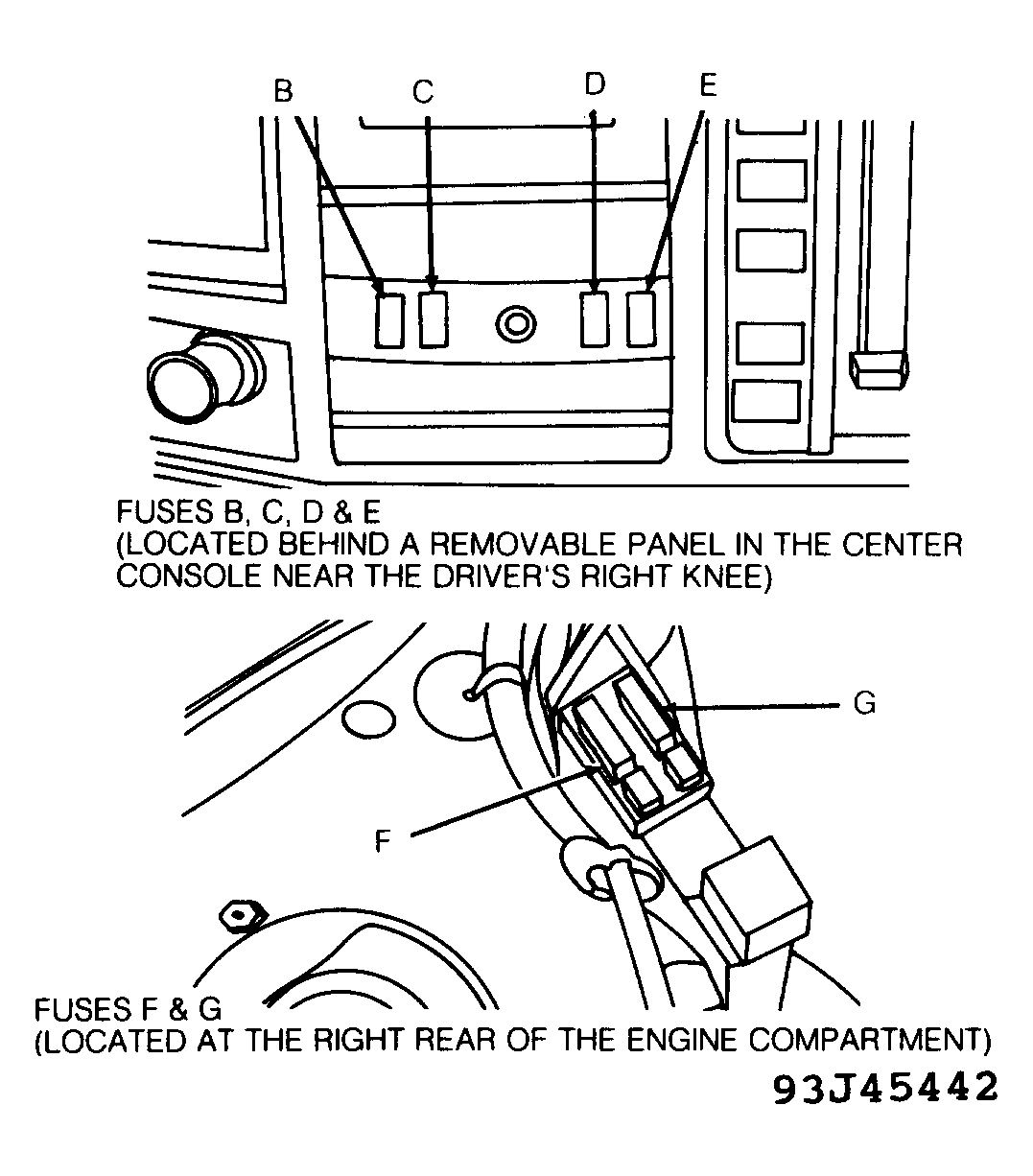

Fig 2: Fuse B Through G Location & Identification
Courtesy of PEUGEOT MOTORS OF AMERICA, INC.
Courtesy of PEUGEOT MOTORS OF AMERICA, INC.
Courtesy of PEUGEOT MOTORS OF AMERICA, INC.
