Cold Engine Lockout Switch

Mounted on the water valve, this switch prevents blower operation (when heat is required) until engine coolant temperature is above 125°F and either of the auto pushbuttons are depressed.

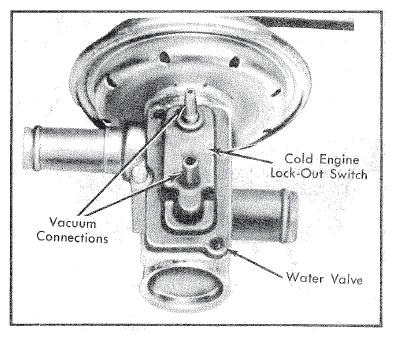

Fig 1: Cold Engine Lock-Out Switch
G09315144Courtesy of CHRYSLER GROUP, LLC
