Temperature Control Lever

Control lever allows a vehicle operator to select any temperature setting from 65° to 85°F. Lever controls a potentiometer, which varies signal being sent to amplifier by the sensor string so that amplifier will maintain selected in-car temperature.

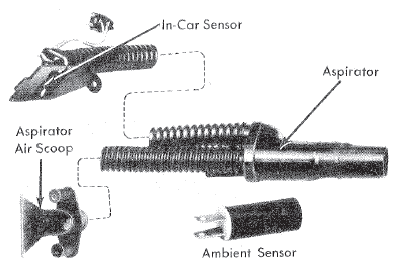

Fig 1: Sensor String Components: In-Car Sensor, Ambient Sensor, and Aspirator Air Scoop
G09315141Courtesy of CHRYSLER GROUP, LLC
