Wiring Diagrams - Engine Performance: Wiring Diagram

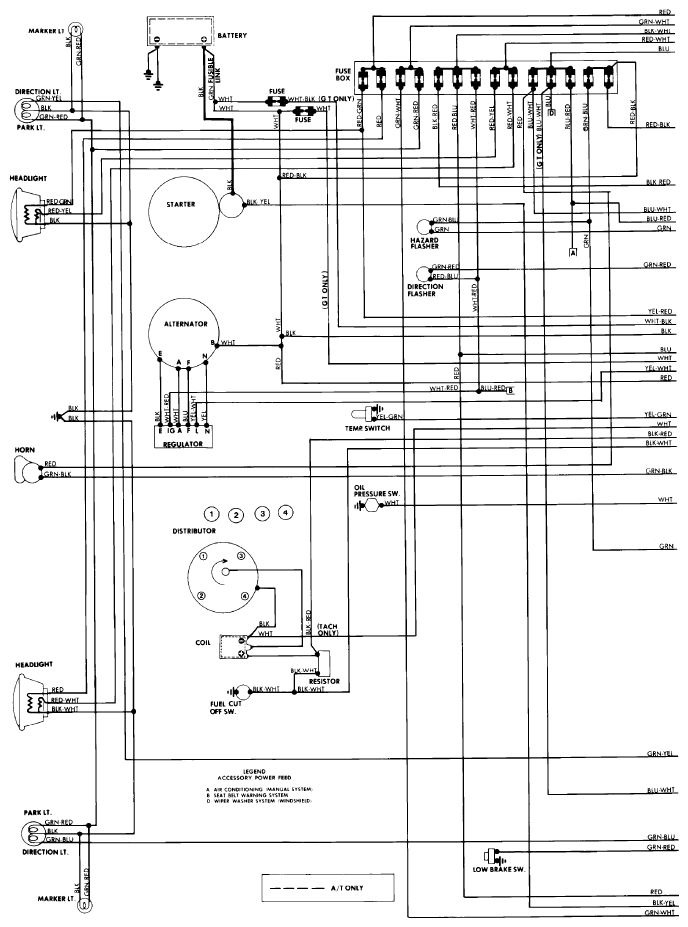

Fig 1: Wiring Diagram - Hatchback (1 of 2)

Courtesy of CHRYSLER GROUP, LLC

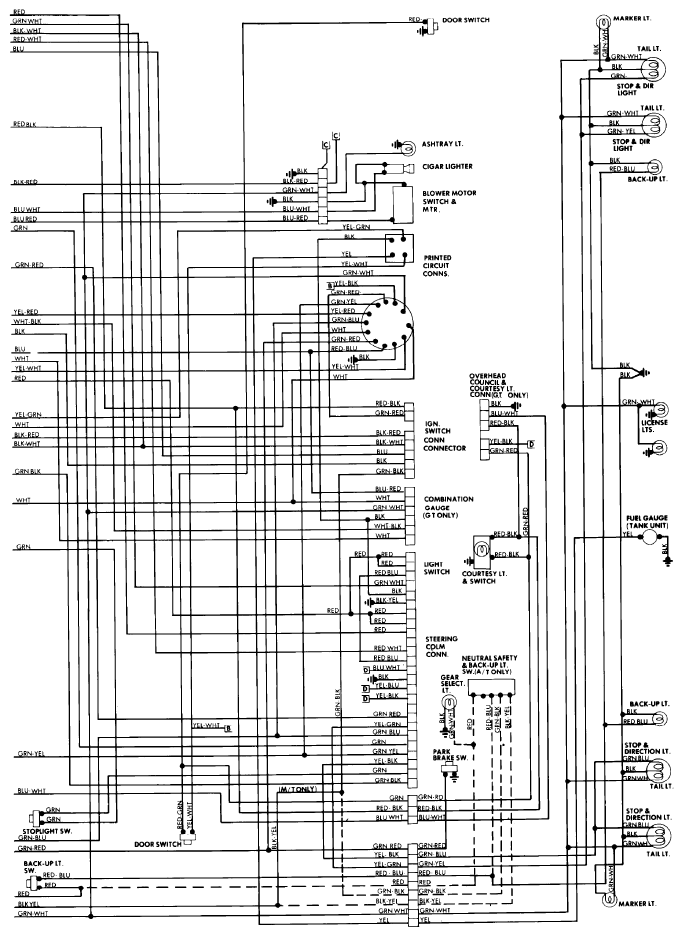

Fig 2: Wiring Diagram - Hatchback (2 of 2)

Courtesy of CHRYSLER GROUP, LLC
