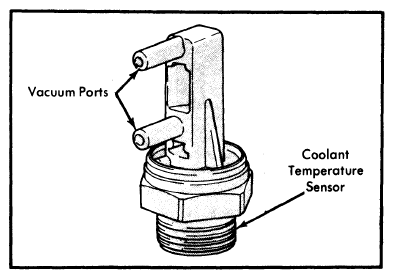

Coolant Control EGR Valve (CCEGR)
NOTE:
Location of CCEGR valve is as follows: On 4 cylinder engines, valve is in thermostat housing. On 6 cylinder engines, valve is in cylinder head. On V8 engines, valve is in intake manifold.
CCEGR Color Code & Temperature Chart
| Color Code |
Opening Temp. (°F) |
| Black |
98 |
| Yellow |
125 |
| Red |
150 |
Courtesy of CHRYSLER GROUP, LLC
