Base Ignition Timing Specifications

Fig 1:

G00323401

Fig 2:

G00323402

Fig 3:

G00323403

Fig 4:

G00323404

Fig 5:

G00323405

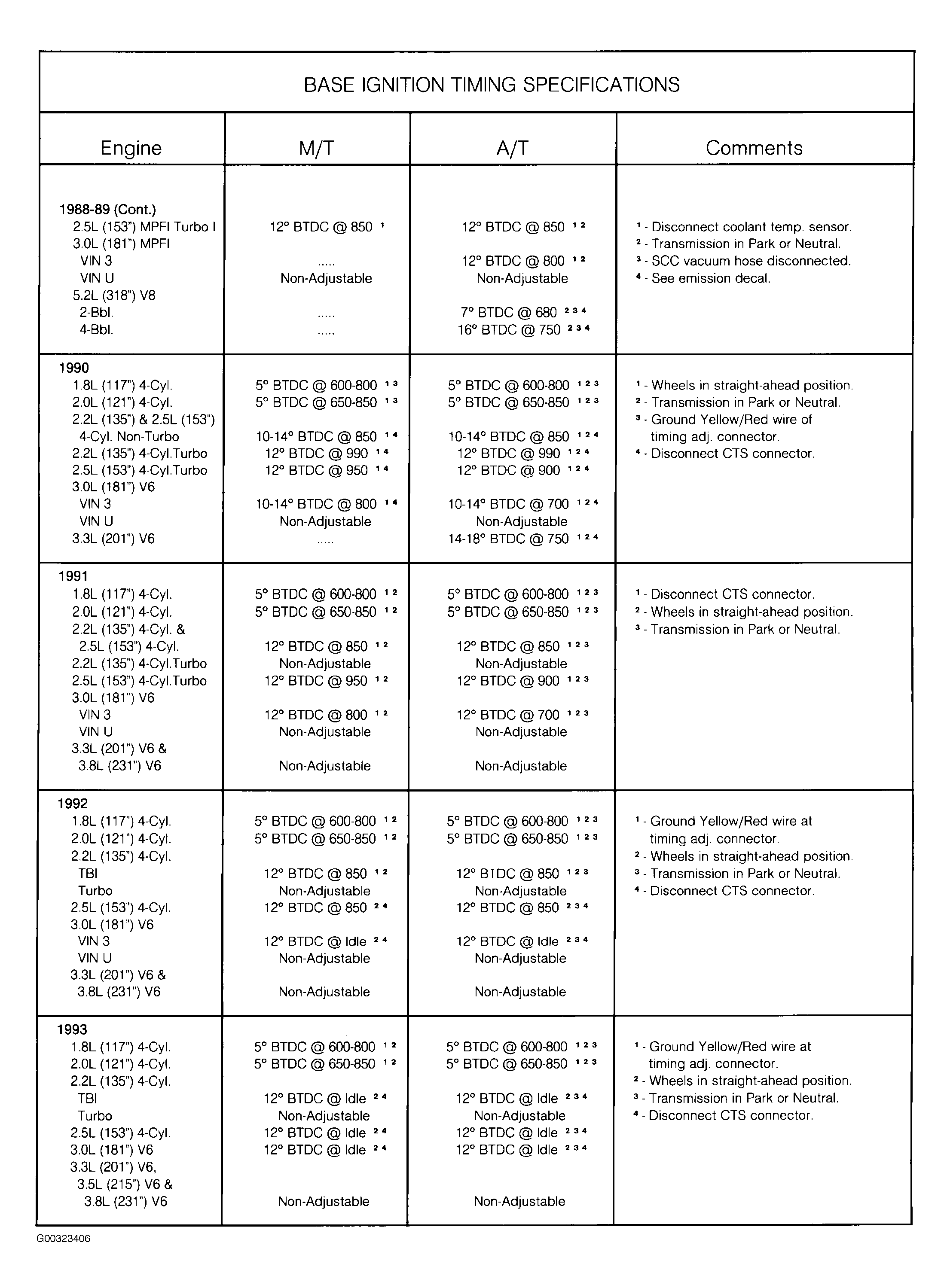

Fig 6:

G00323406

Fig 7:

G00323407
