Wiper Switch: Installation

To install, reverse removal procedure, ensuring that cancel cam pins are aligned with holes in back of steering wheel.

To install, reverse removal procedure. Do not overtighten switch screws.

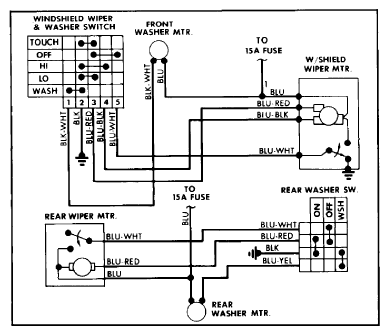

Fig 1: Challenger & Sapporo Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

Fig 2: Champ & Colt Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC
