Repair and Diagnosis: Transmission: Clutch: Clutches: Description

Clutches used on all Chrysler Corp. vehicles are single, dry disc Borg and Beck design. Adjustment for wear is not provided in clutch itself. Clutch pedal linkage is adjustable to maintain pedal free play. Clutch linkage on all models is mechanical type.

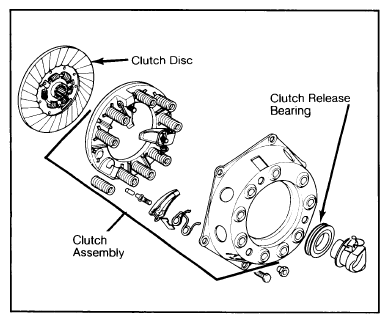

Fig 1: Exploded View of Chrysler Corp. Borg and Beck Type Clutch Assembly

Courtesy of CHRYSLER GROUP, LLC

Mark clutch cover position before disassembly.
