Mirror Switch

  1. Using an ohmmeter, test for continuity between terminals as shown, while operating the switch. See Fig 1 .

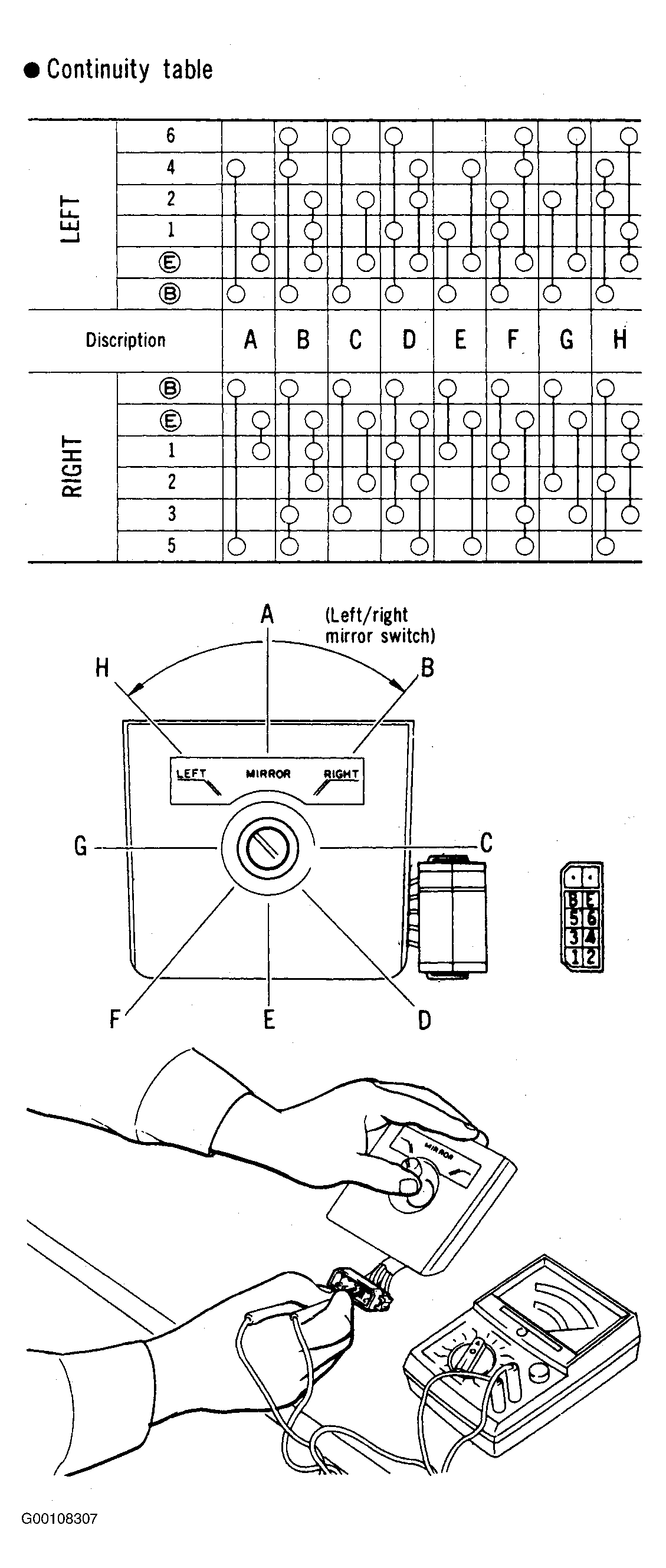

Fig 1: Mirror Switch Continuity Test
G00108307Courtesy of CHRYSLER CORP.
