Low-Reverse Band

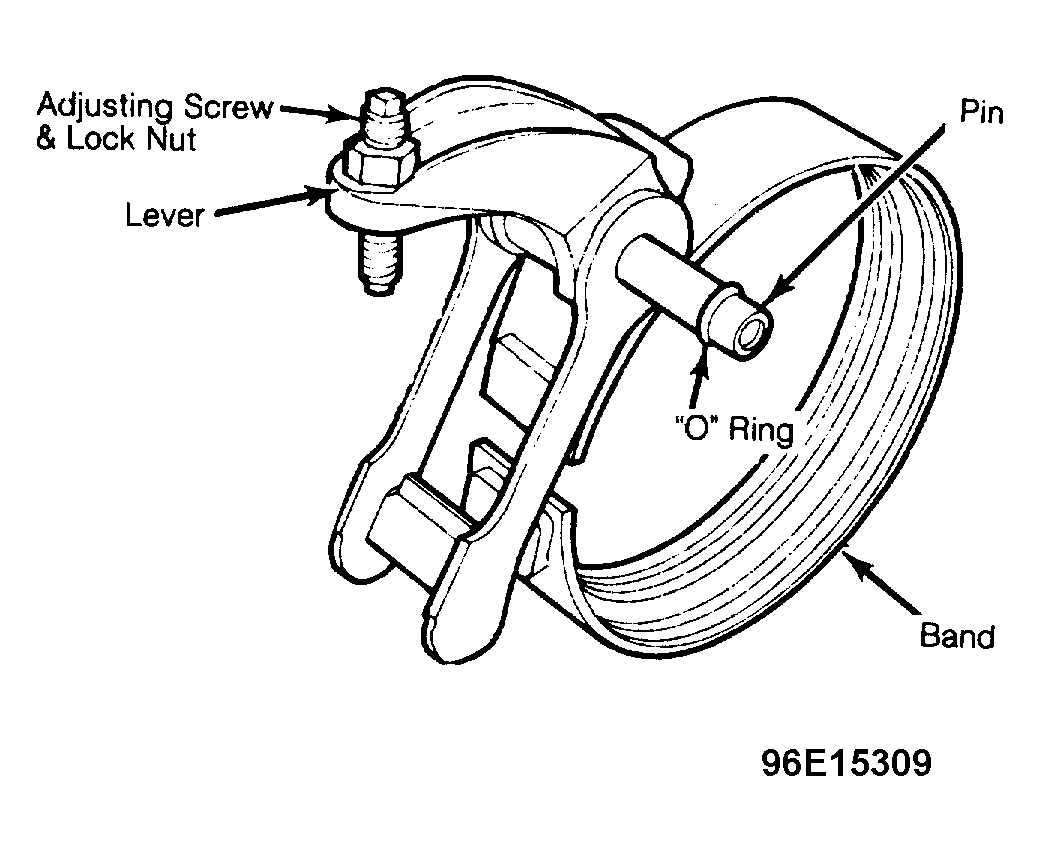

Position rear band in transmission case, install short strut, connect long link and anchor to band. Screw in band adjuster just enough to hold strut in place, then install low-reverse drum. Make sure long link and anchor are installed so as to provide running clearance for low-reverse drum. See Fig 1 .
