Mirror Motor

  1. Using an ohmmeter, test for continuity between terminals as shown. Replace or repair as necessary. See Fig 1 .

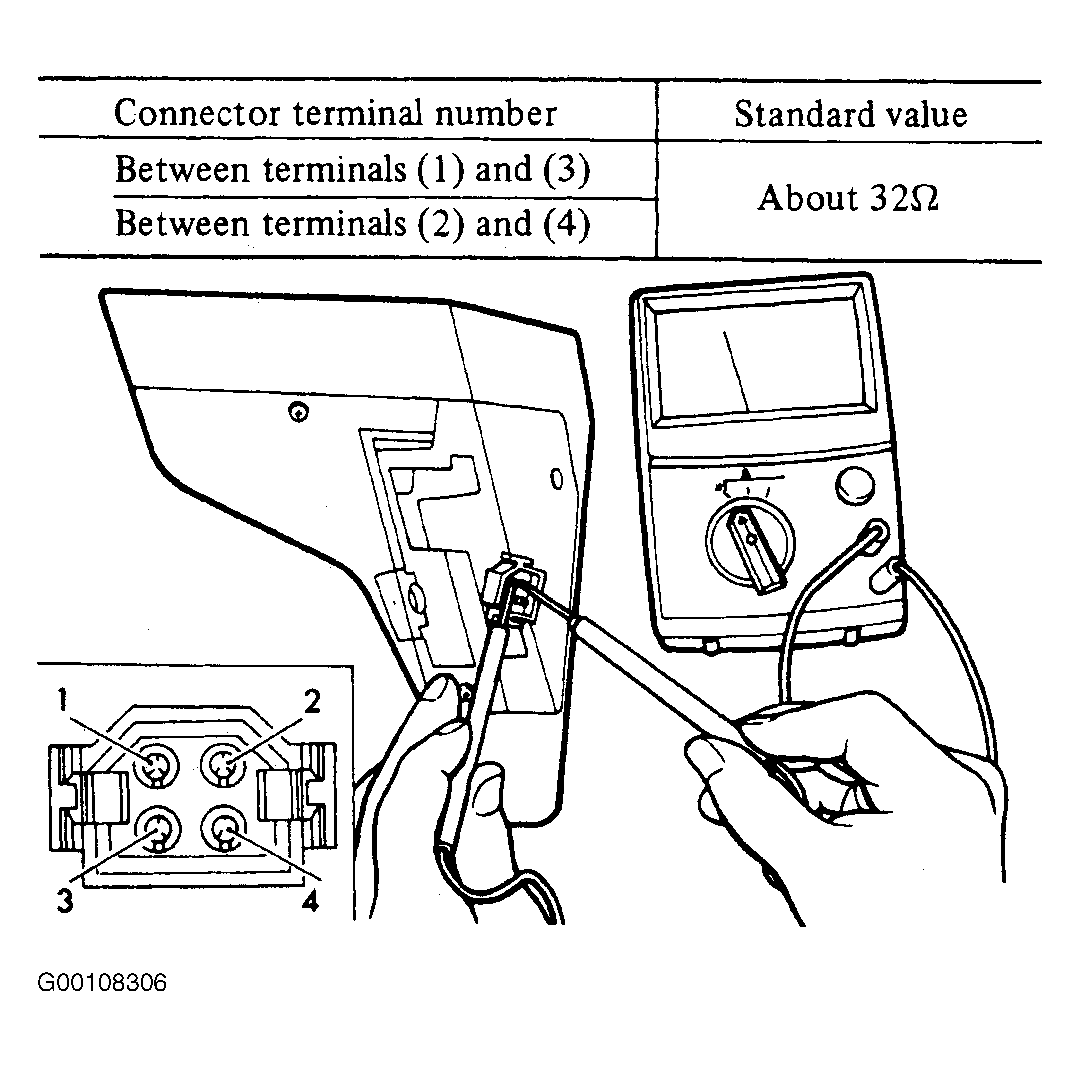

Fig 1: Measuring Mirror Motor Resistance
G00108306Courtesy of CHRYSLER CORP.
