Wiring Diagrams

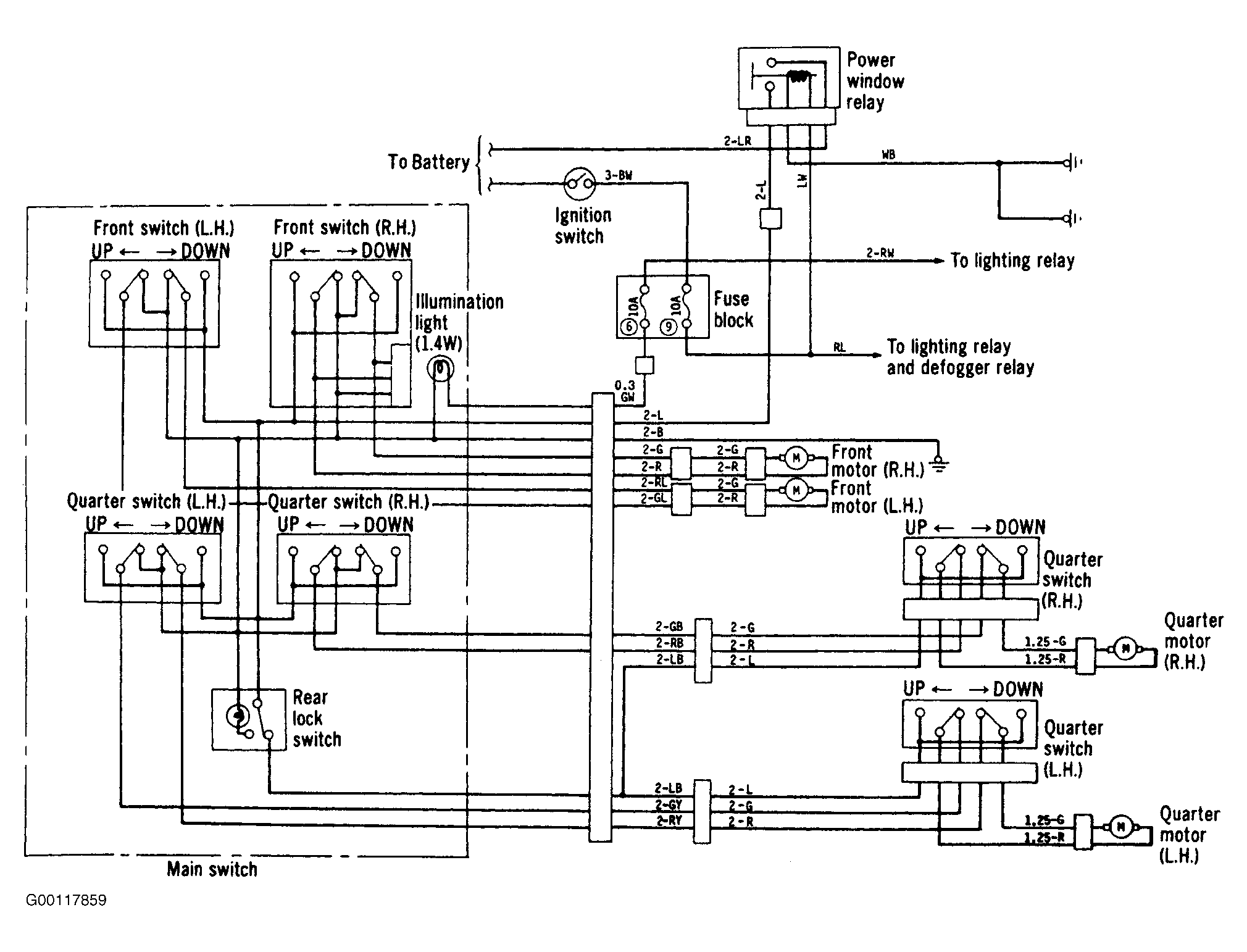

Fig 1: Power Window System Circuit Wiring Diagram
G00117859Courtesy of CHRYSLER CORP.
