Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|

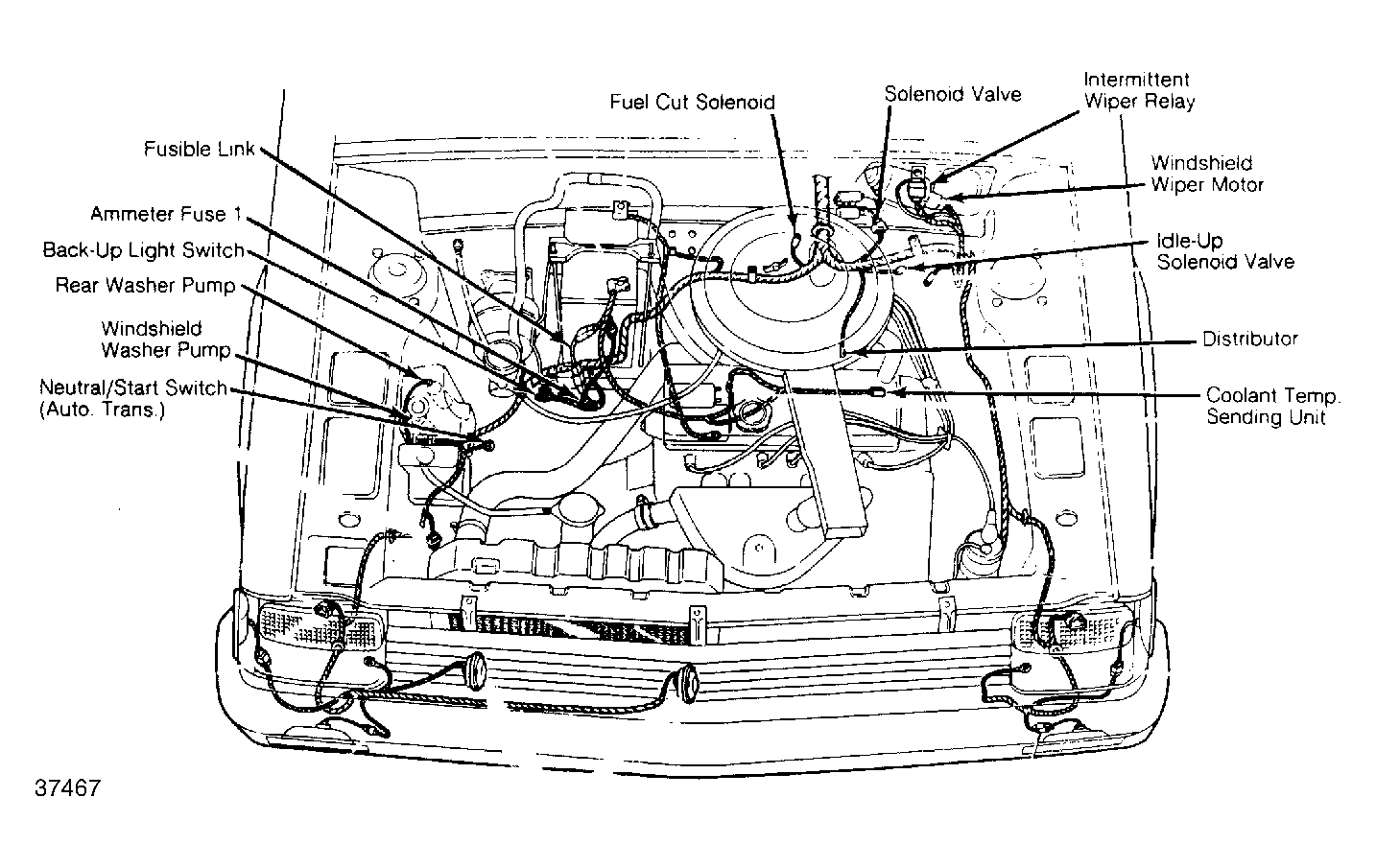

| Ammeter Fuse 1 | On left side wiring harness, below ignition coil. See Figure. |
| Fuse Block | Below instrument panel. |
| Fusible Link | On battery wire harness. See Figure. |
| Ignition Igniter | Inside distributor, mounted to pick-up coil. |
| Radio Noise Suppression Capacitors | Above ignition coil and at rear of alternator. |
| Relay Block | Behind driver's kick panel. |
