Wiring Diagrams

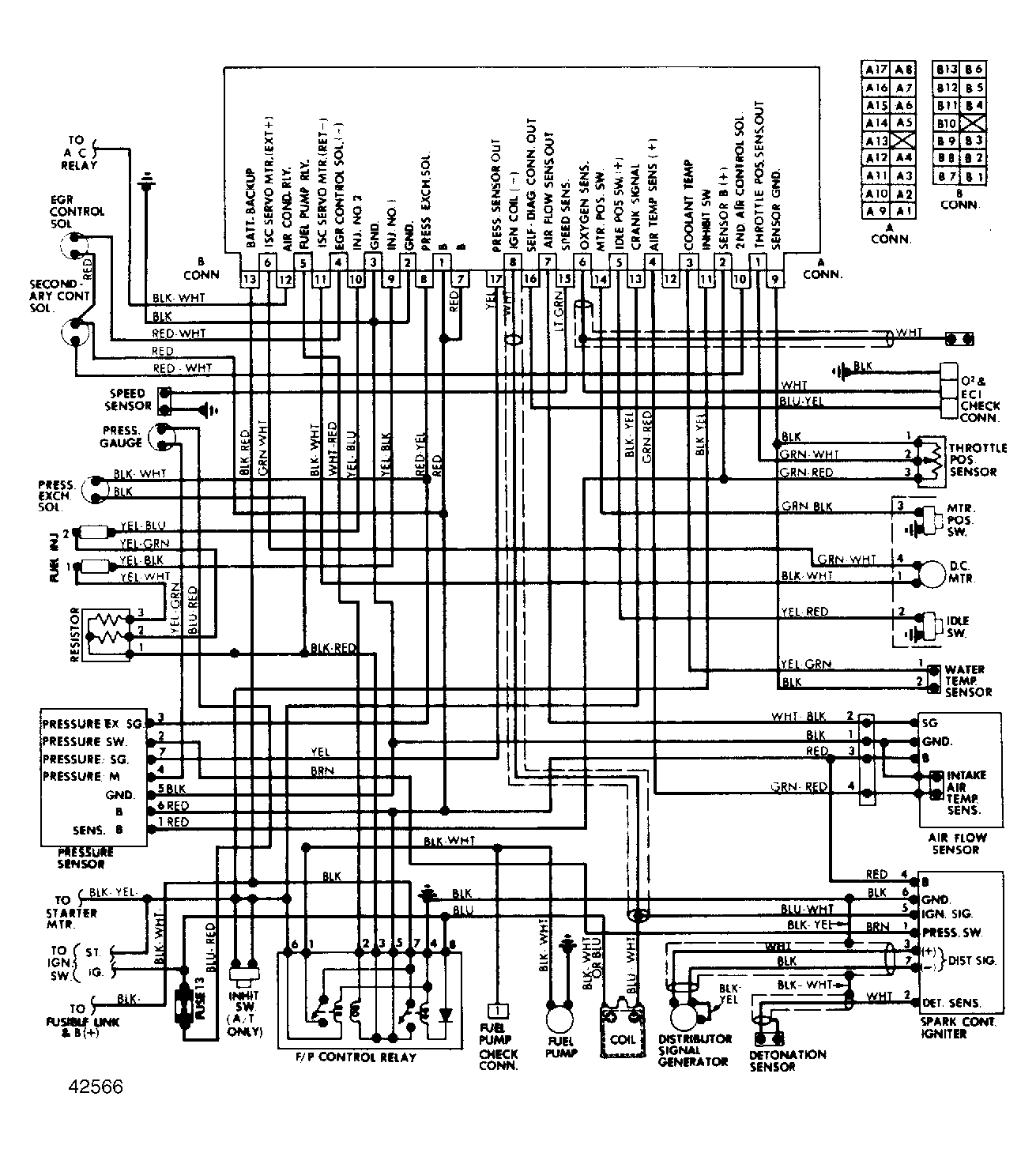

Fig 1: ECI System Wiring Diagram (Except Intercooled Models)
G42566

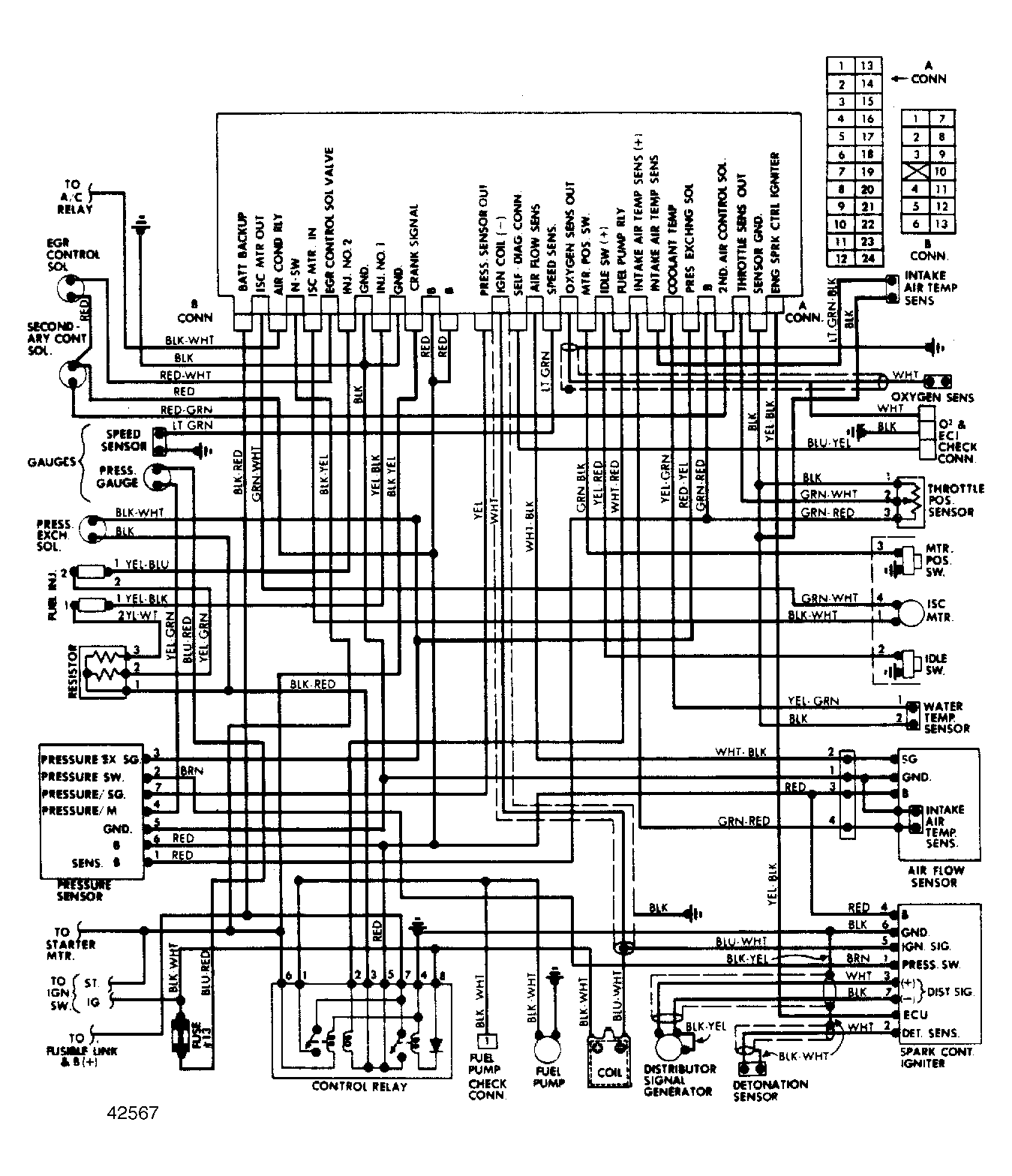

Fig 2: ECI System Wiring Diagram (Intercooled Models)
G42567
