Feedback Carburetor System
›
Testing
›
Ecu Terminal Locations
Ecu Terminal Locations

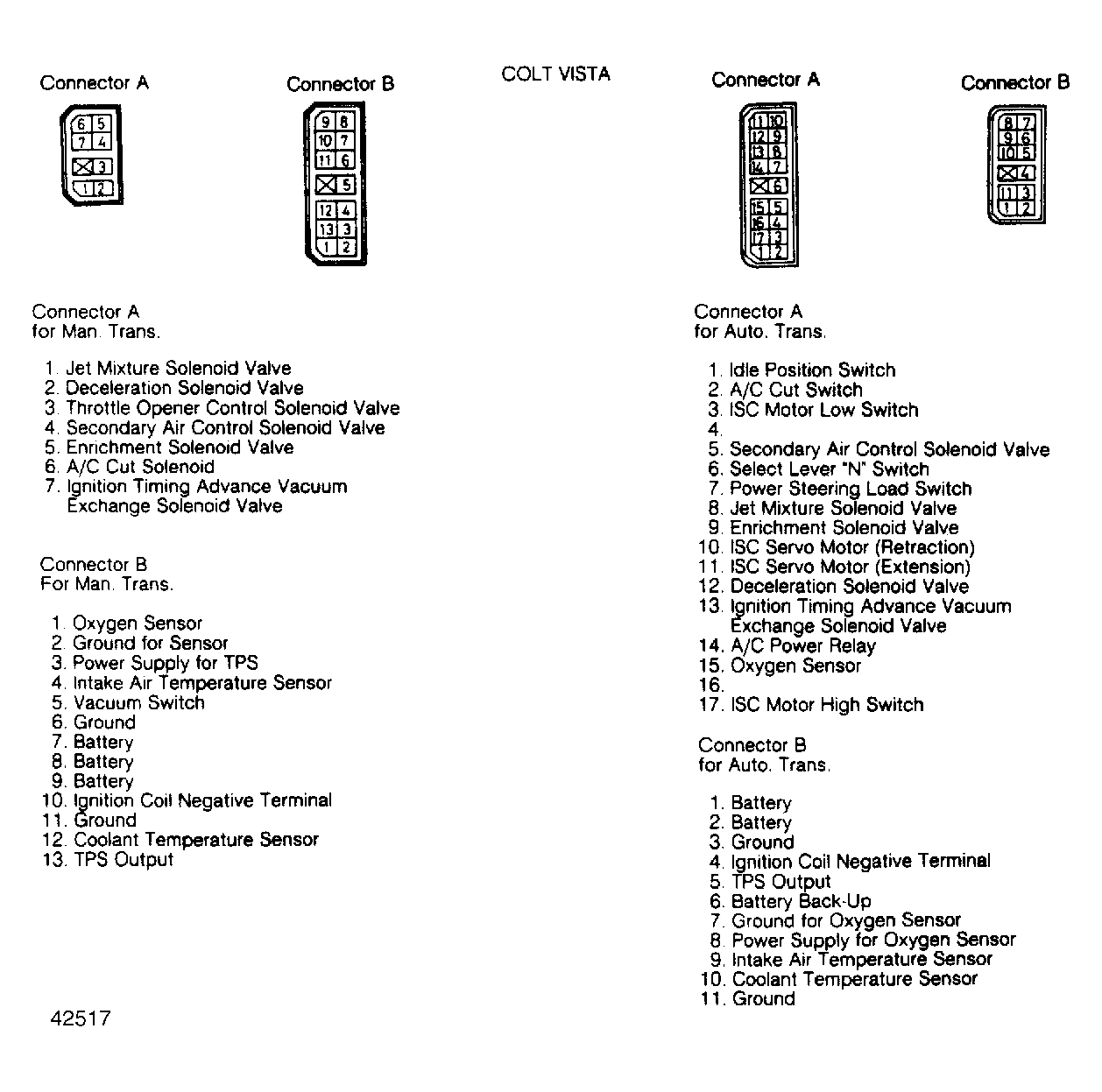

Fig 1: Colt Vista ECU Connector Terminal Locations
