ECI System Check Charts

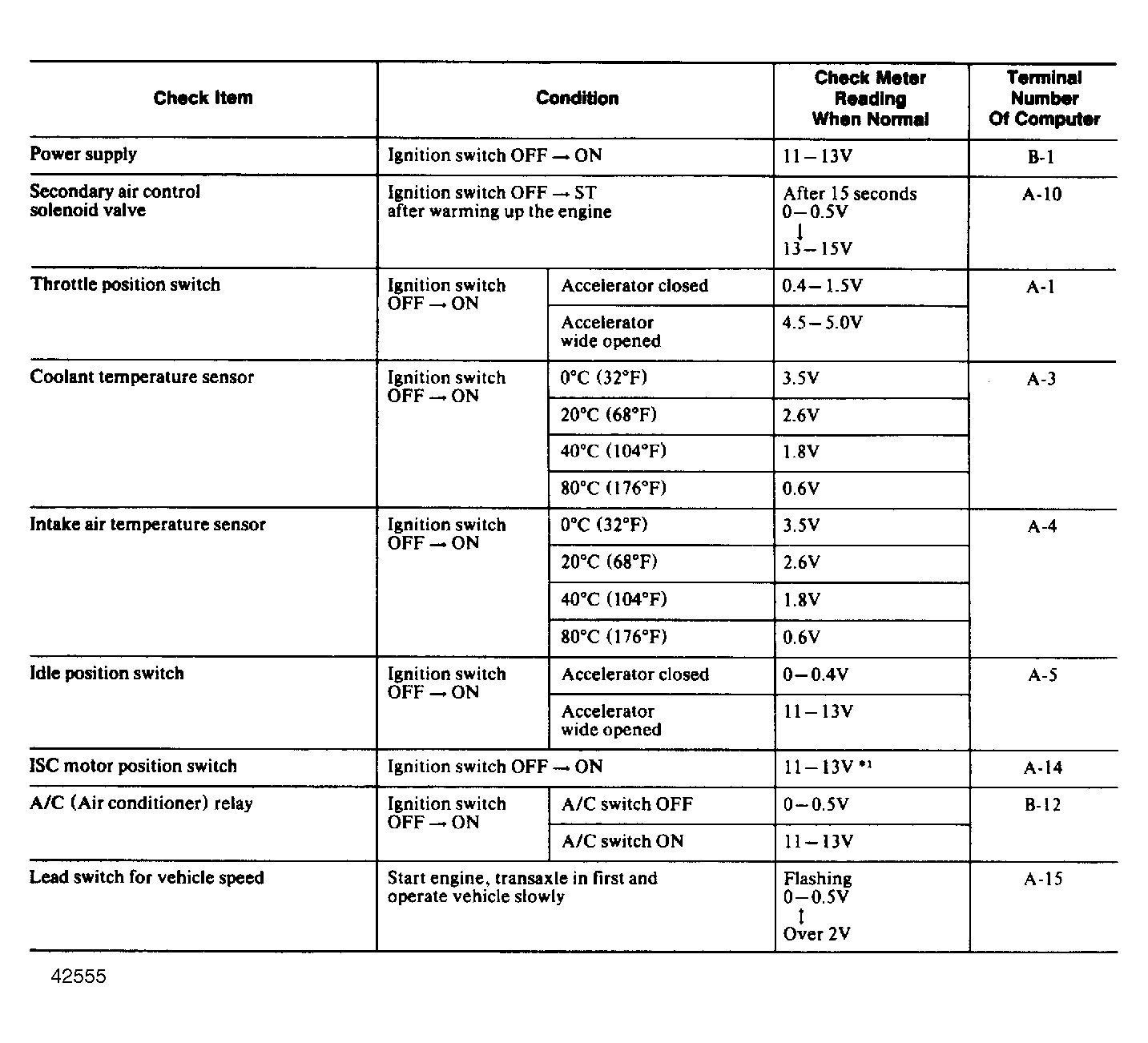

Fig 1: Chrysler Motors Conquest ECI Check Chart (1 of 2)

G42555

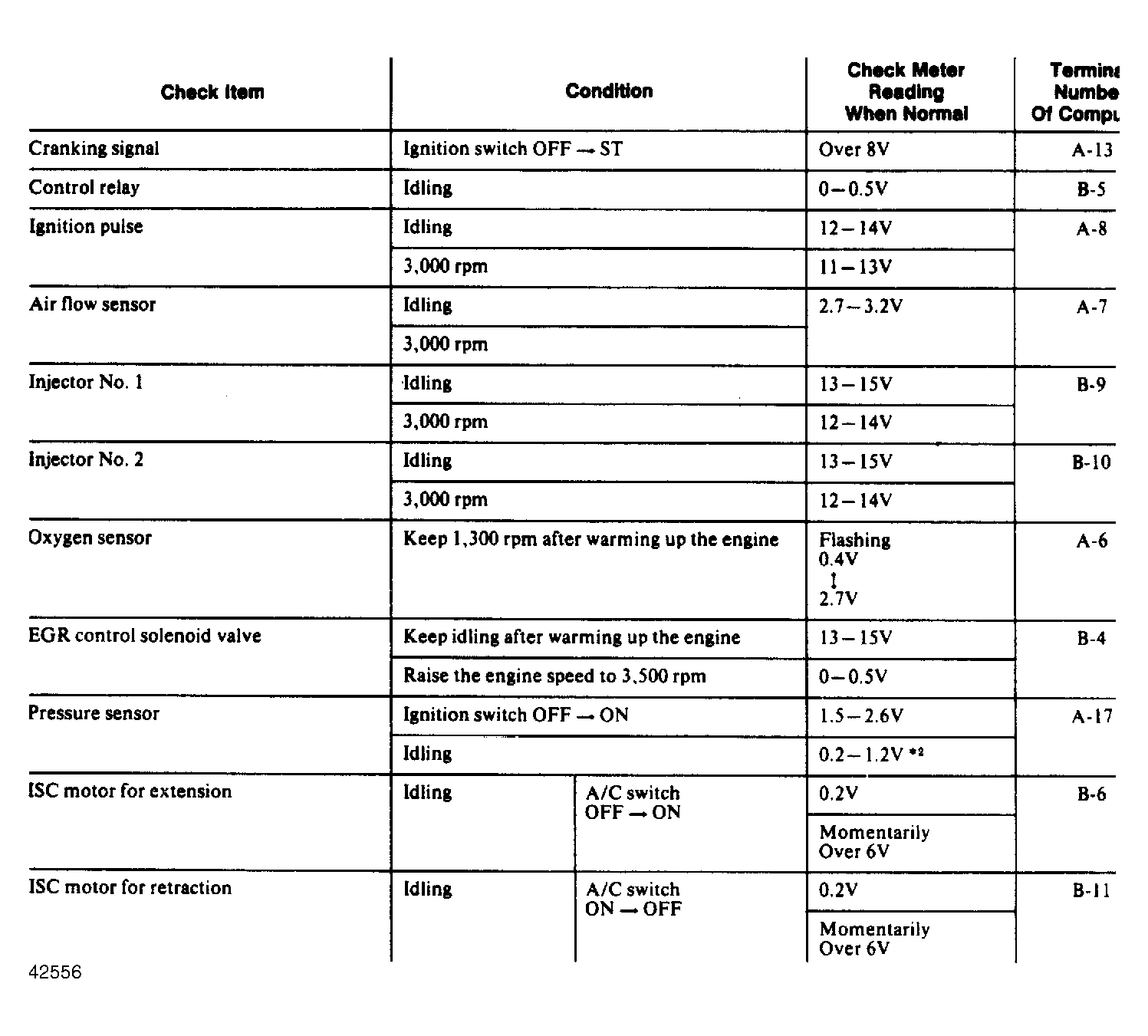

Fig 2: Chrysler Motors Conquest ECI Check Chart (2 of 2)

G42556

Fig 3: Intercooled Turbo Models ECI Check Chart (1 of 2)

G42559

Fig 4: Intercooled Turbo Models ECI Check Chart (2 of 2)

G42560
