Ecu Connector Pin Location & Functions

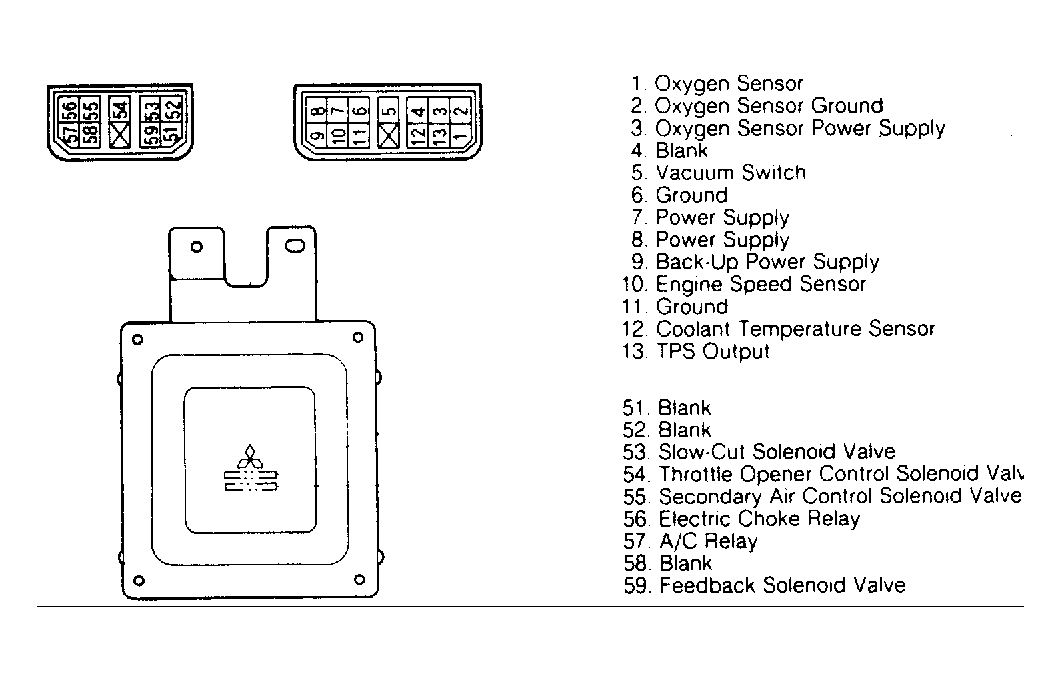

Fig 1: ECU Connector Pin Location & Function (Raider & Ram-50)

G61368

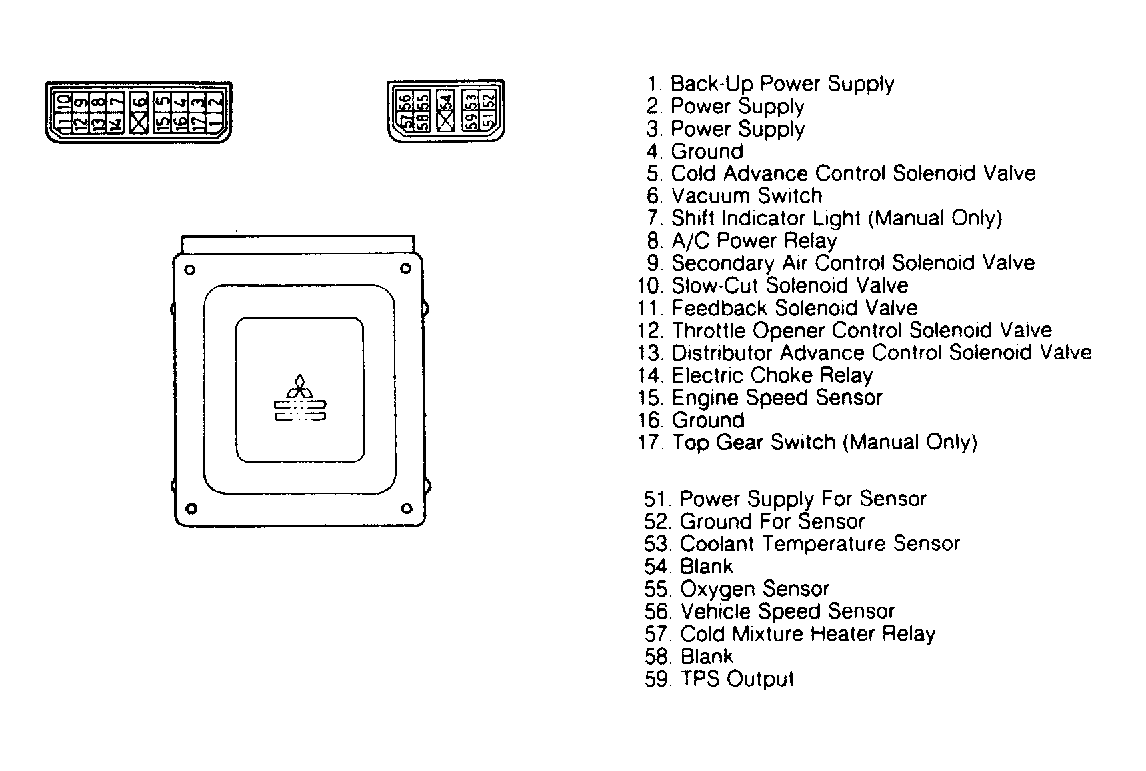

Fig 2: ECU Connector Pin Location & Function (Colt)

G61367
