Wiring Diagrams

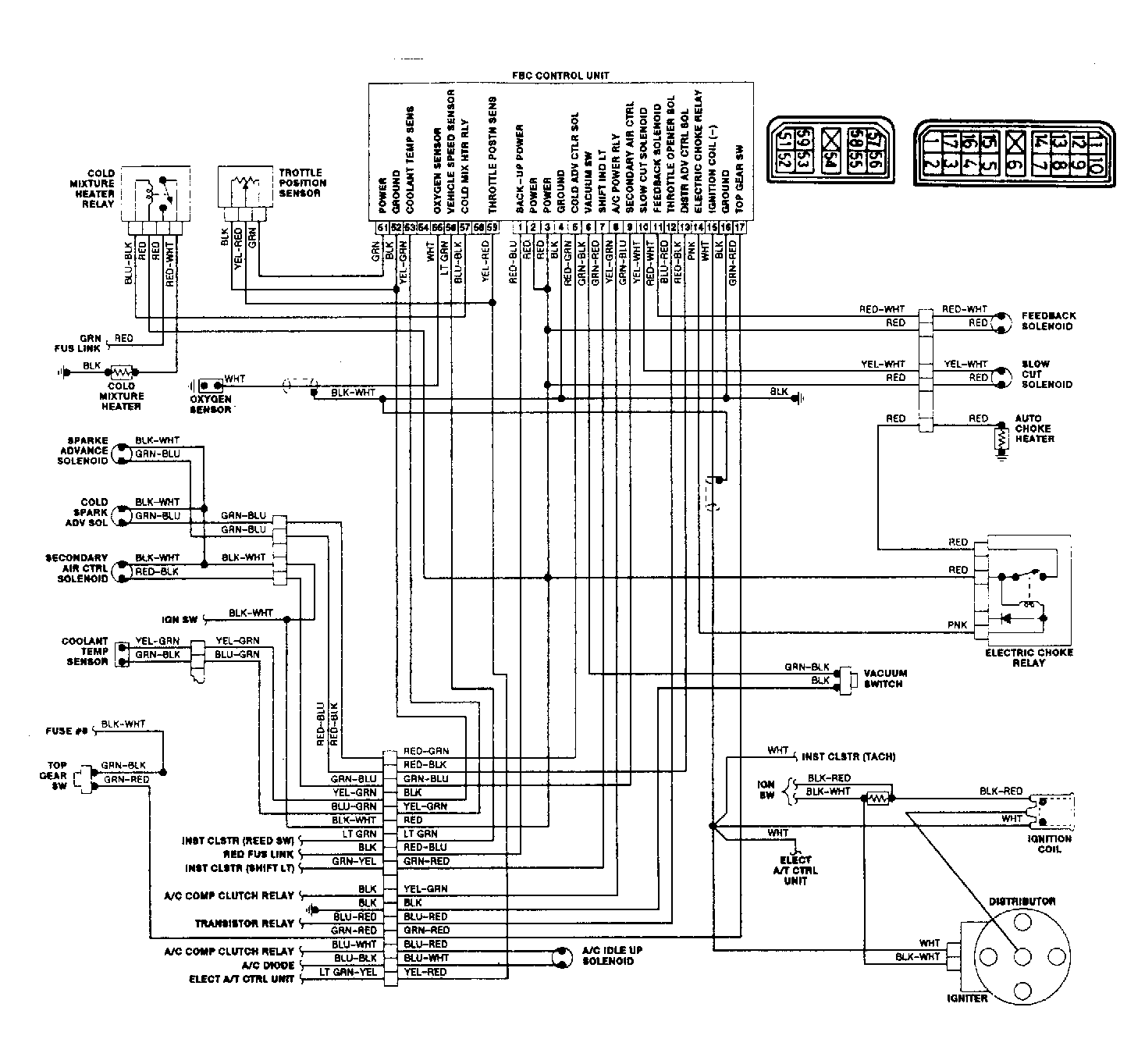

Fig 1: Wiring Diagram (Colt)

G94420

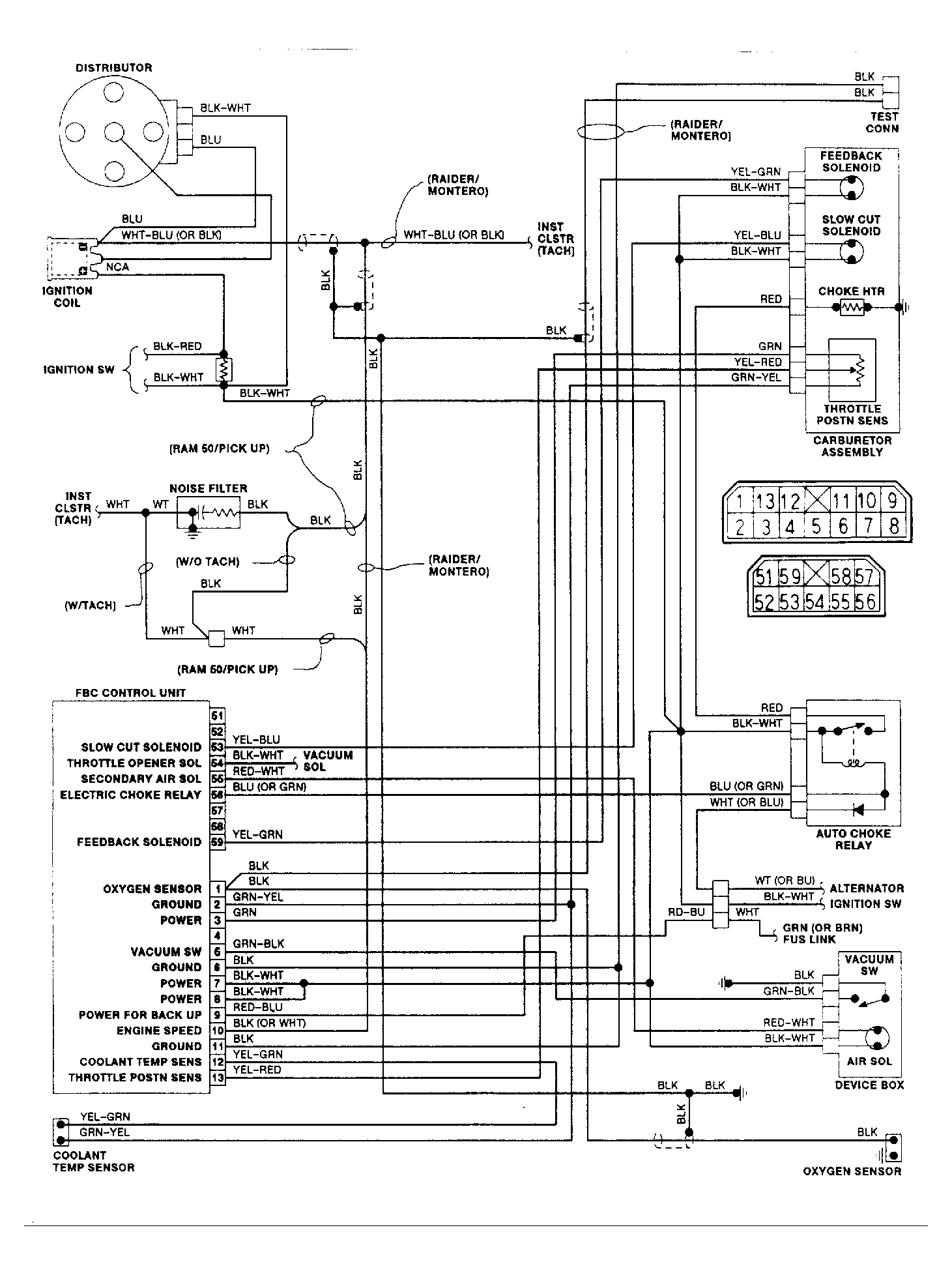

Fig 2: Wiring Diagram (Raider & Ram-50)

G94423
