Fuel Pressure Regulator

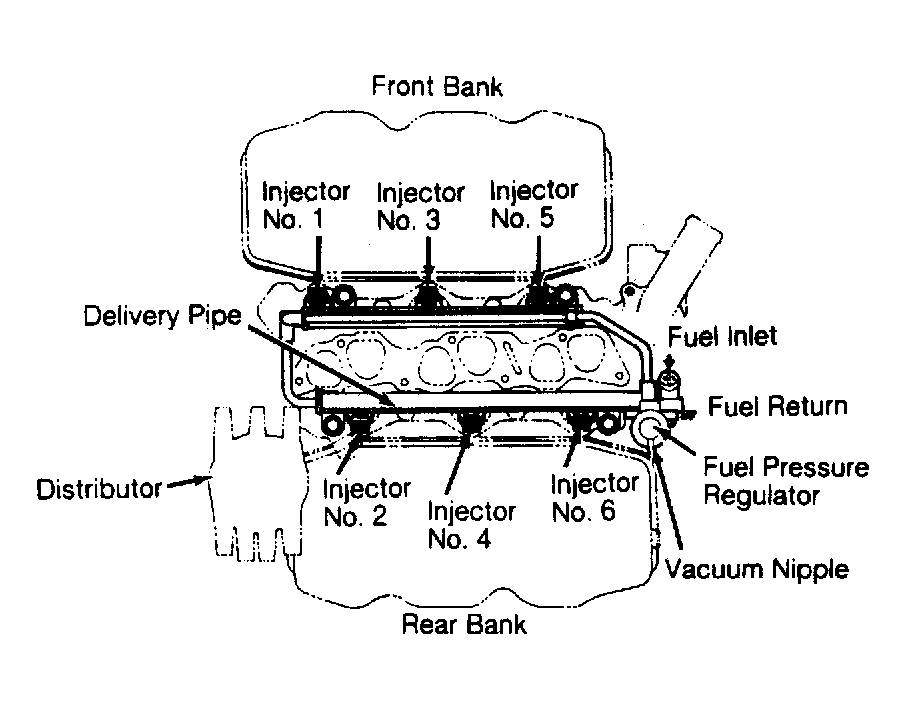

Fuel pressure regulator, located on fuel delivery pipe, maintains a constant pressure drop across injectors throughout all engine operating conditions. Fuel flows from top of fuel injectors to pressure regulator. Regulator is a diaphragm-operated relief valve with pressure constantly applied.
