Mirror Switch Test

Remove power mirror switch from mounting position. Disconnect wiring harness at switch connector. Using a continuity tester or an ohmmeter, test for continuity (no resistance) between the terminals of the switch as shown in the MIRROR SWITCH CONTINUITY chart for appropriate body style (See Fig 1 -Fig 6 ). If results shown in the chart are not obtained, replace the switch.

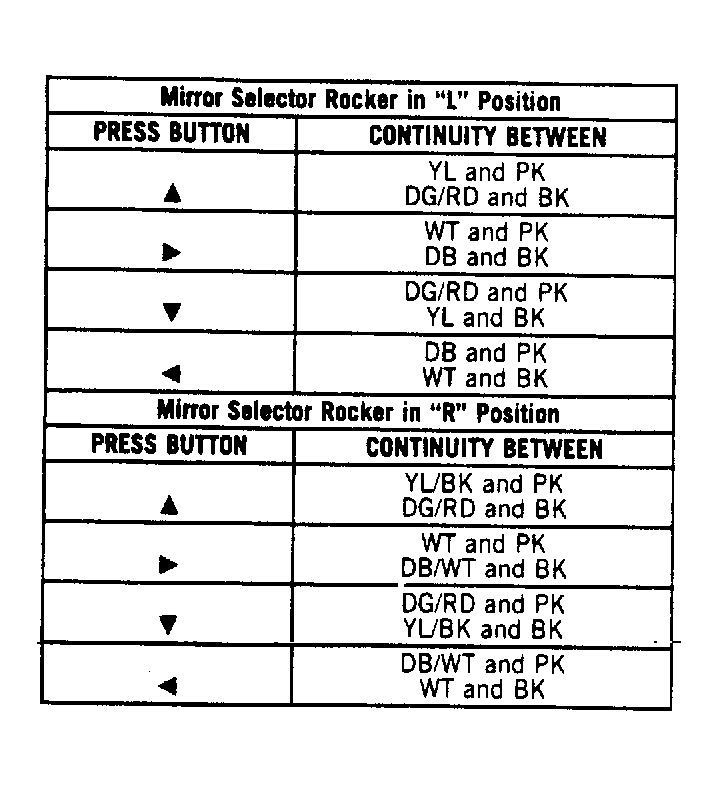

Fig 1: LeBaron GTS & Lancer Mirror Switch Continuity Chart

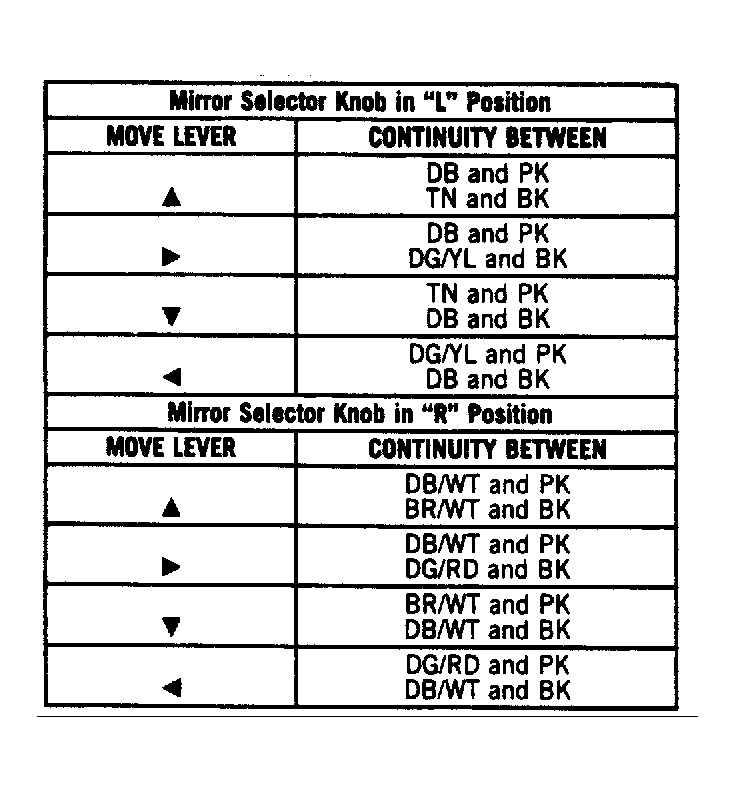

Fig 2: Aries, Caravelle, LeBaron (4-Door), New Yorker Turbo, Reliant, Town & Country & 600 Mirror Switch Continuity Chart

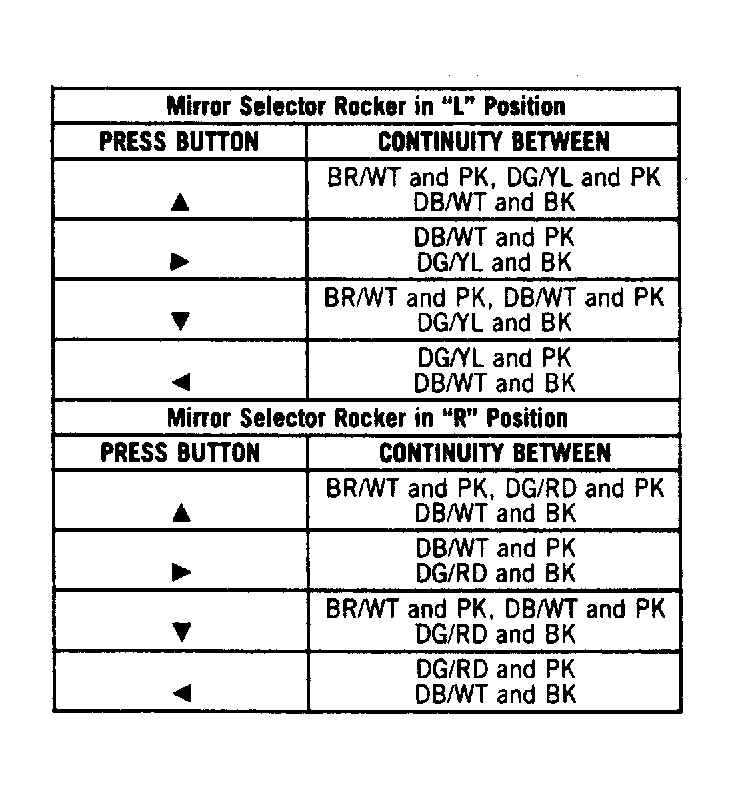

Fig 3: LeBaron (Coupe & Convertible) Mirror Switch Continuity Chart

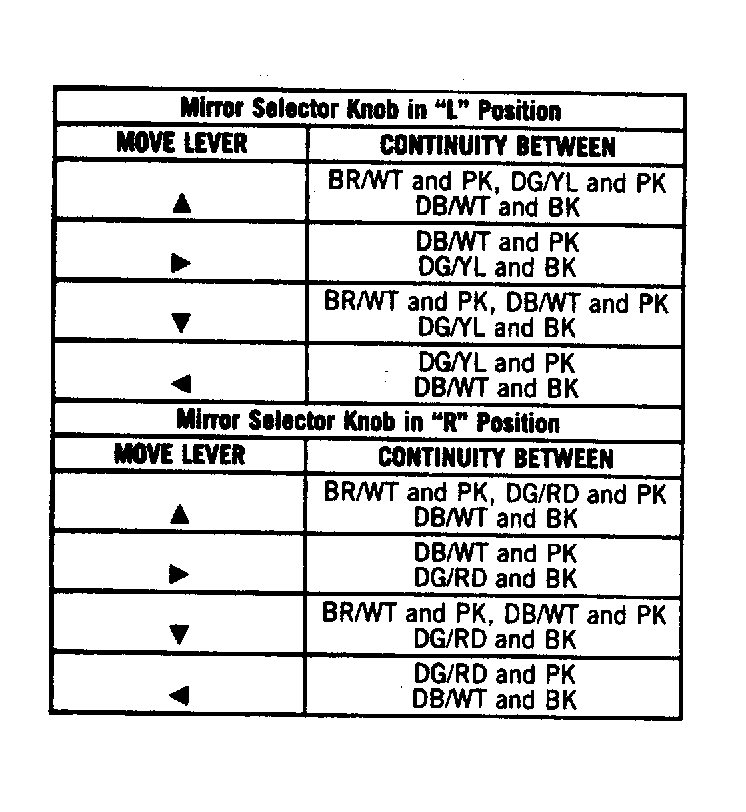

Fig 4: Daytona, Shadow & Sundance Mirror Switch Continuity Chart

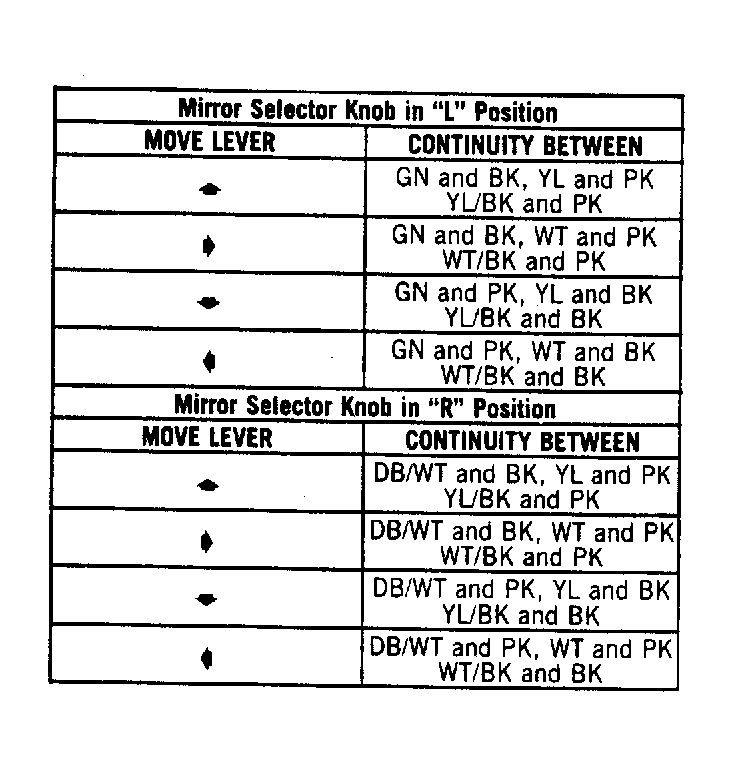

Fig 5: New Yorker & Dynasty Mirror Switch Continuity Chart

Fig 6: Diplomat, Fifth Avenue & Gran Fury Mirror Switch Continuity Chart
