2.5L CEC System
›
Wiring Diagrams
Wiring Diagrams

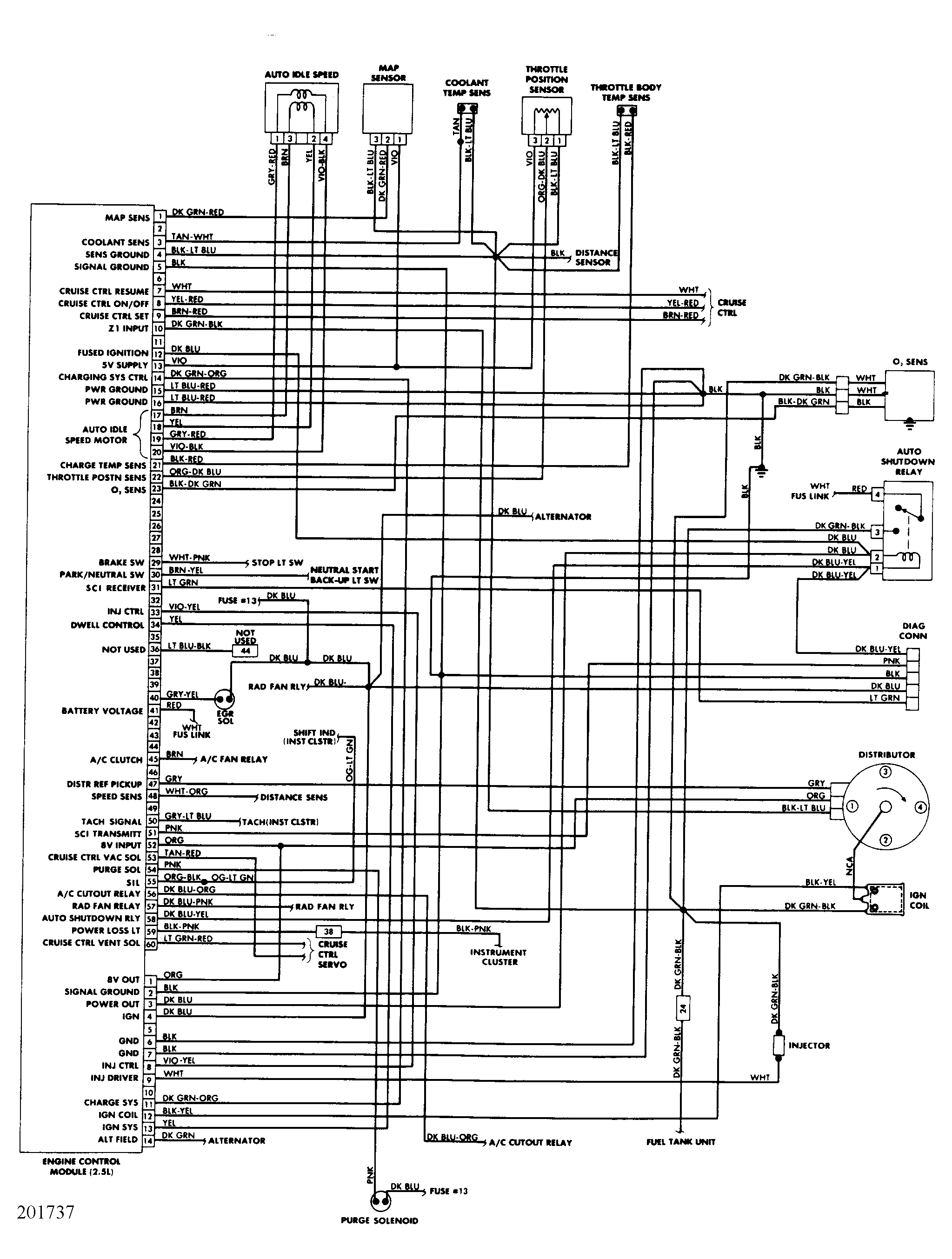

Fig 1: Engine Control System Wiring Diagram (2.5L Van/Wagon)
