3.0L CEC System
›
Wiring Diagrams
Wiring Diagrams

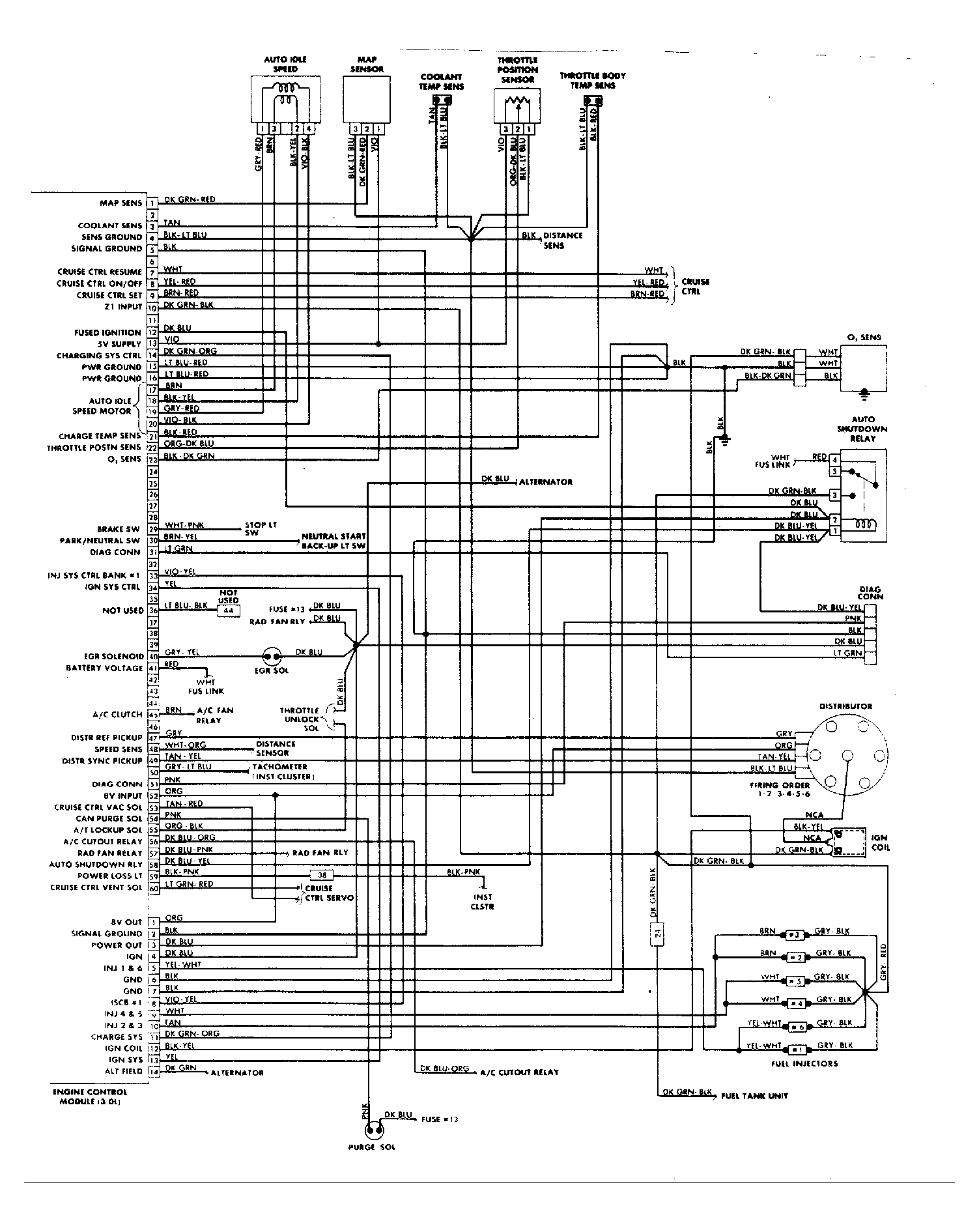

Fig 1: Caravan, Mini Ram Van & Voyager 3.0L Wiring Diagram
