Continuity Check

On all models equipped with a wiper relay except Conquest, remove the relay from the wiper motor bracket. Ensure continuity is present between terminals No. 2-5. See Fig 1 .

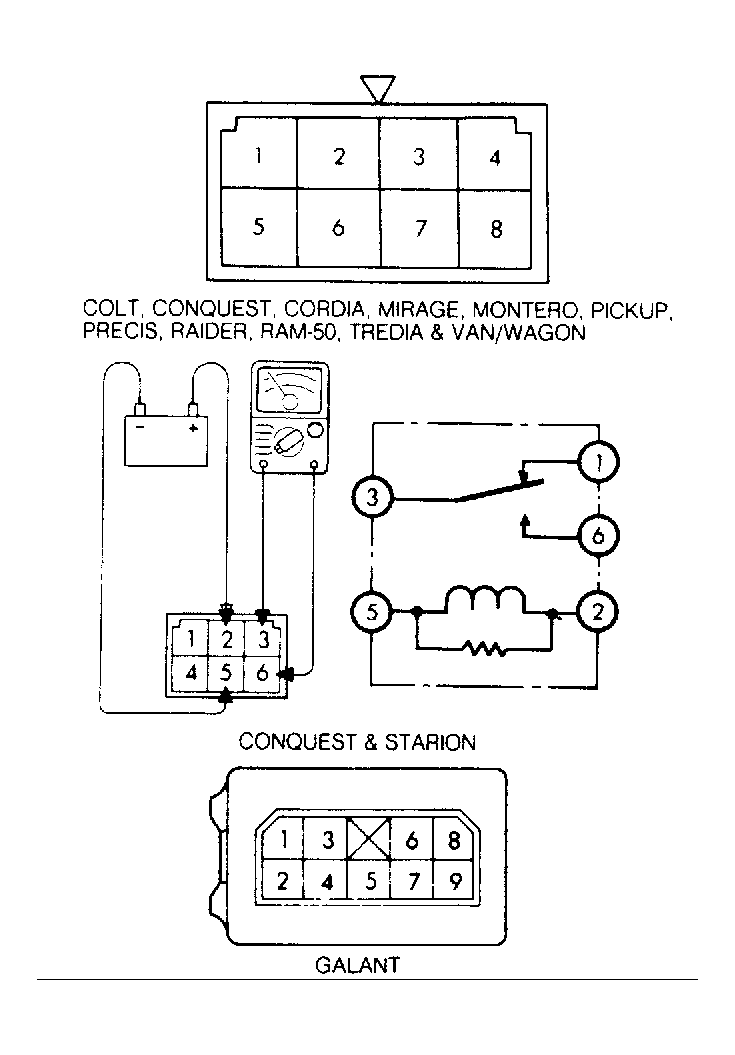

Fig 1: Wiper Relay Terminal Number Location
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
On Conquest, ensure continuity is present between terminals No. 2-5 and 1-3 when no voltage is applied to relay. Apply battery voltage to relay terminal No. 2 and ground to relay terminal No. 5. Continuity should be present between terminals No. 3-6.
