Ch-4, Checking For Fault Code 47

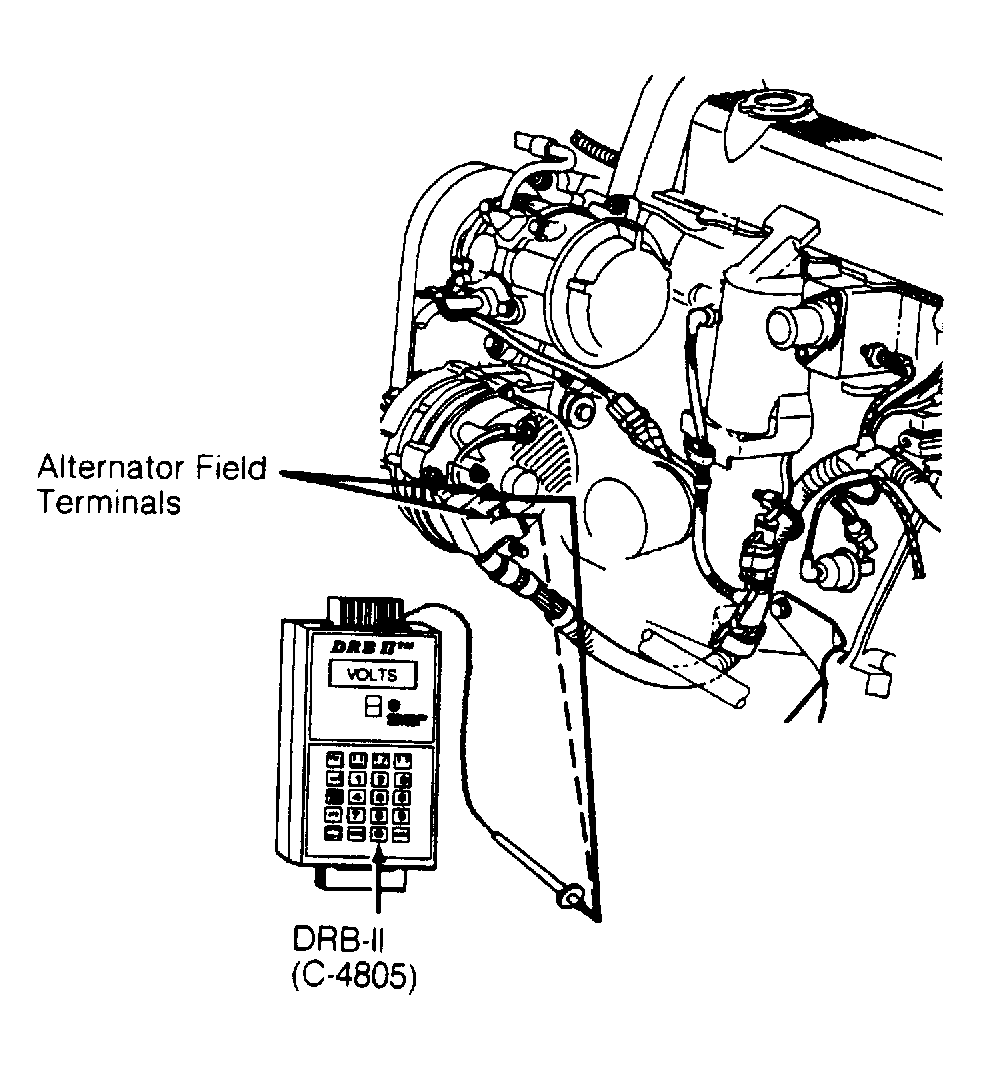

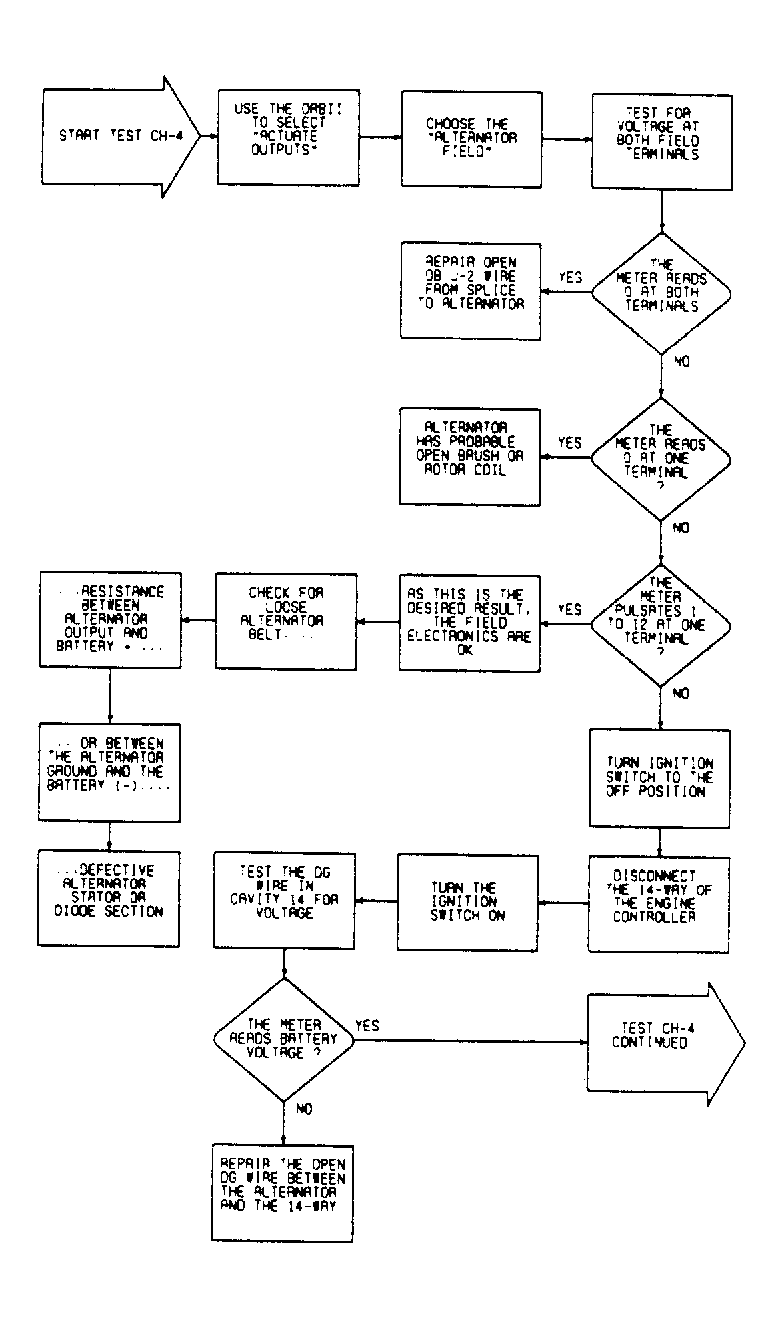

Fig 1: CH-4, Checking For Fault Code 47 (1 of 4)

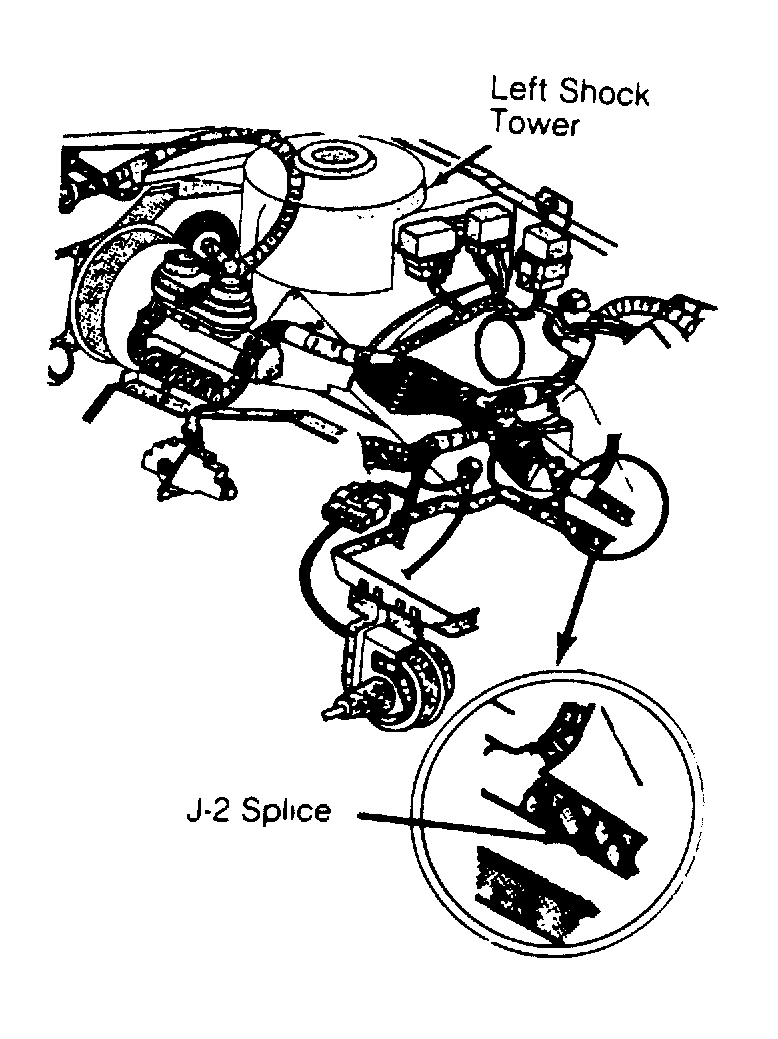

Fig 2: CH-4, Checking For Fault Code 47 (2 of 4)

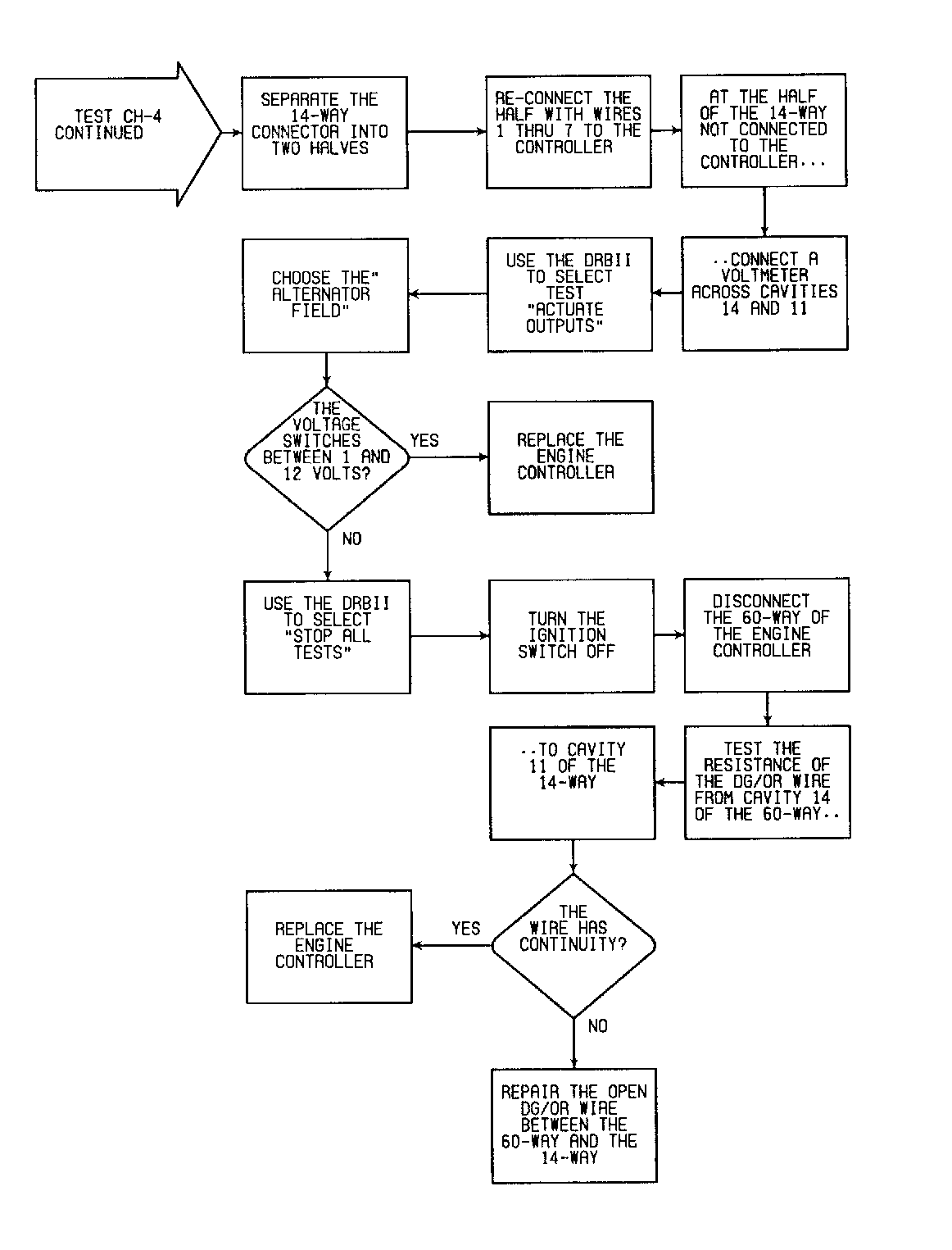

Fig 3: CH-4, Checking For Fault Code 47 (3 of 4)

Fig 4: CH-4, Checking For Fault Code 47 (4 of 4)
