VER-2, DRIVEABILITY Verification

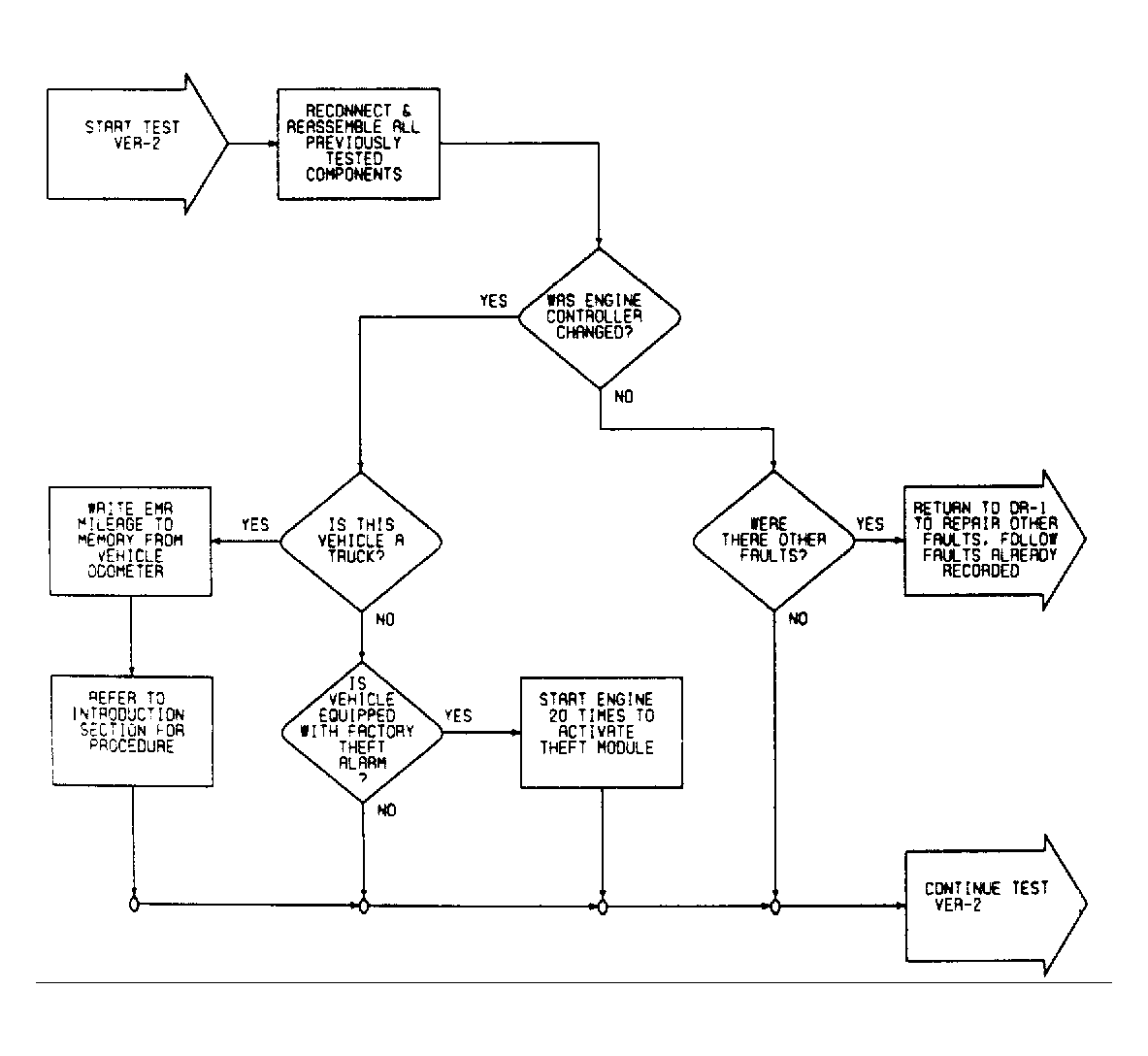

Fig 1: VER-2, Driveability Verification (1 of 2)

G107292

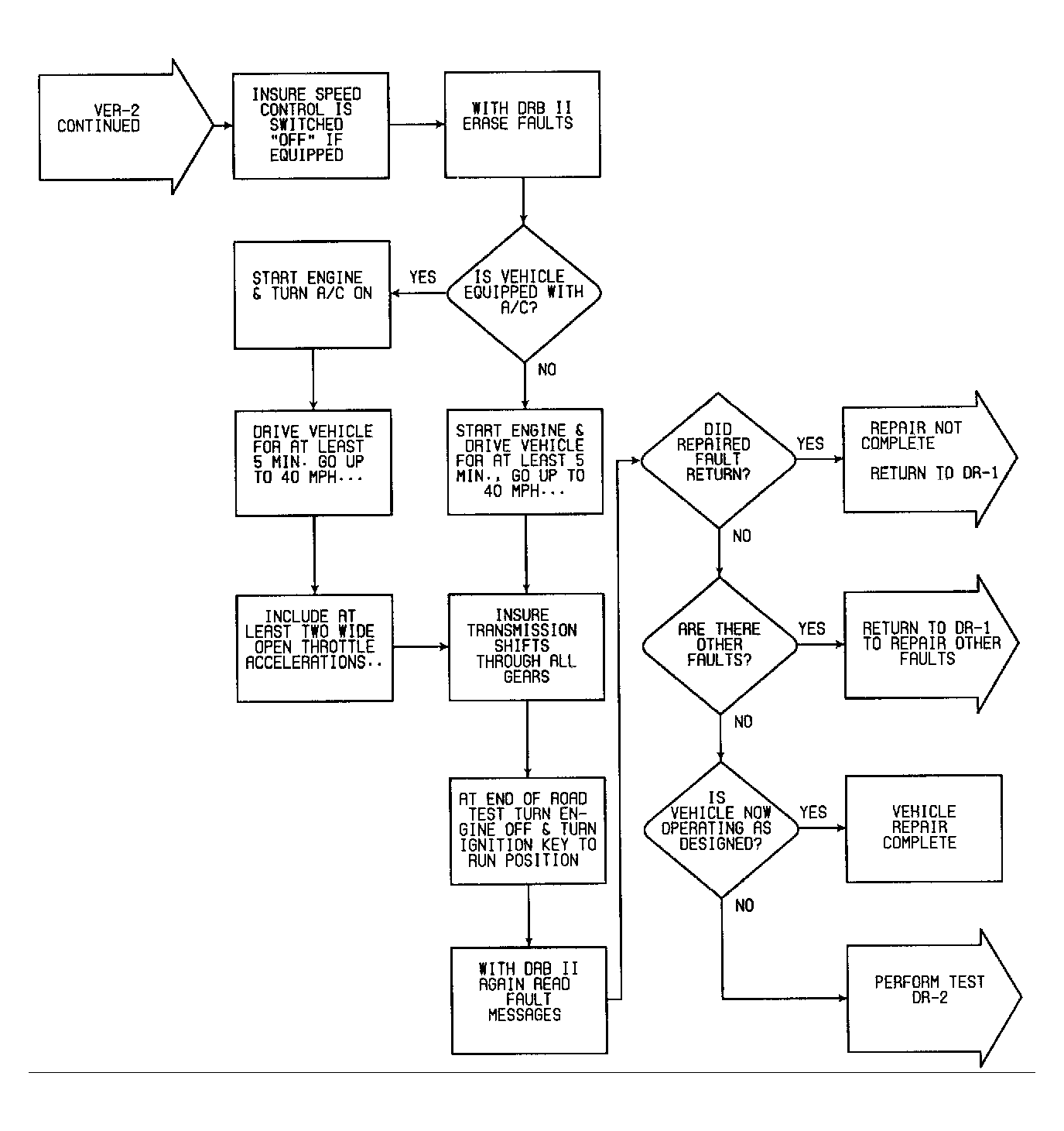

Fig 2: VER-2, Driveability Verification (2 of 2)

G107293
