2.2L/2.5L SPFI Tests/Code
›
No Start Tests
›
NS-10, Checking System Faults
NS-10, Checking System Faults

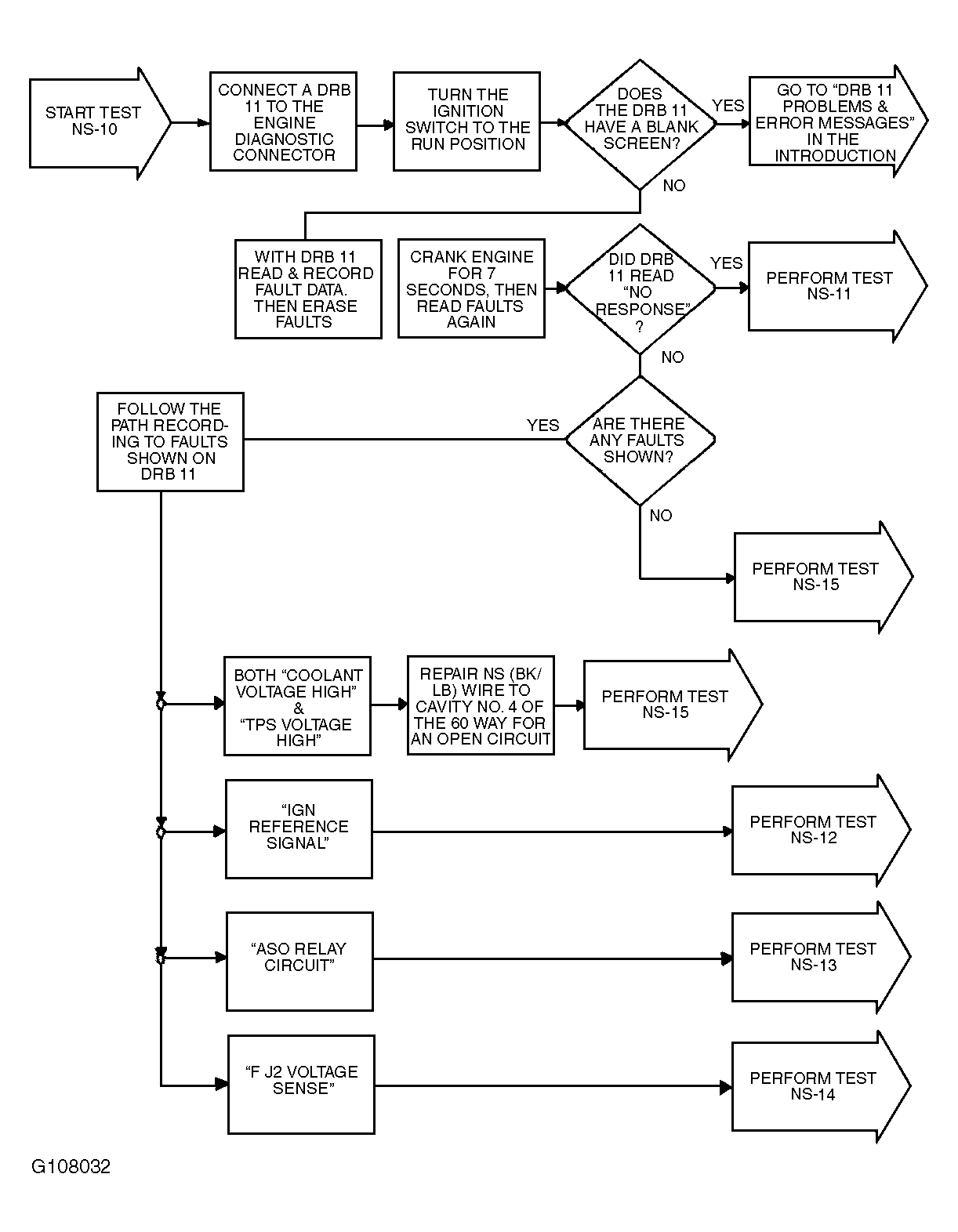

Fig 1: NS-10, Checking System Faults
