2.2L/2.5L SPFI Tests/Code
›
No Start Tests
›
NS-2, Checking Injector Flow & Fuel Control Faults
NS-2, Checking Injector Flow & Fuel Control Faults

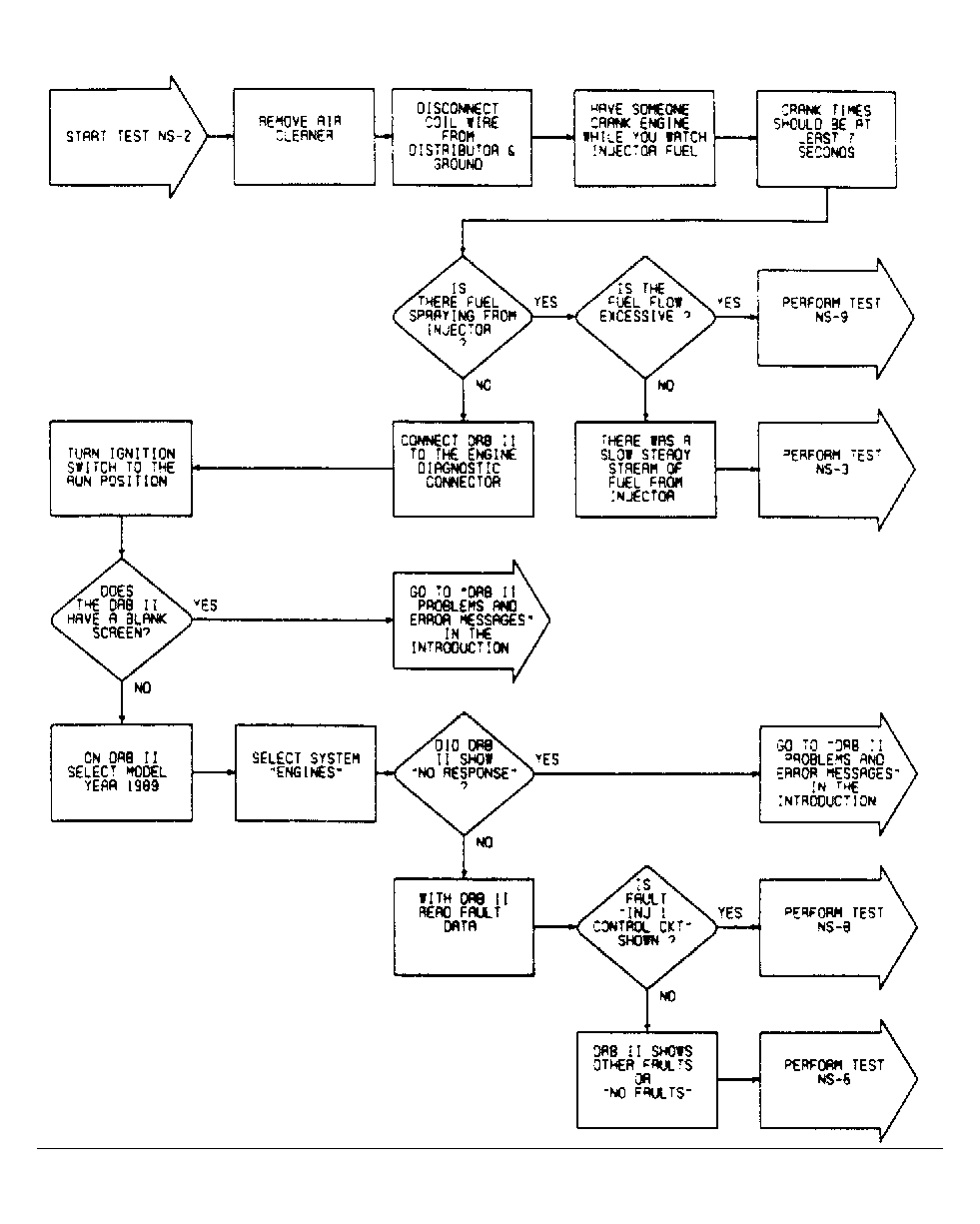

Fig 1: NS-2, Checking Injector Flow & Fuel Control Faults
