SP-4, Testing Brake Switch Circuit

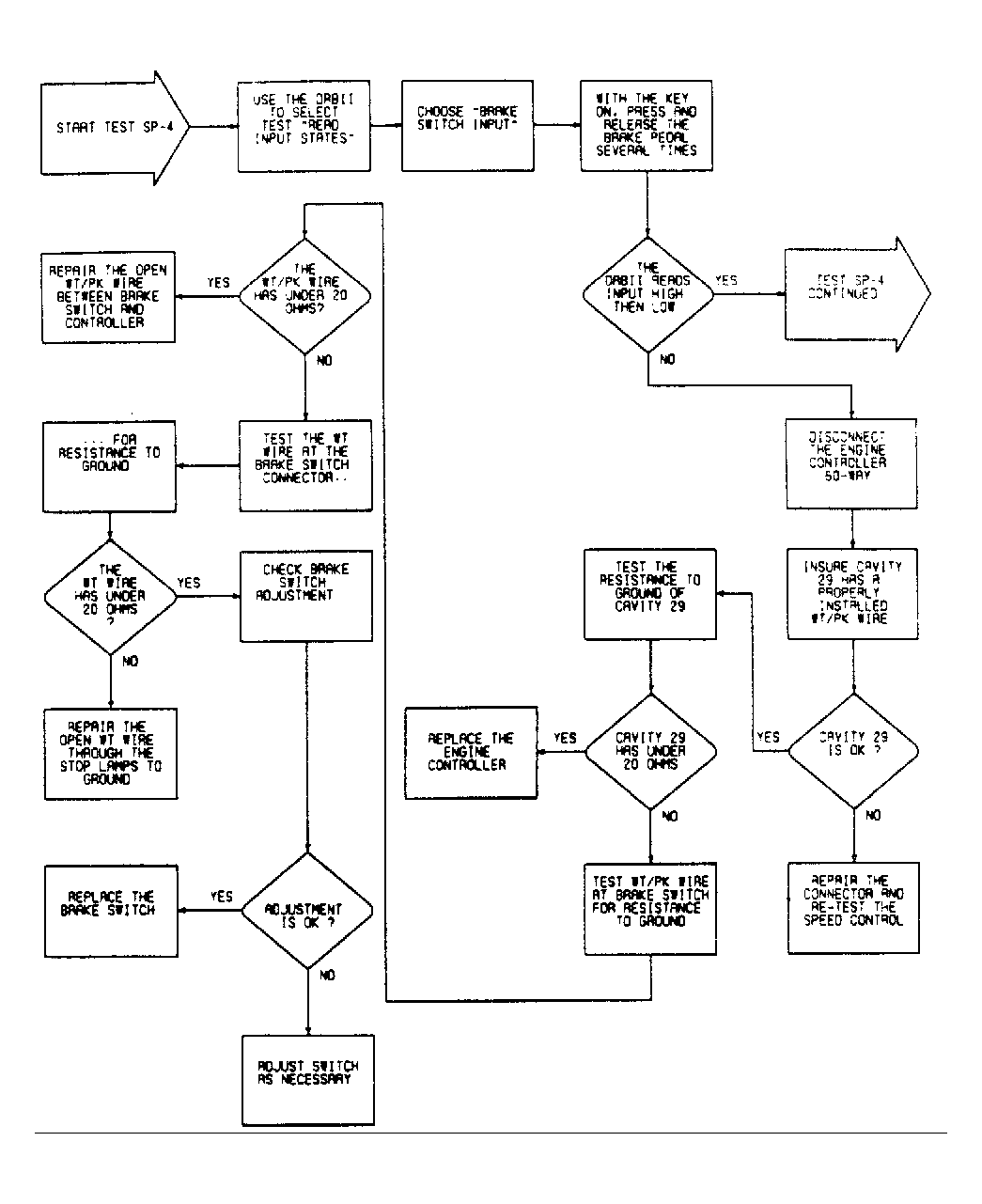

Fig 1: SP-4, Testing Brake Switch Circuit (1 of 4)

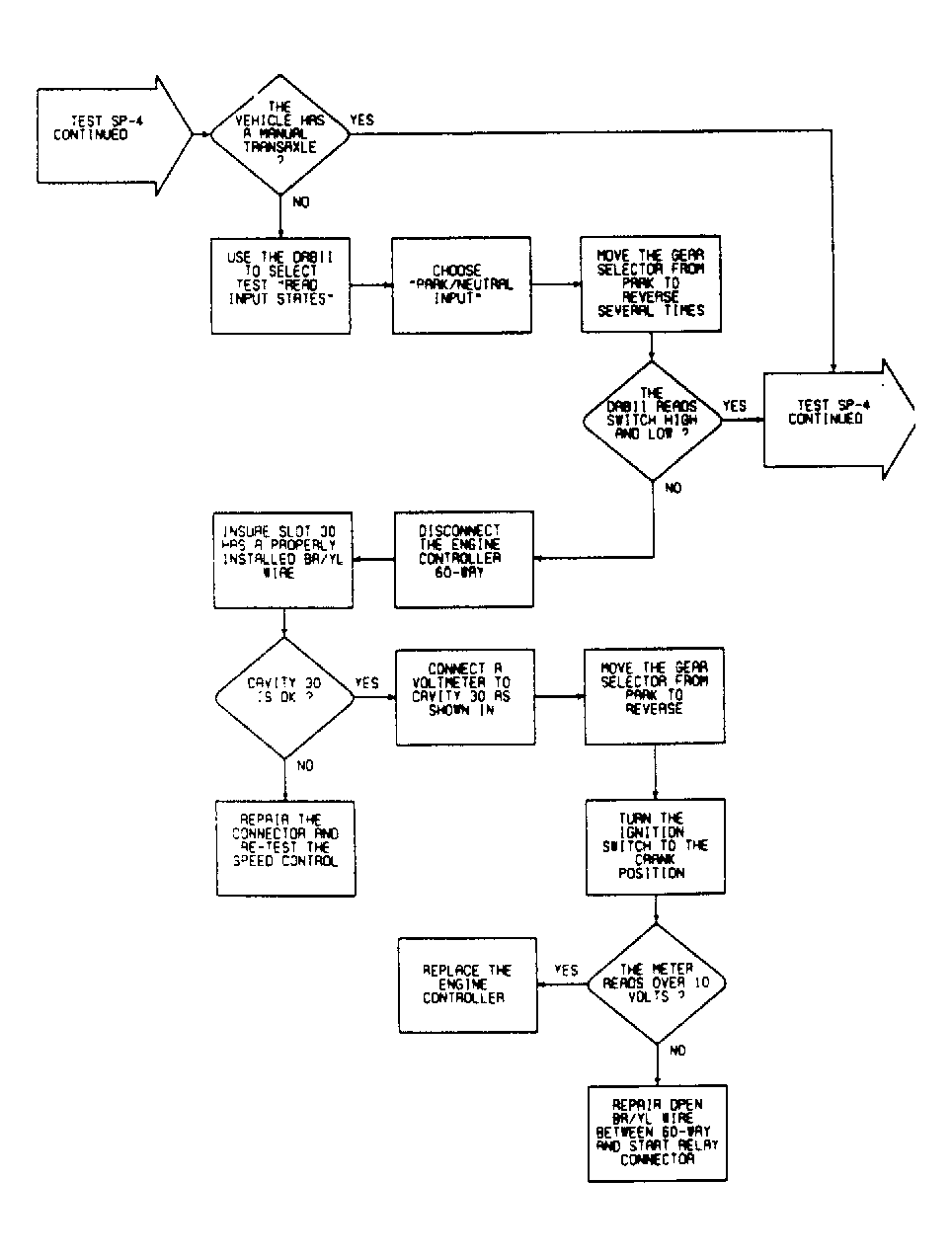

Fig 2: SP-4, Testing Brake Switch Circuit (2 of 4)

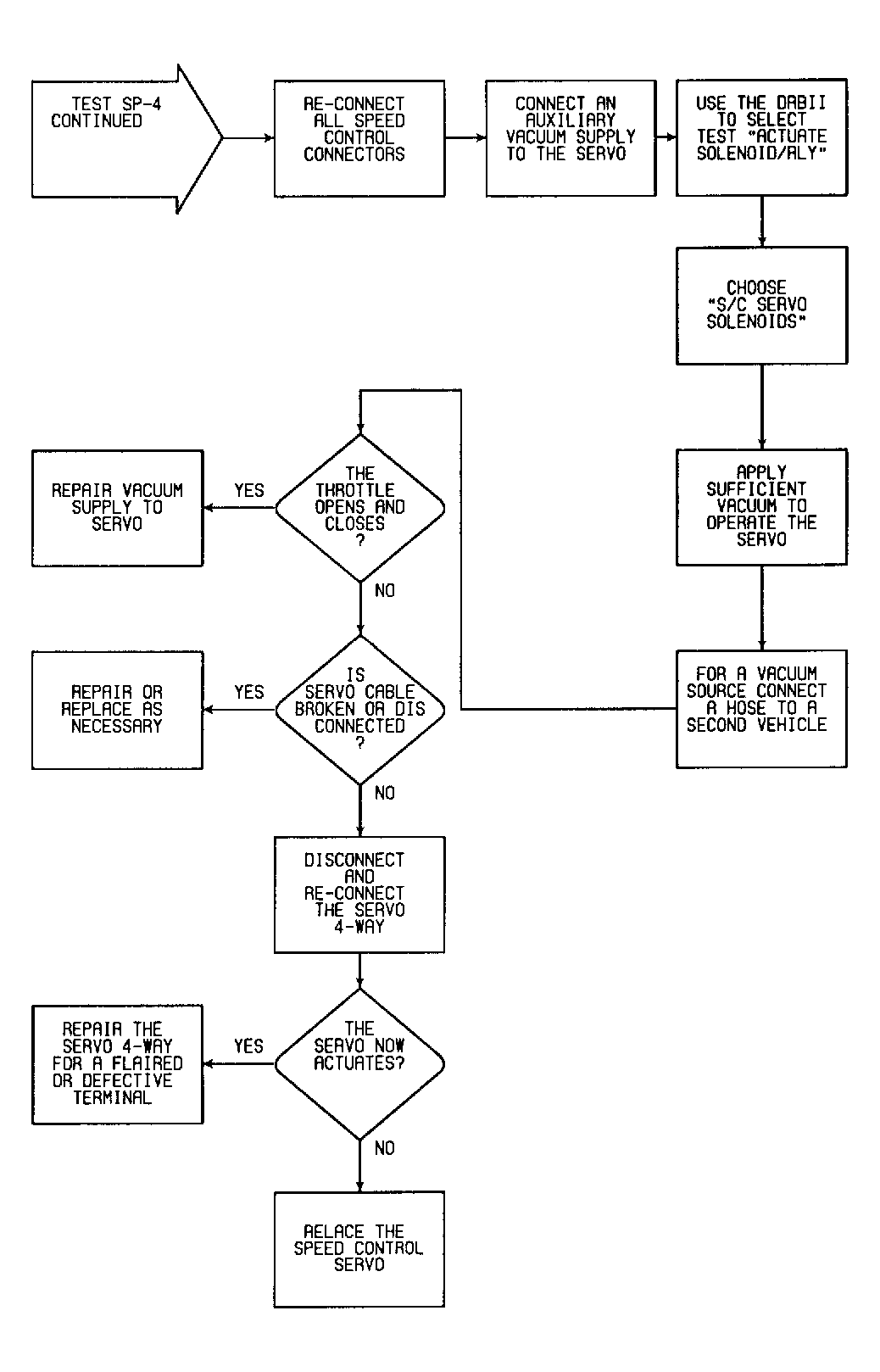

Fig 3: SP-4, Testing Brake Switch Circuit (3 of 4)

Fig 4: SP-4, Testing Brake Switch Circuit (4 of 4)
