2.2L/2.5L SPFI Tests/Code
›
Speed Control System Tests
›
SP-6, Testing "Resume" Switch
SP-6, Testing "Resume" Switch

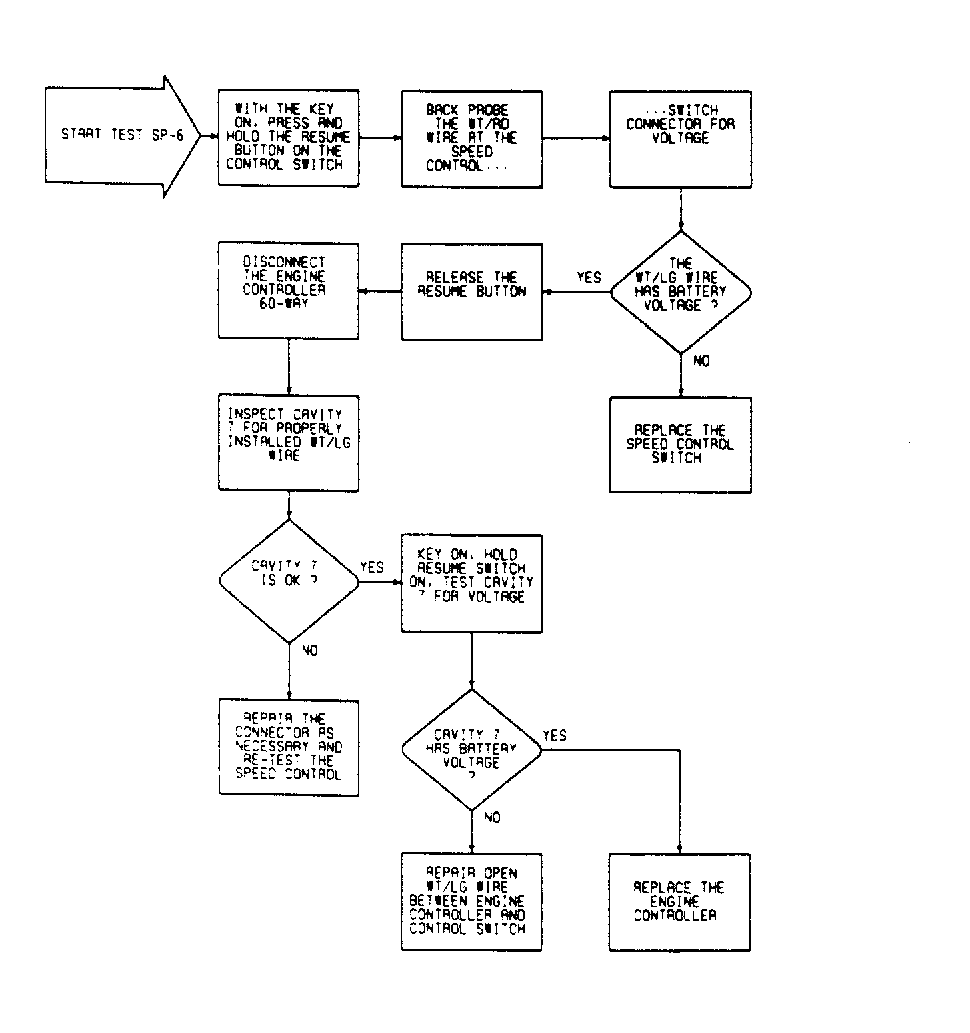

Fig 1: SP-6, Testing "RESUME" Switch
