Dr-1, Checking System For Faults

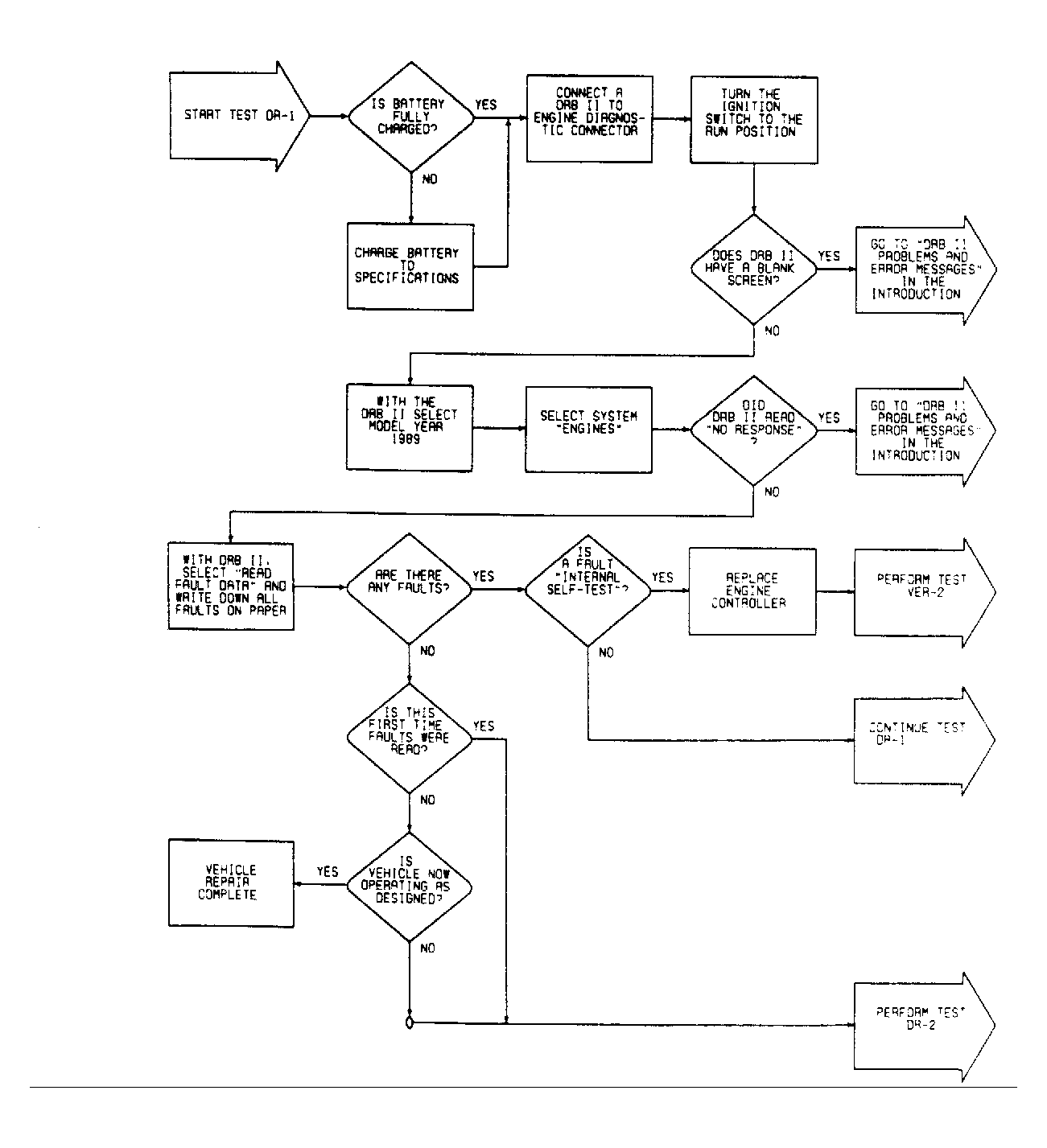

Fig 1: DR-1, Checking System For Faults (1 of 10)

Fig 2: DR-1, Checking System For Faults (2 of 10)

Fig 3: DR-1, Checking System For Faults (3 of 10)

Fig 4: DR-1, Checking System For Faults (4 of 10)

Fig 5: DR-1, Checking System For Faults (5 of 10)

Fig 6: DR-1, Checking System For Faults (6 of 10)

Fig 7: DR-1, Checking System For Faults (7 of 10)

Fig 8: DR-1, Checking System For Faults (8 of 10)

Fig 9: DR-1, Checking System For Faults (9 of 10)

Fig 10: DR-1, Checking System For Faults (10 of 10)
