Dr-4, Intermittent Test For Map Sensor Signal
Dr-4, Intermittent Test For Map Sensor Signal

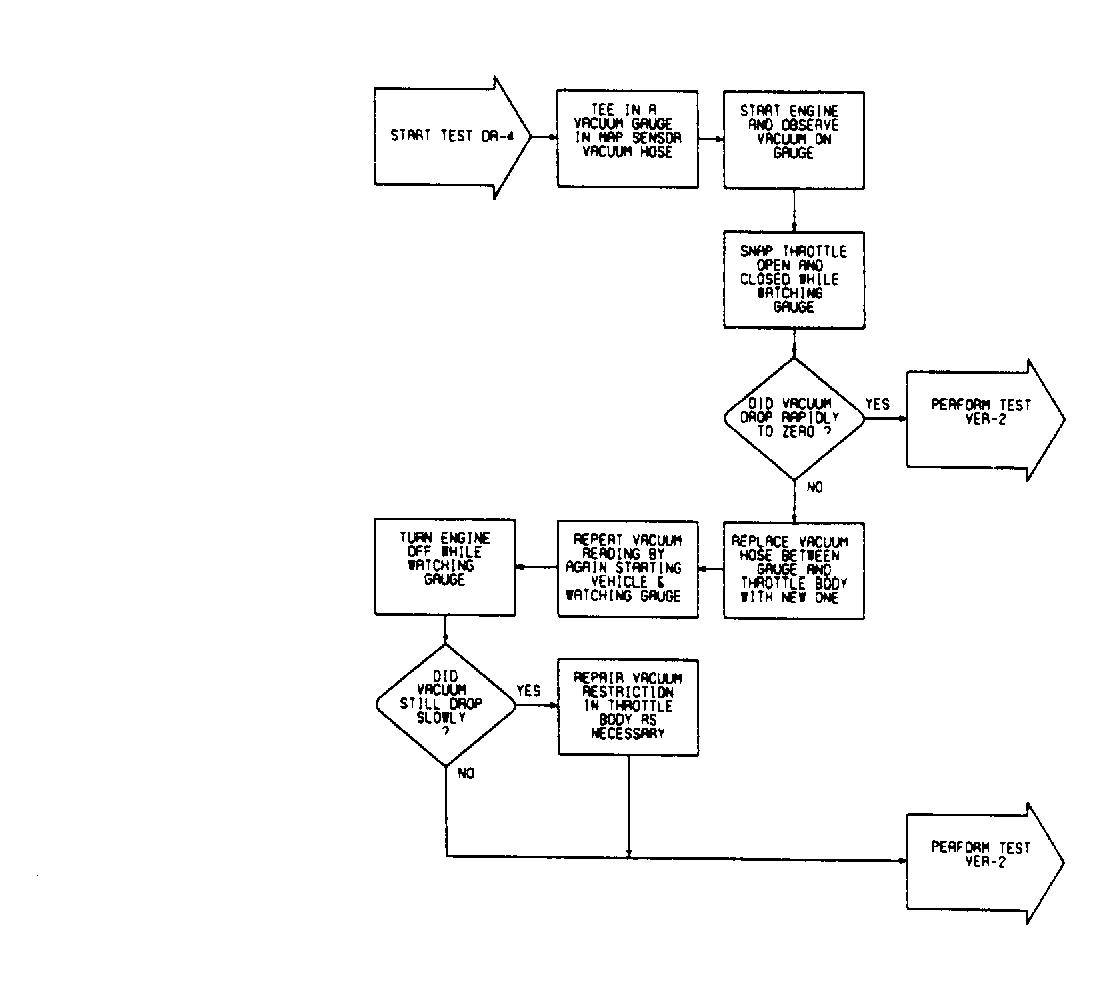

Fig 1: DR-4, Intermittent Test For MAP Sensor Signal
