Auto-Cruise Control Switch
Remove the knee protector (or lower panel assembly) and the column cover.
Disconnect the column switch connector and check the continuity between the terminals. See
Fig 1
.

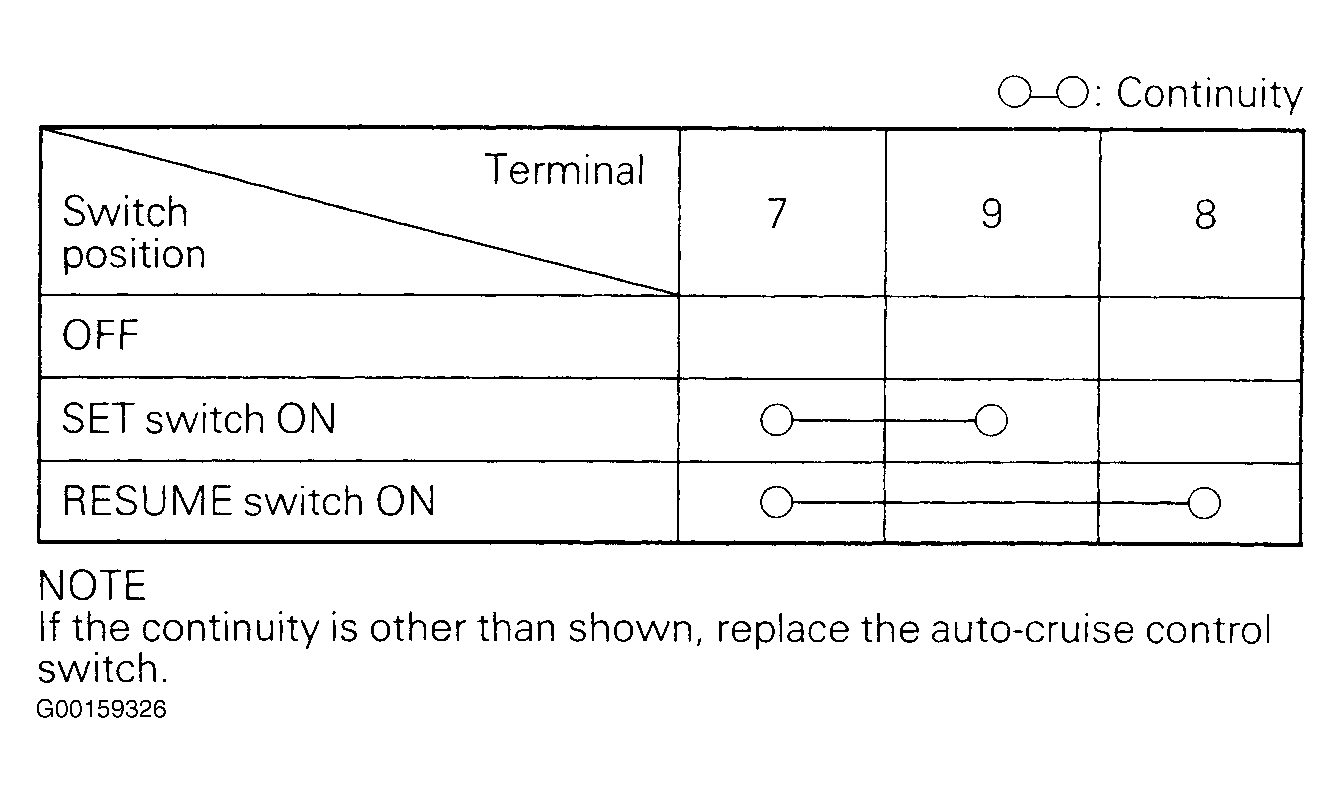

Fig 1: Checking Continuity Between Cruise Control Terminals
Courtesy of CHRYSLER CORP.
