Vehicle Speed Sensor
- Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION.

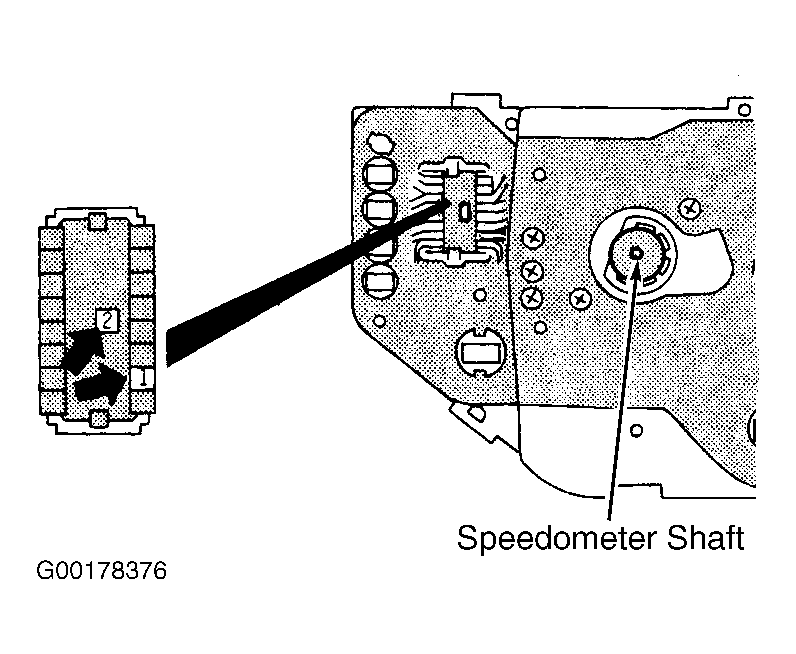

- Connect ohmmeter to vehicle speed sensor terminal on back of instrument cluster. See Fig 1 .
- As speedometer shaft is turned, ohmmeter should show continuity/no continuity pattern. If not, replace vehicle speed sensor.
