Engine Controls - Tests W/Codes
›
Test Charts - 1.5L
›
Dr-2: Code 11 Oxygen Sensor Circuit
Dr-2: Code 11 Oxygen Sensor Circuit
Fig 1: Circuit Diagram DR-2 (1.5L)

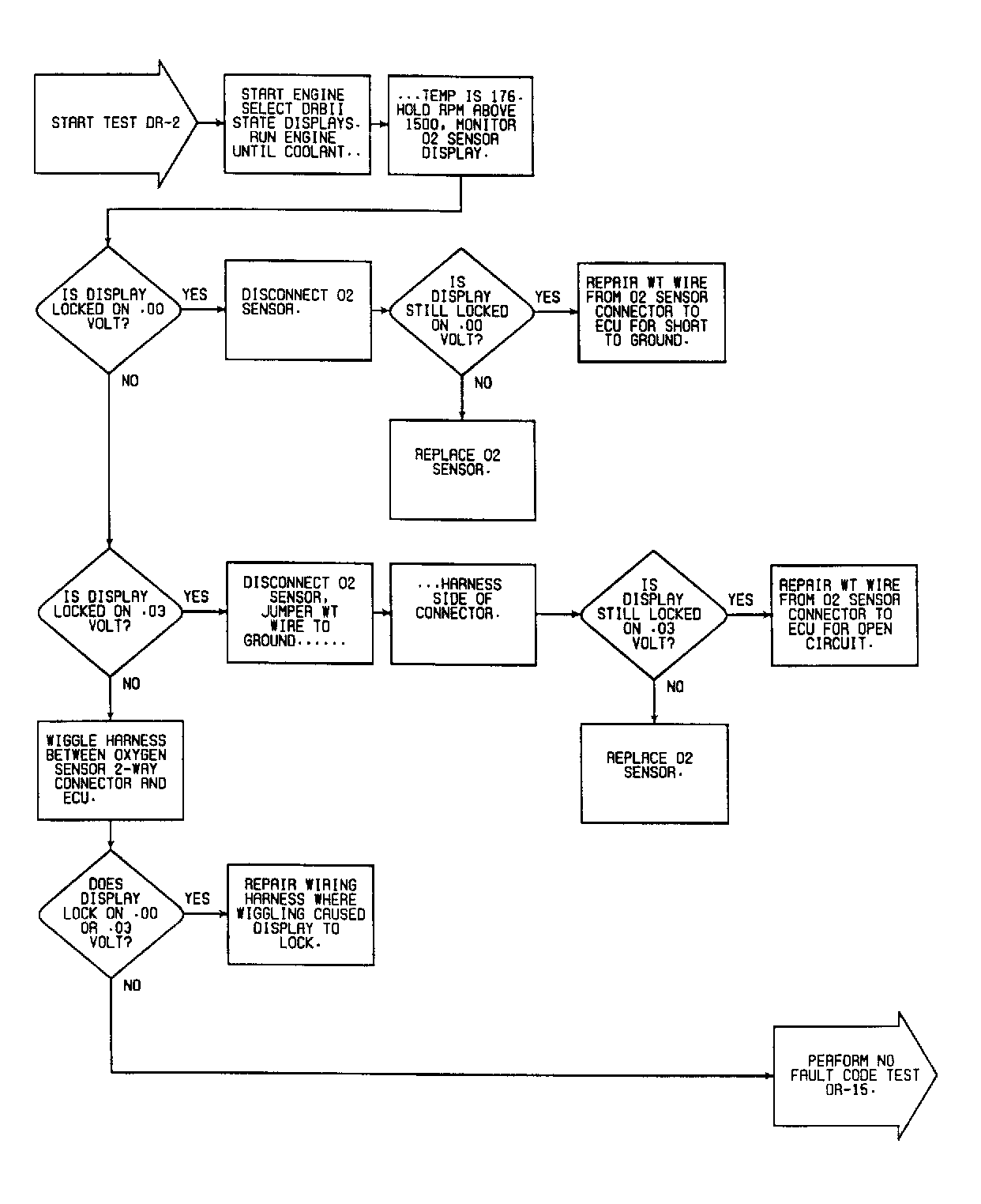

Fig 2: Flow Chart DR-2 (1.5L)
