Dr-2: Code 11 Oxygen Sensor Circuit
Dr-2: Code 11 Oxygen Sensor Circuit
Fig 1: Circuit Diagram DR-2 (1.8L)

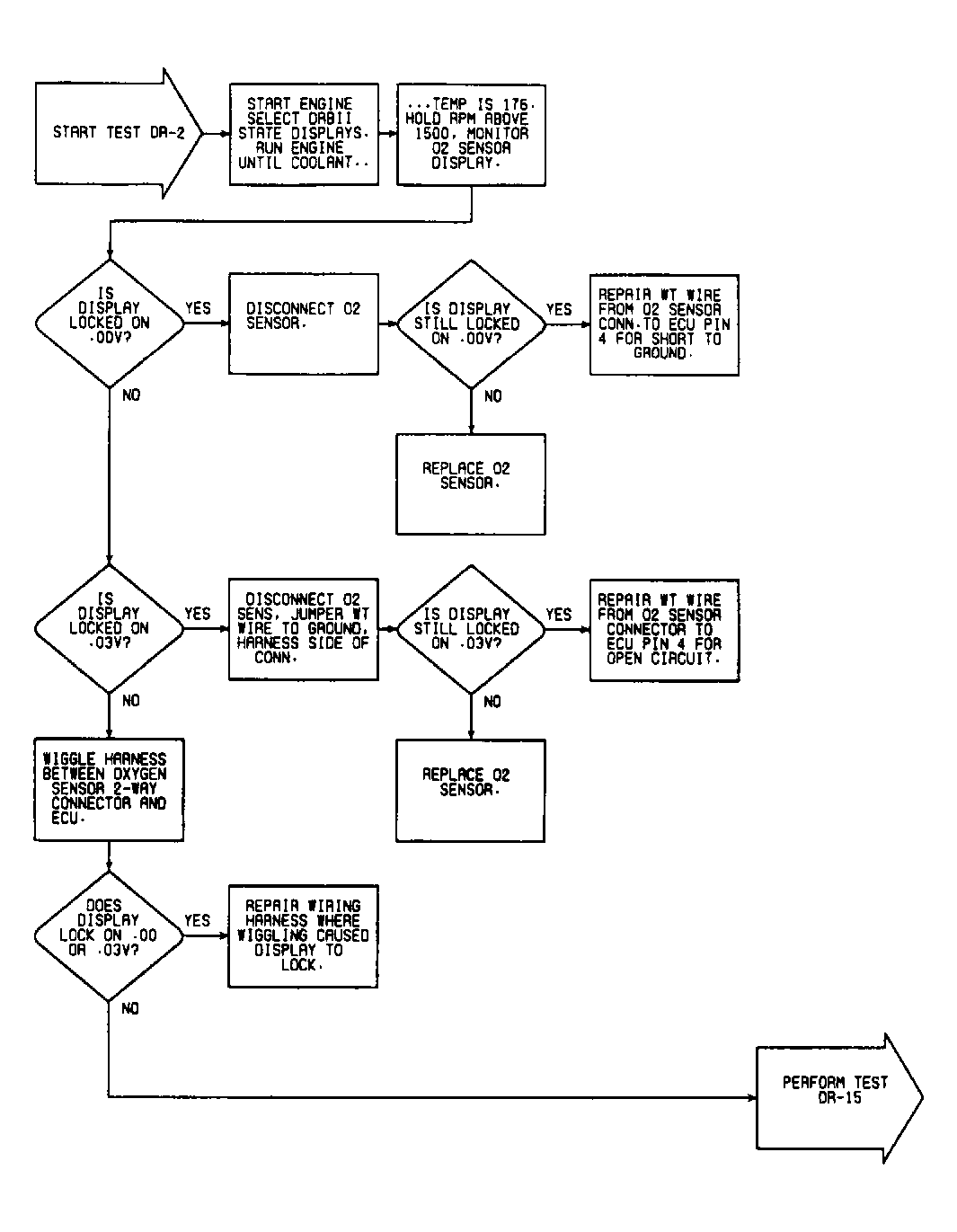

Fig 2: Flow Chart DR-2 (1.8L)
