Dr-21: No-Fault Code Test, DRB-II Sensor Test

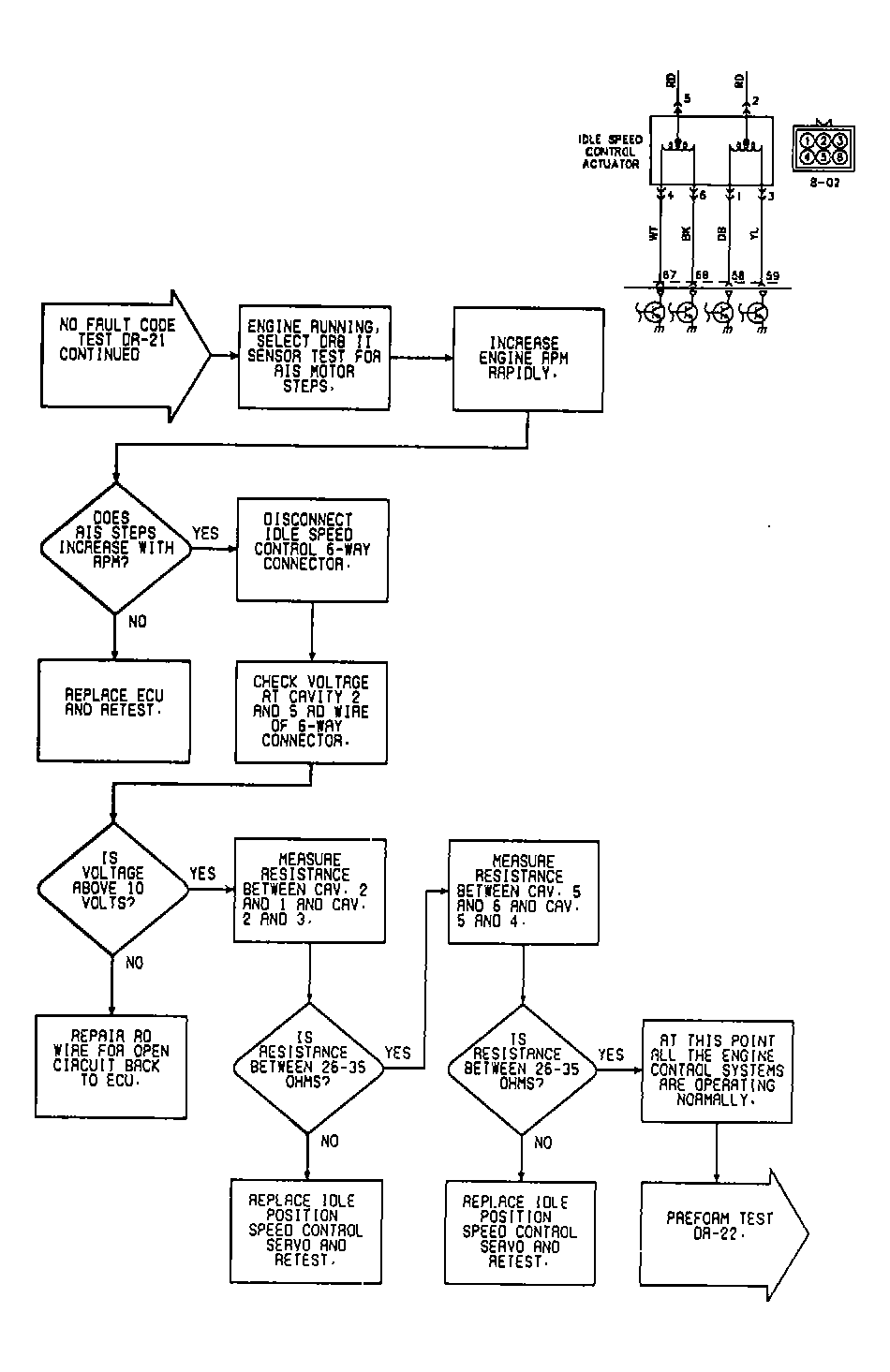

Fig 1: DR-21 Flow Chart & Circuit Diagram (2.0L) (1 of 5)

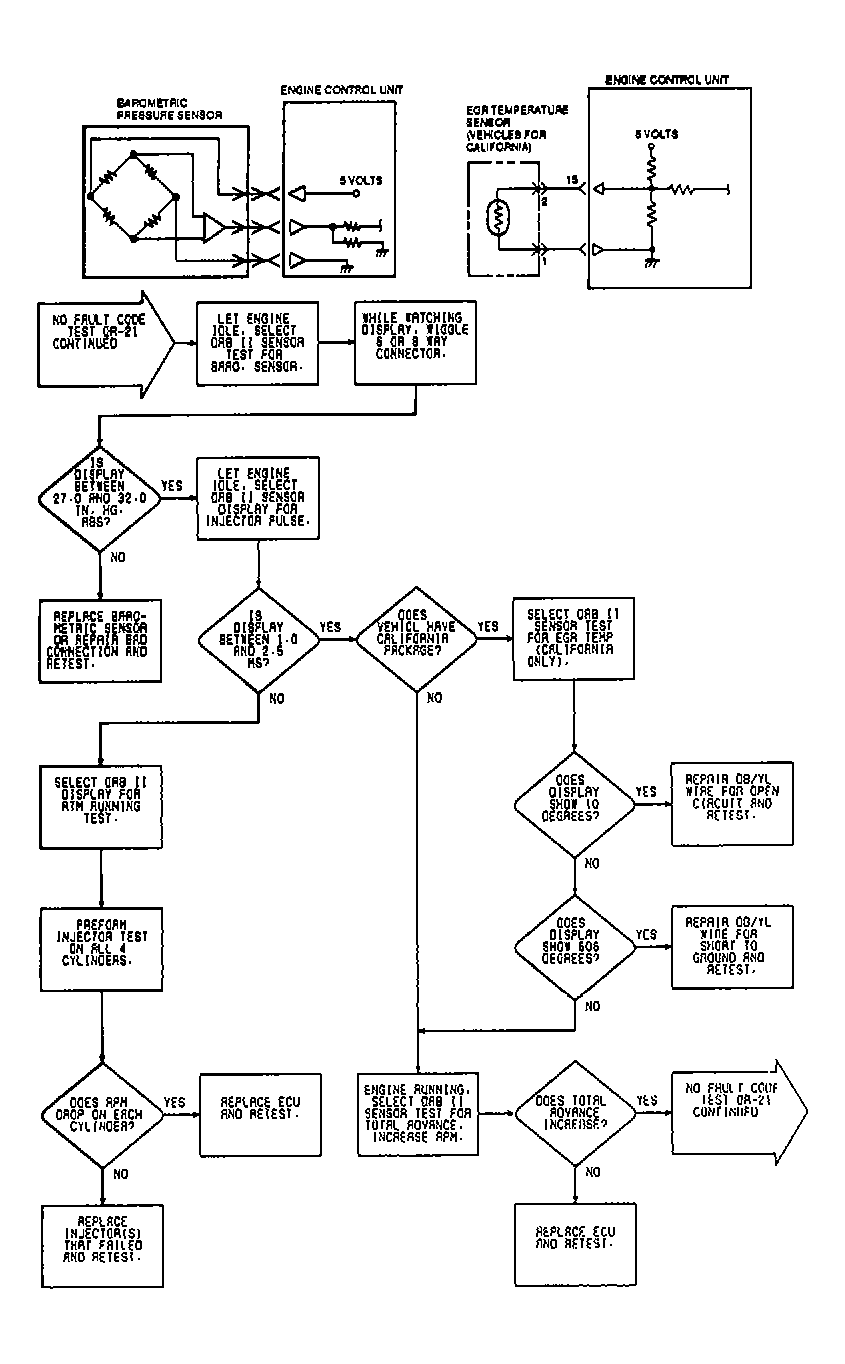

Fig 2: DR-21 Flow Chart & Circuit Diagram (2.0L) (2 of 5)

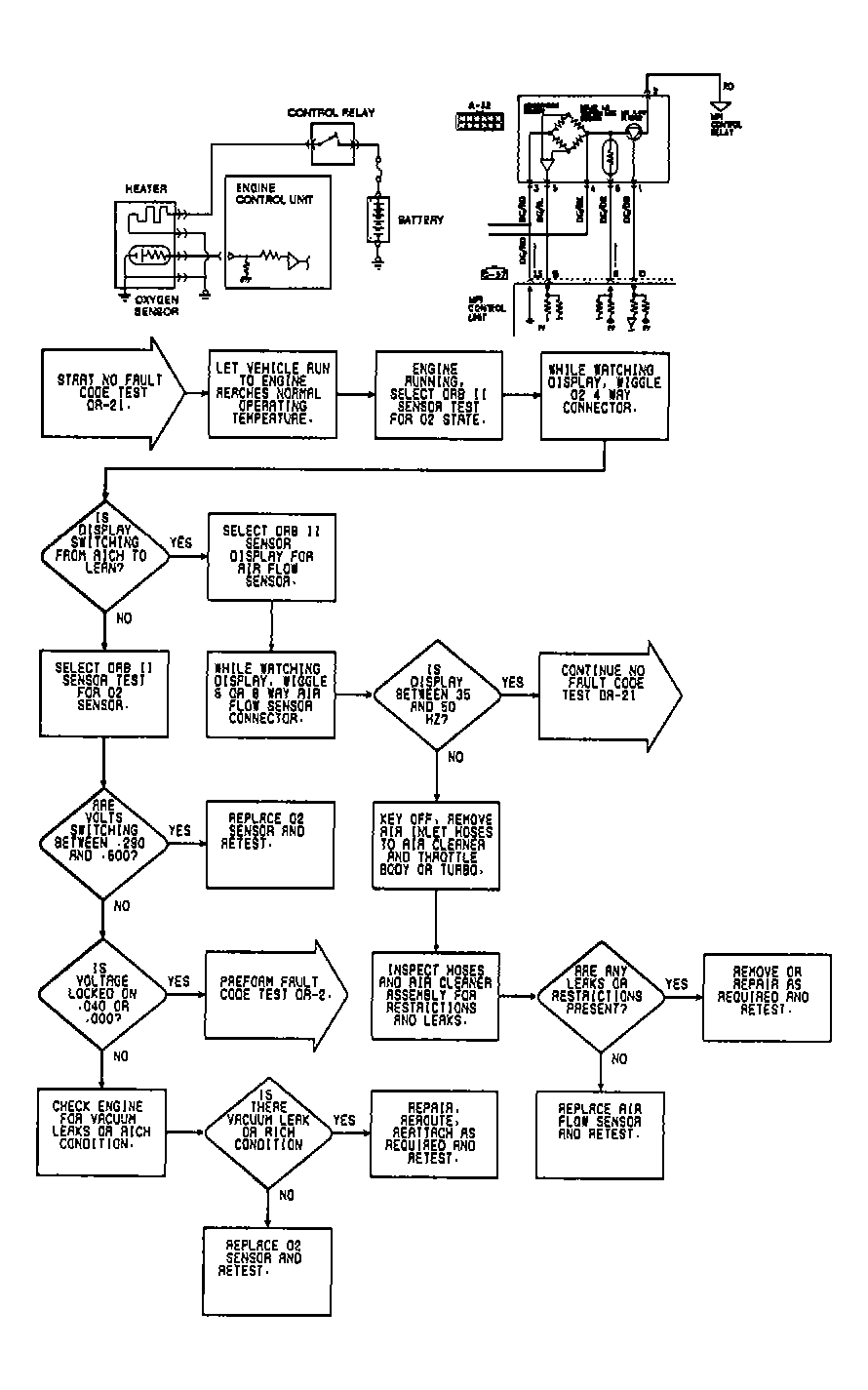

Fig 3: DR-21 Flow Chart & Circuit Diagram (2.0L) (3 of 5)

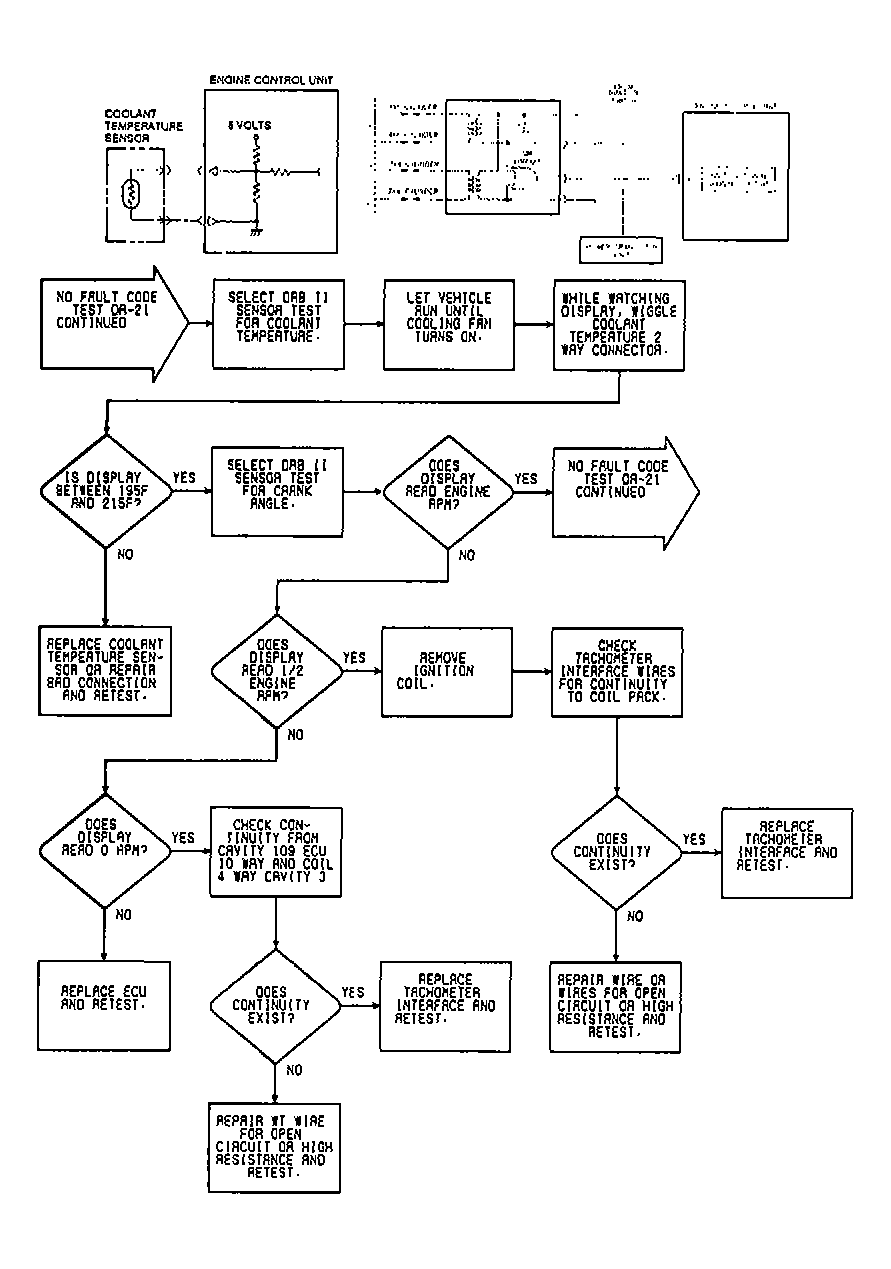

Fig 4: DR-21 Flow Chart & Circuit Diagram (2.0L) (4 of 5)

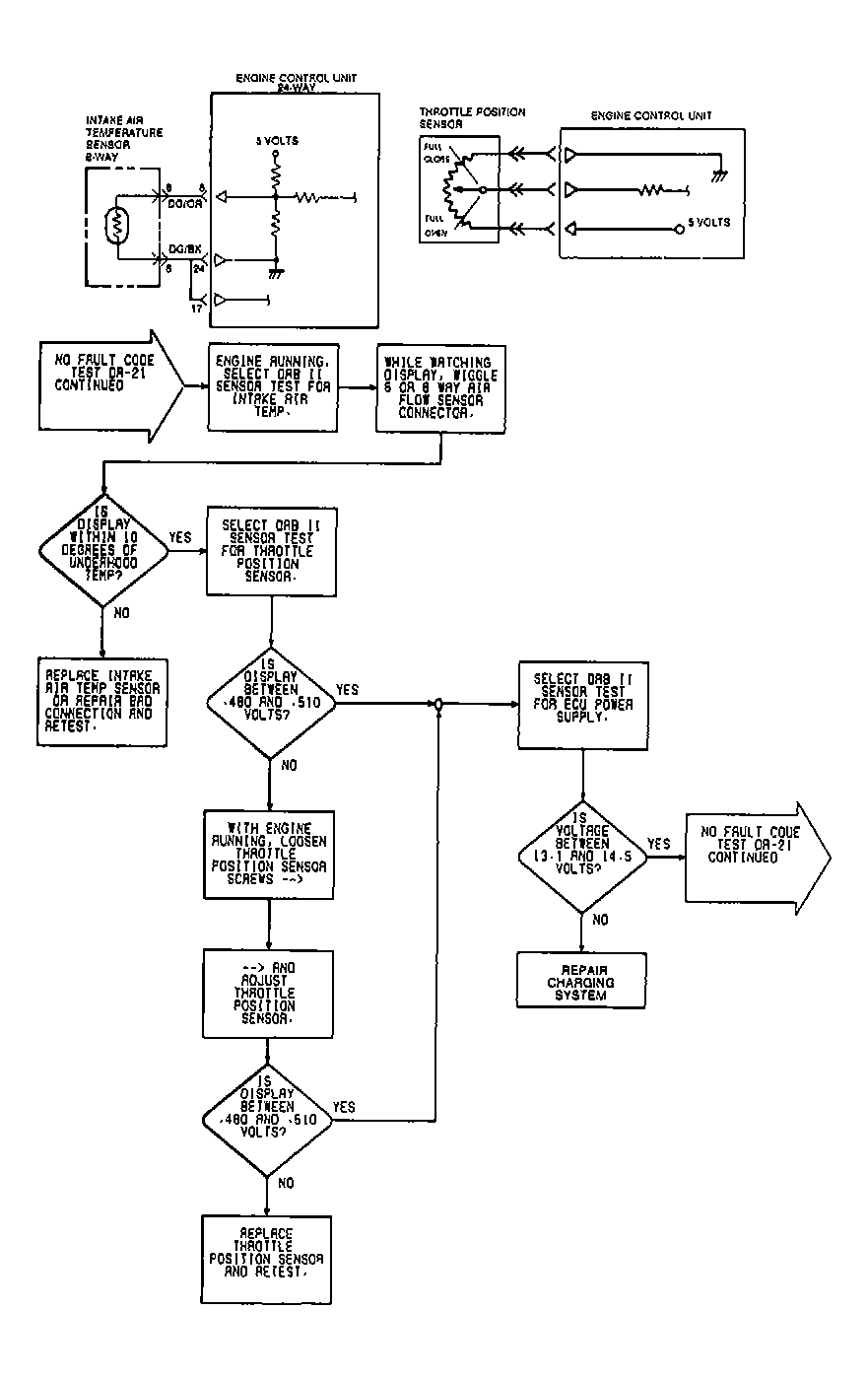

Fig 5: DR-21 Flow Chart & Circuit Diagram (2.0L) (5 of 5)
