Service Point Locations

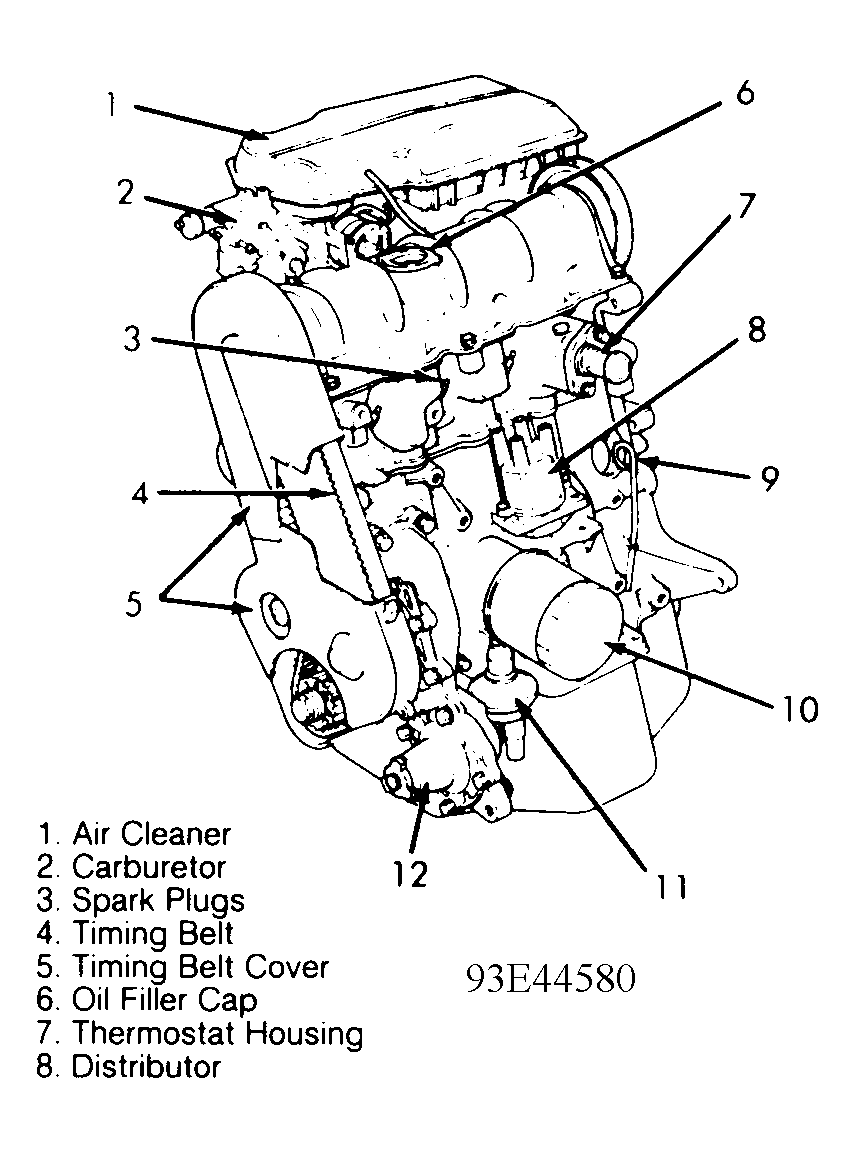

Fig 1: Service Point Locations (1983-87 Models)
G93E44580Courtesy of CHRYSLER CORP.

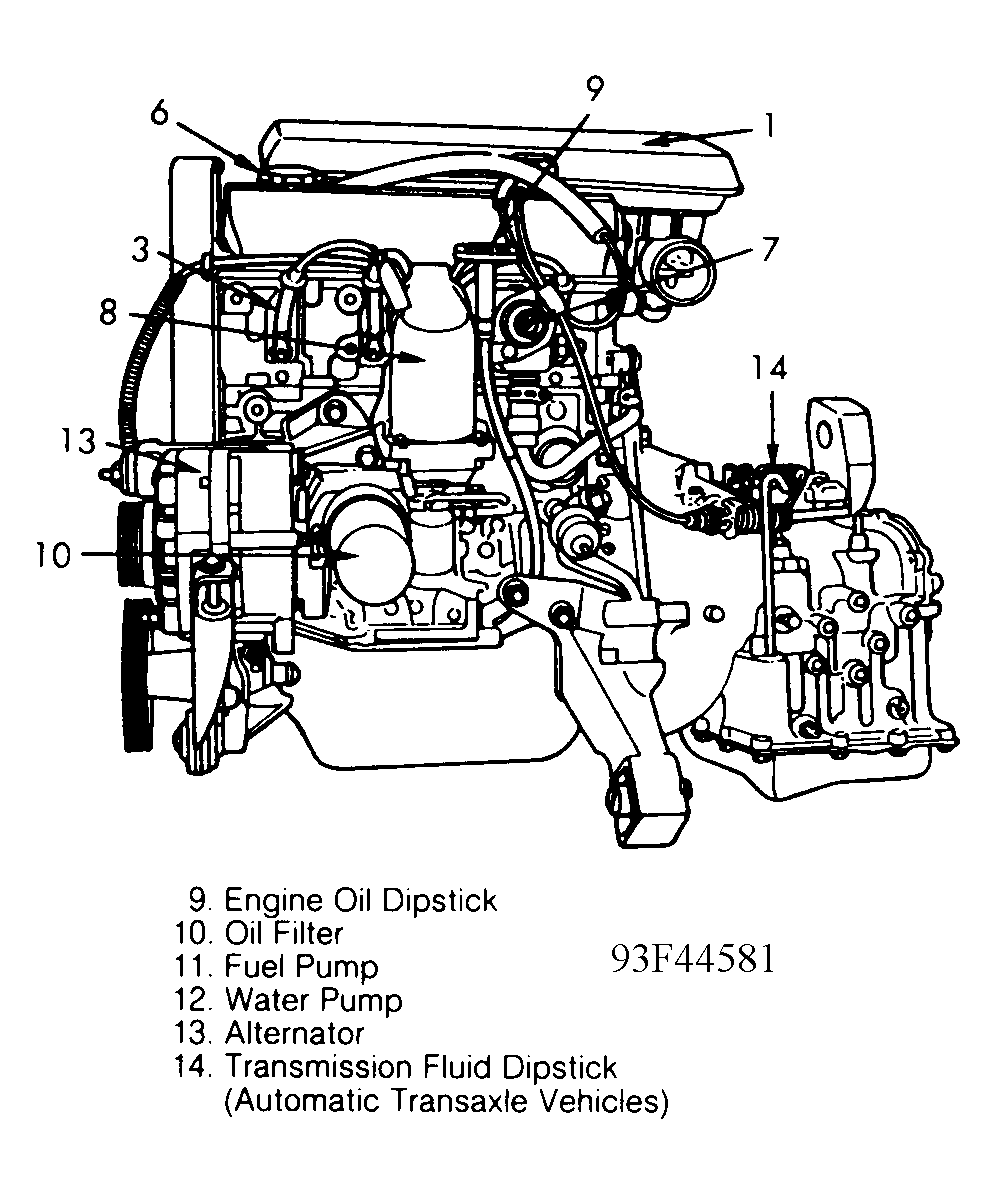

Fig 2: Service Point Locations (1988-90 Models)
G93F44581Courtesy of CHRYSLER CORP.
