Engine Controls - Tests W/Codes - 1.8L
›
DRIVEABILITY Tests
›
Dr-10: Checking Vehicle Speed Sensor
Dr-10: Checking Vehicle Speed Sensor

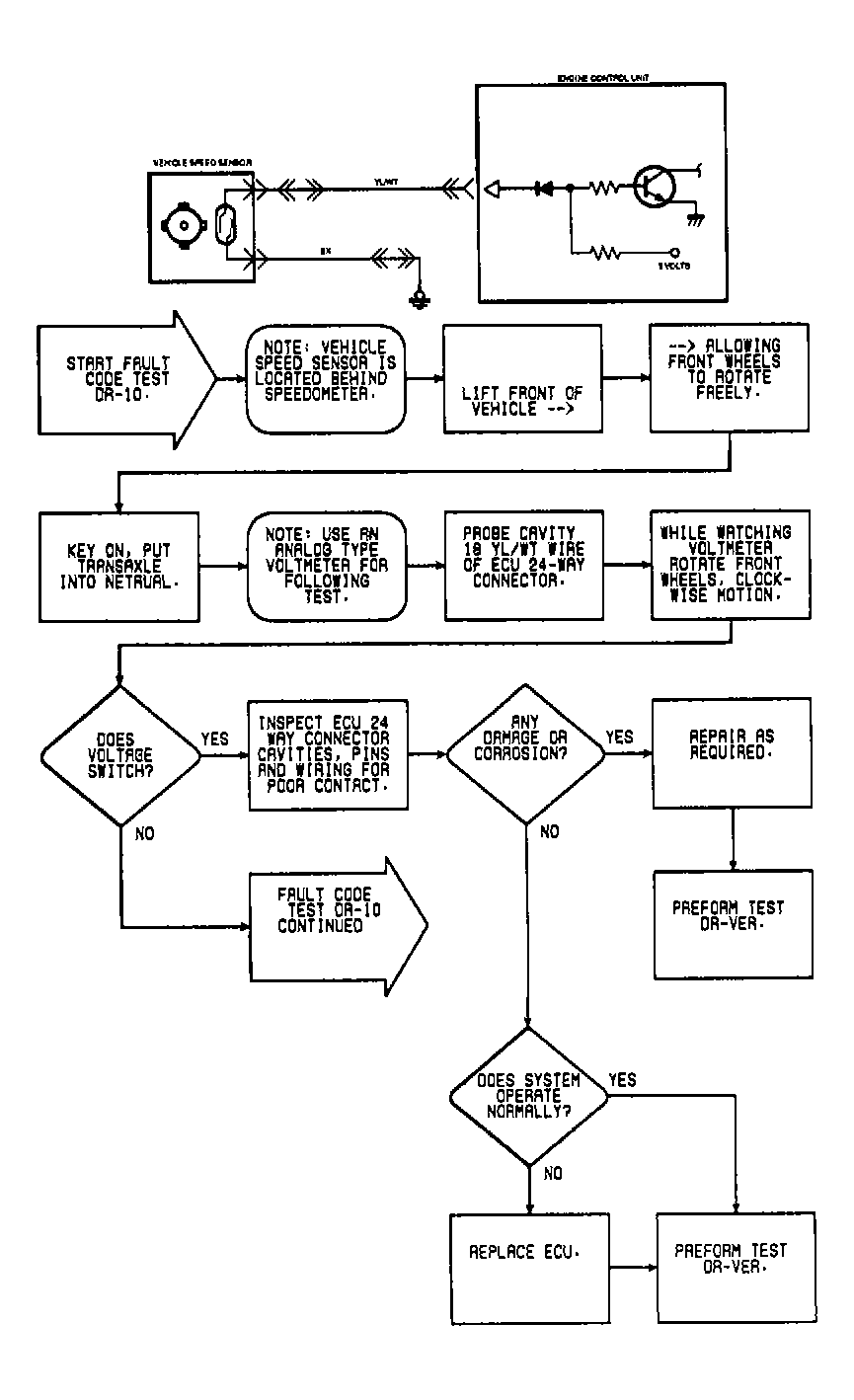

Fig 1: DR-10 Flow Chart & Circuit Diagram (1 of 2)

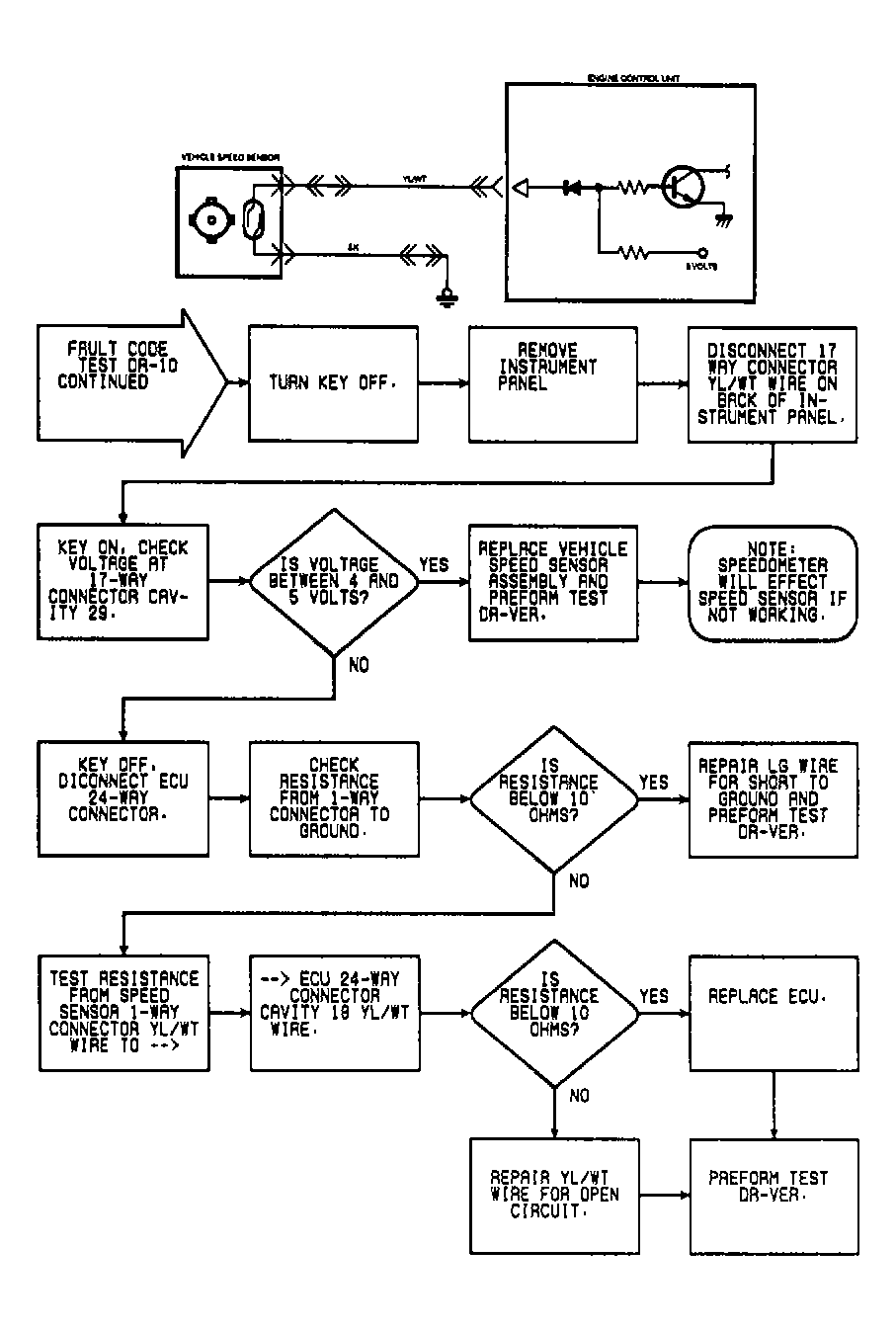

Fig 2: DR-10 Flow Chart & Circuit Diagram (2 of 2)
