Dr-6: Testing ISC Motor Position Sensor

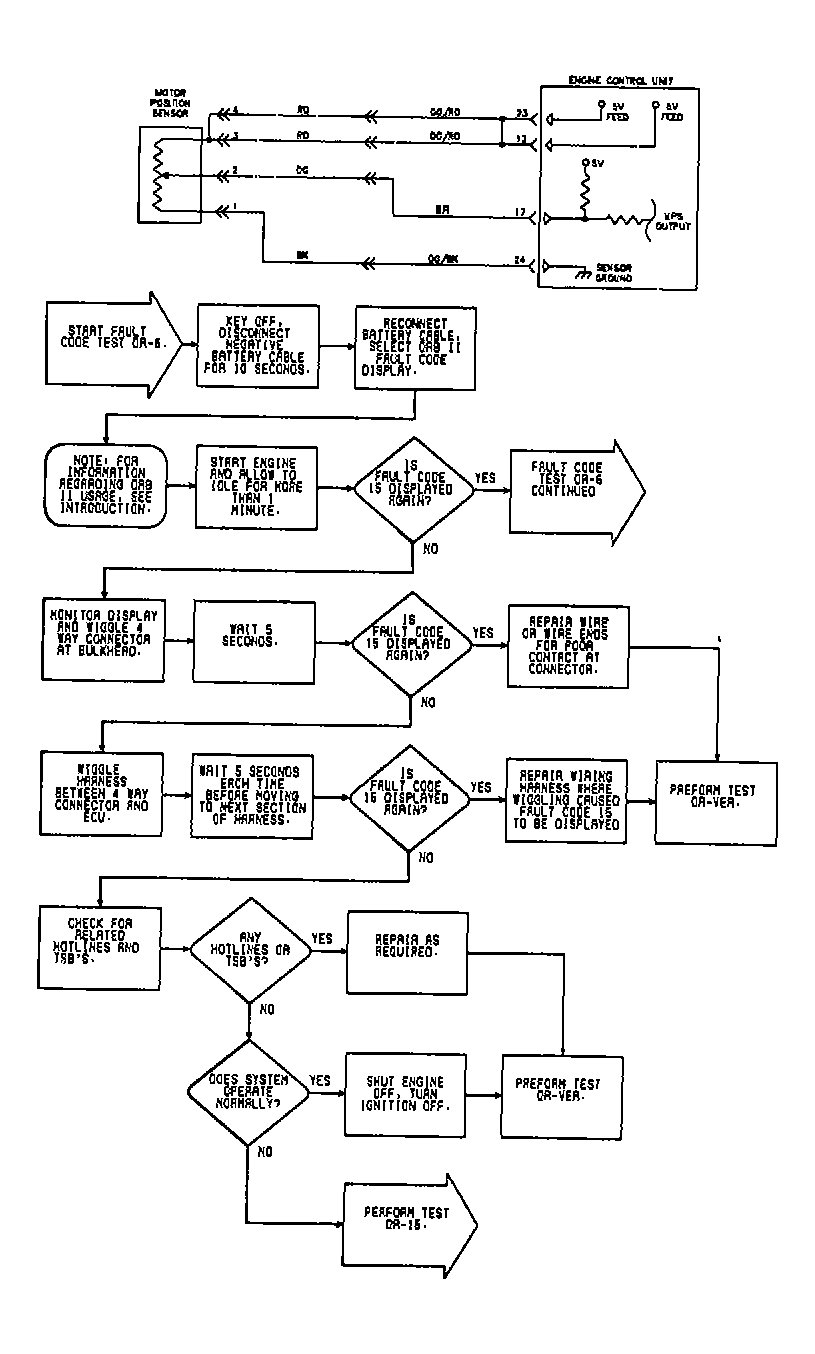

Fig 1: DR-6 Flow Chart & Circuit Diagram (1 of 3)

G90A12617

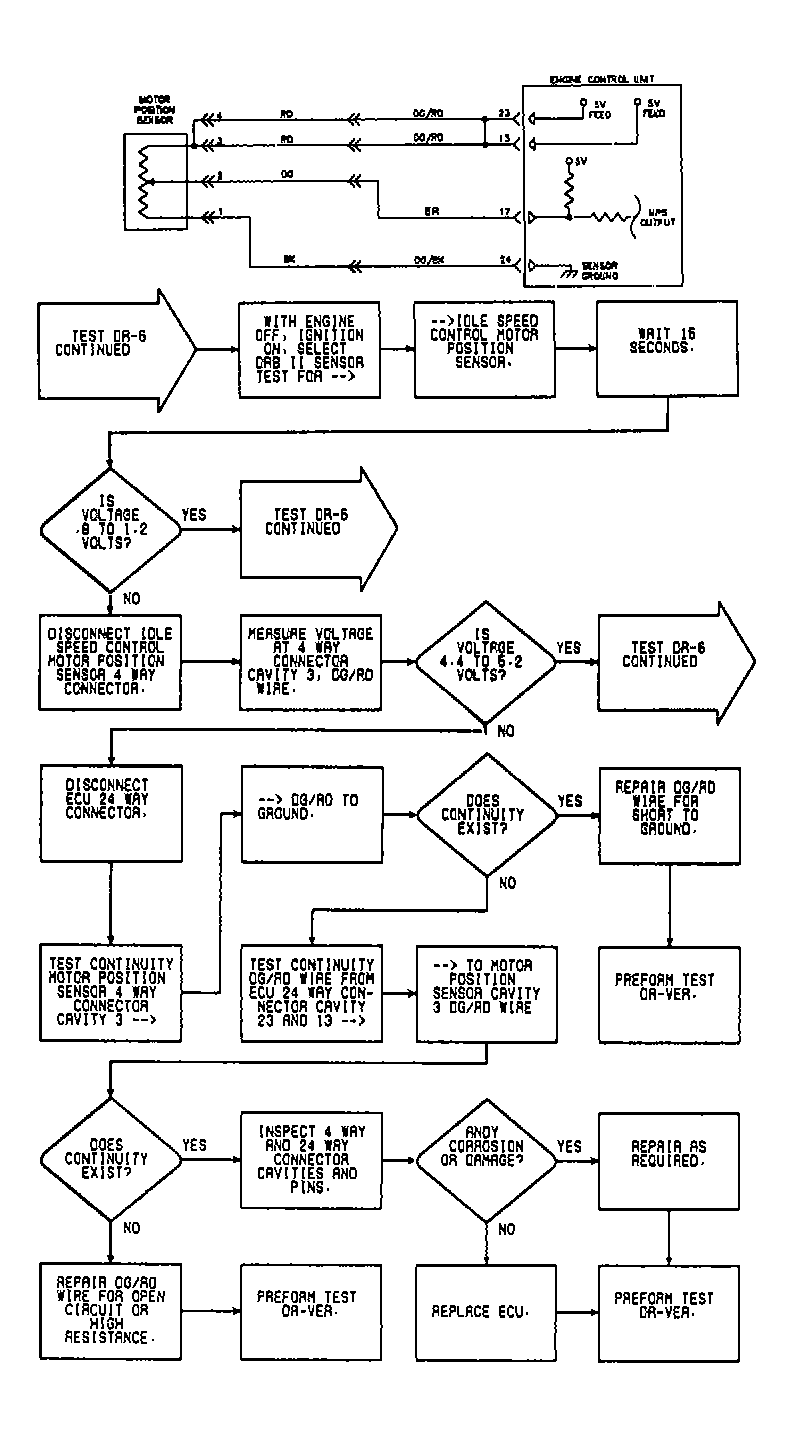

Fig 2: DR-6 Flow Chart & Circuit Diagram (2 of 3)

G90B12618

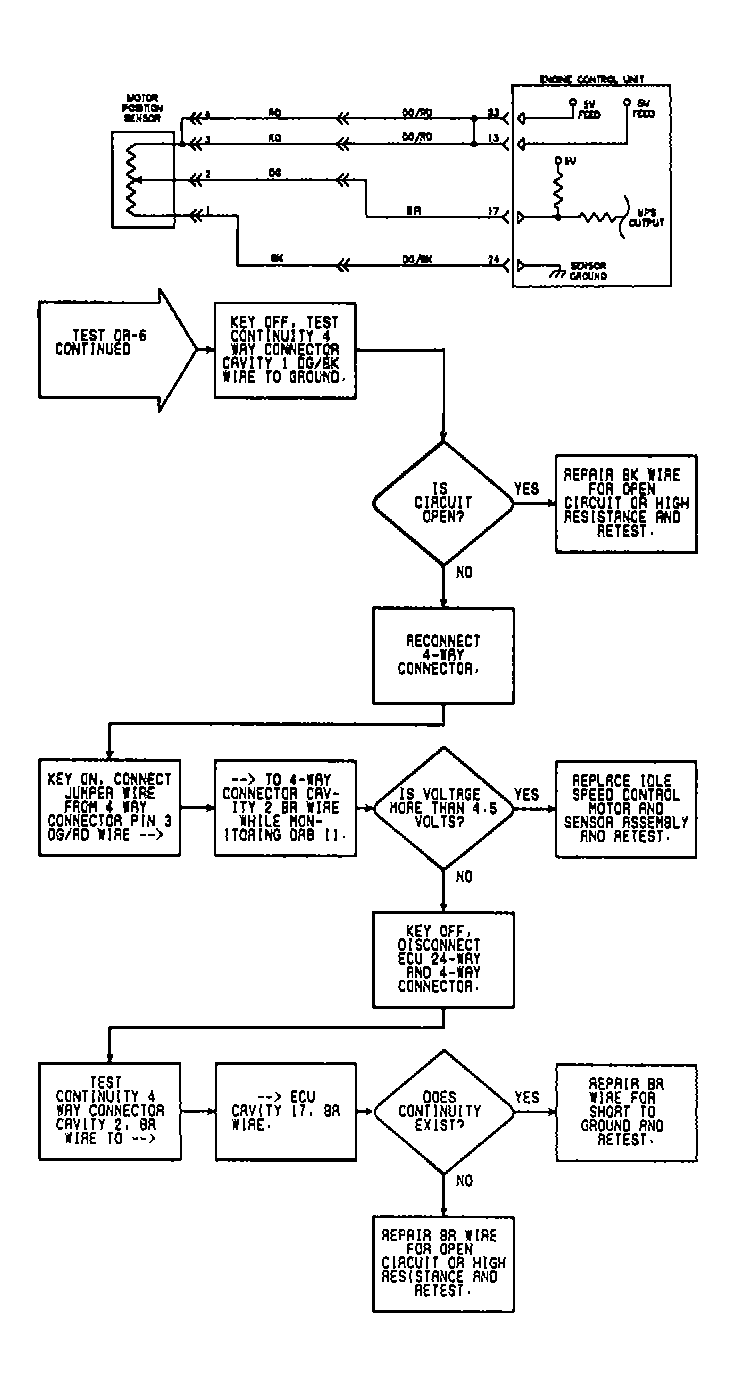

Fig 3: DR-6 Flow Chart & Circuit Diagram (3 of 3)

G90C12619
