Voyager LE, 3.0 3
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Controls - Tests W/Codes - Body Control Computer
›
Trouble Shooting Charts
›
Test 64A - Testing For Not Receiving Bus Message Correctly On
Test 64A - Testing For Not Receiving Bus Message Correctly On
BUS

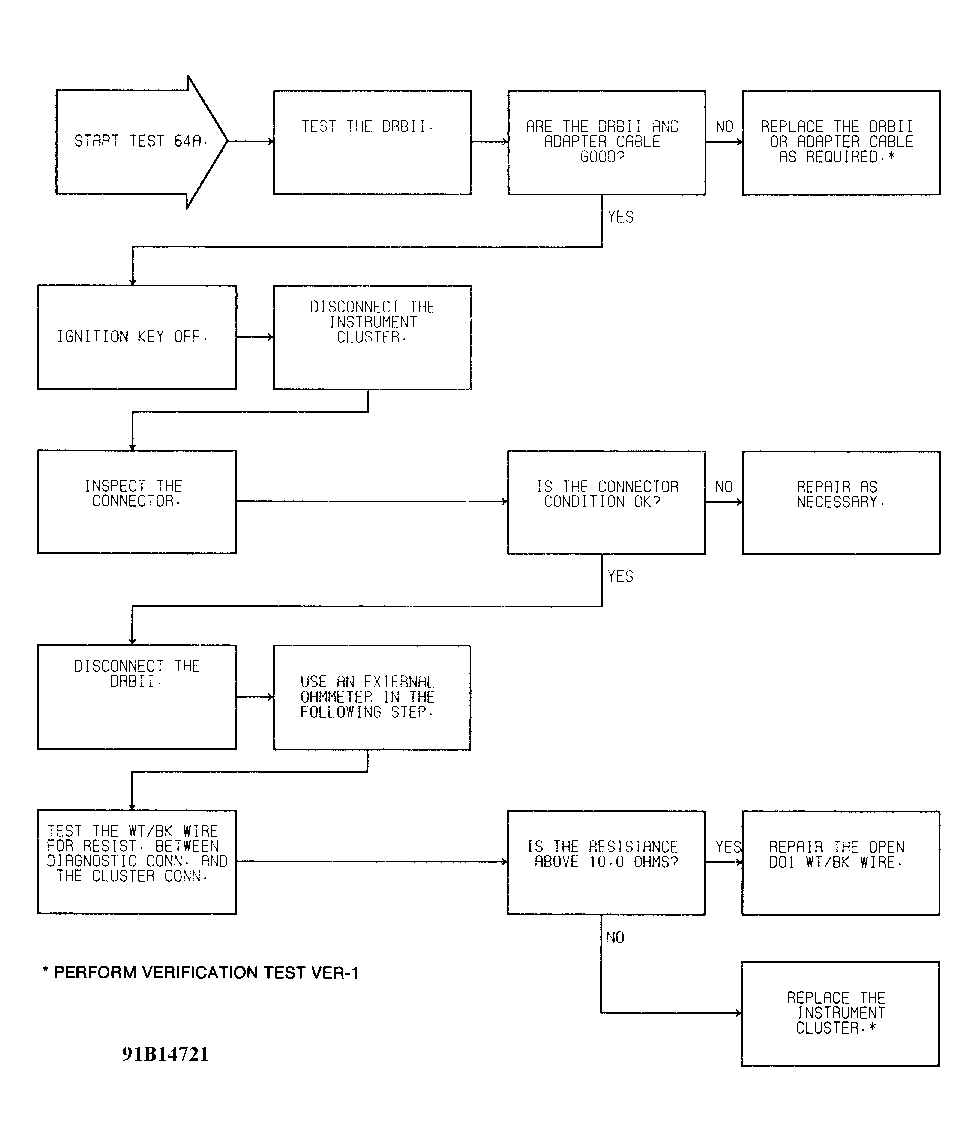

Fig 1: Test 64A - Testing For Not Receiving Bus Message Correctly On Bus
