Power Window Motor

  1. Connect the motor terminals directly to the battery and check that the motor operates smoothly. See Fig 1 .
  2. Reverse the polarity and check that the motor operates smoothly in the reverse direction.

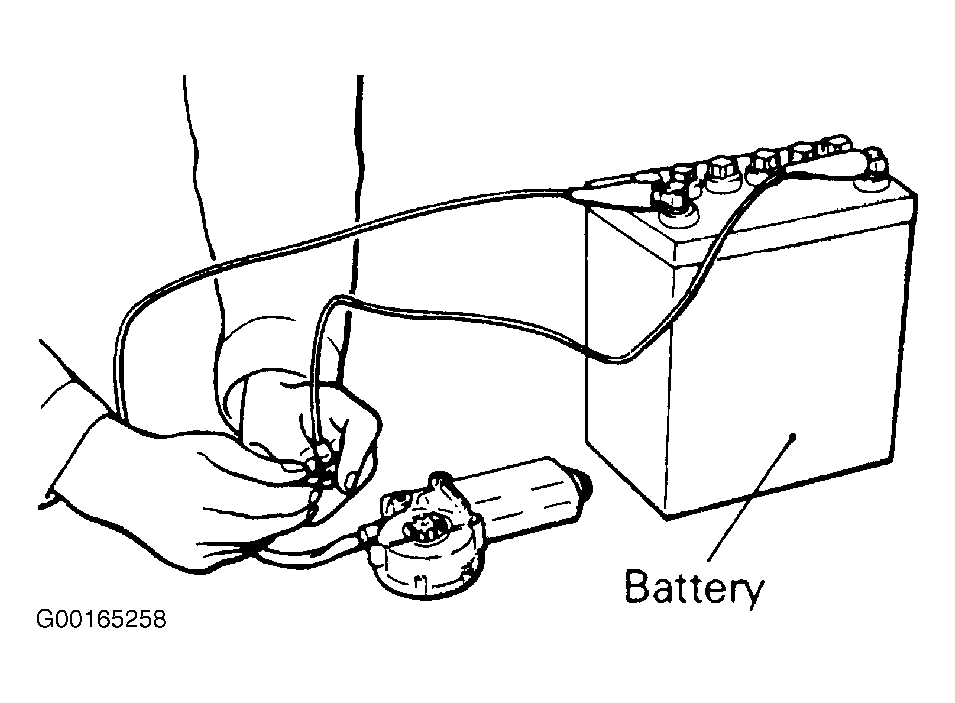

Fig 1: Testing Power Window Motor
G00165258Courtesy of CHRYSLER CORP.
