Dr-8A: Testing No. 1 Cylinder TDC Sensor
Dr-8A: Testing No. 1 Cylinder TDC Sensor
Fig 1: Driveability Test DR-8A: Circuit Diagram

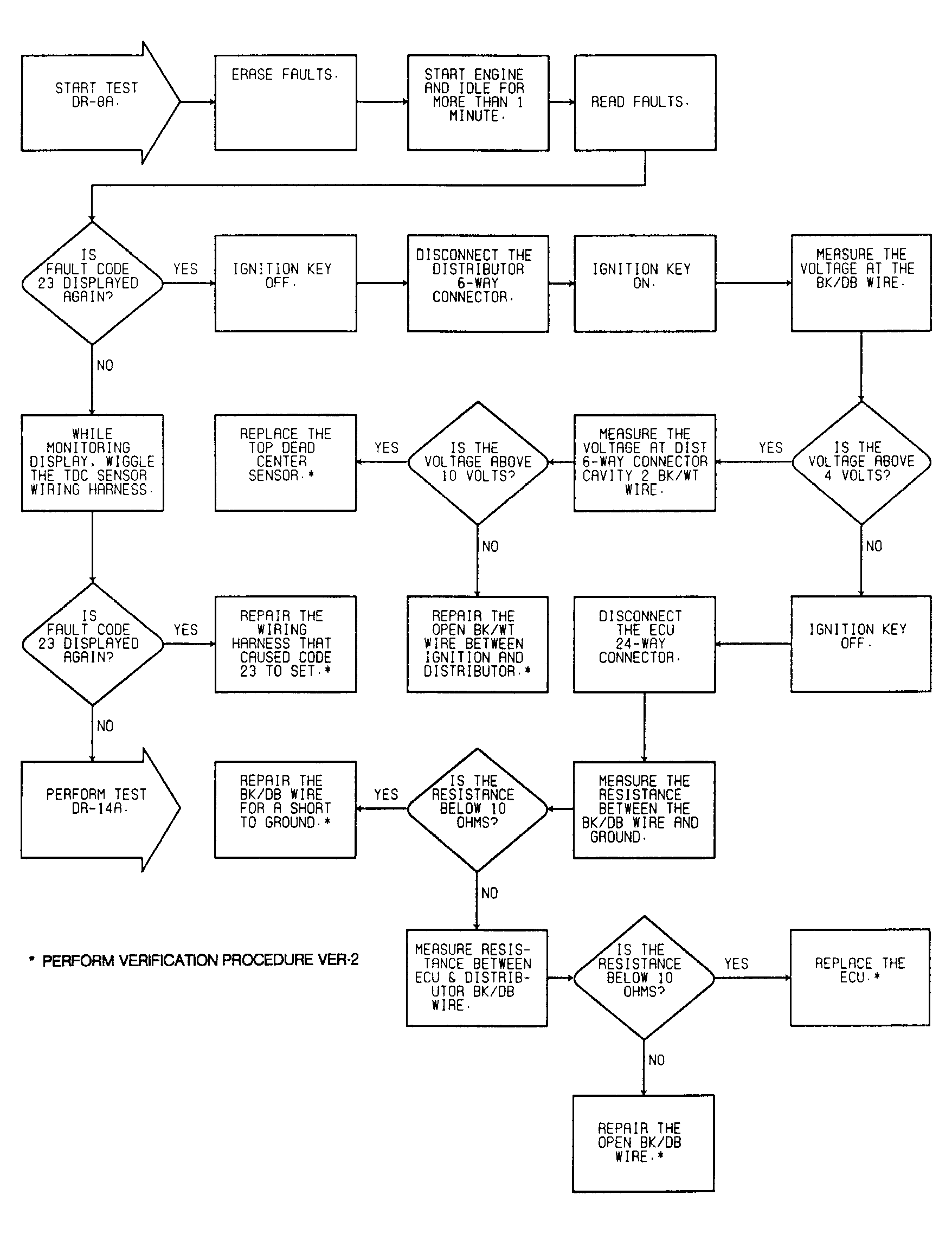

Fig 2: Driveability Test DR-8A: Diagnostic Flow Chart
