Dr-7A: Testing Engine Coolant Temperature Sensor

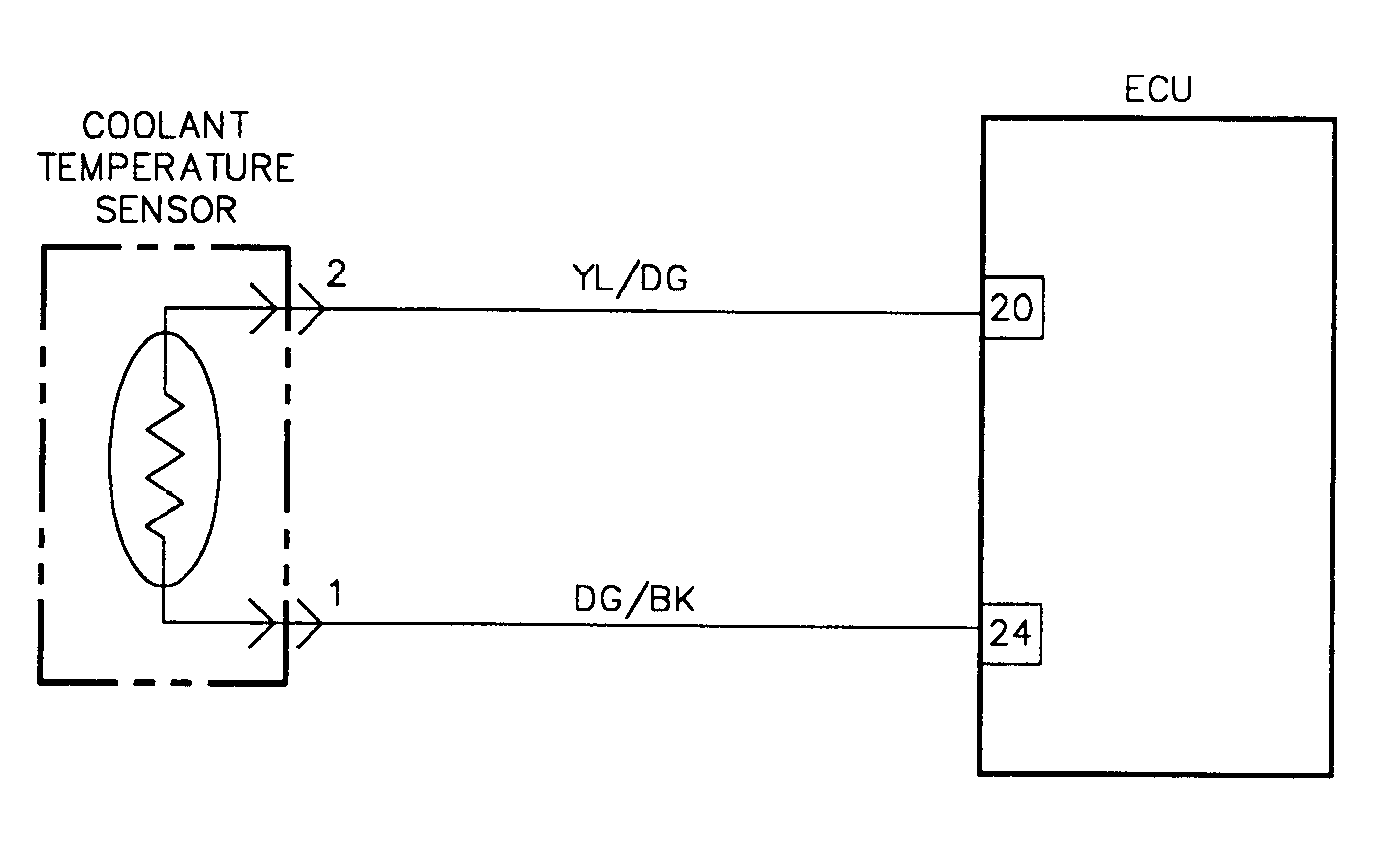

Fig 1: Driveability Test DR-7A: Circuit Diagram

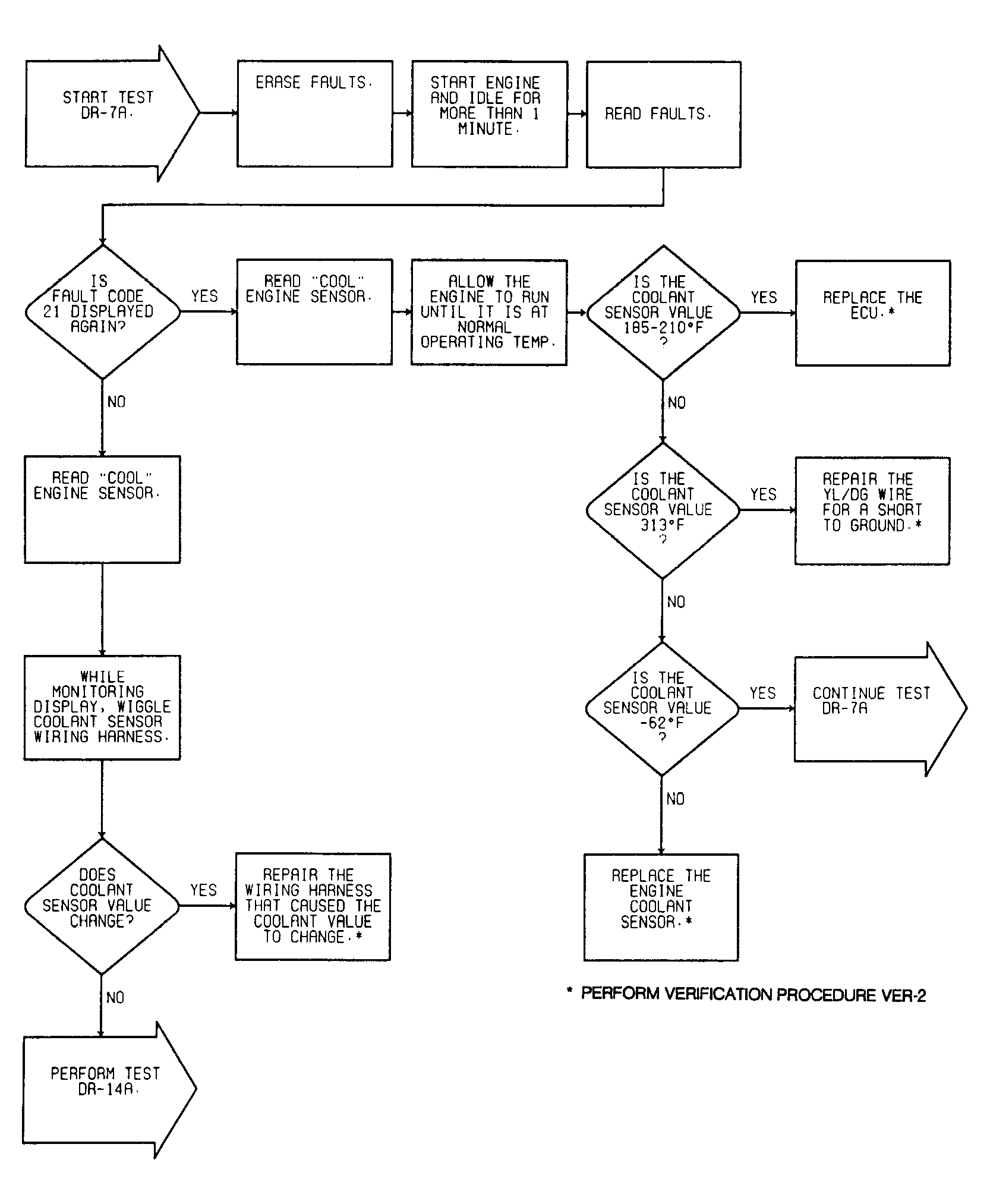

Fig 2: Driveability Test DR-7A: Diagnostic Flow Chart (1 of 2)

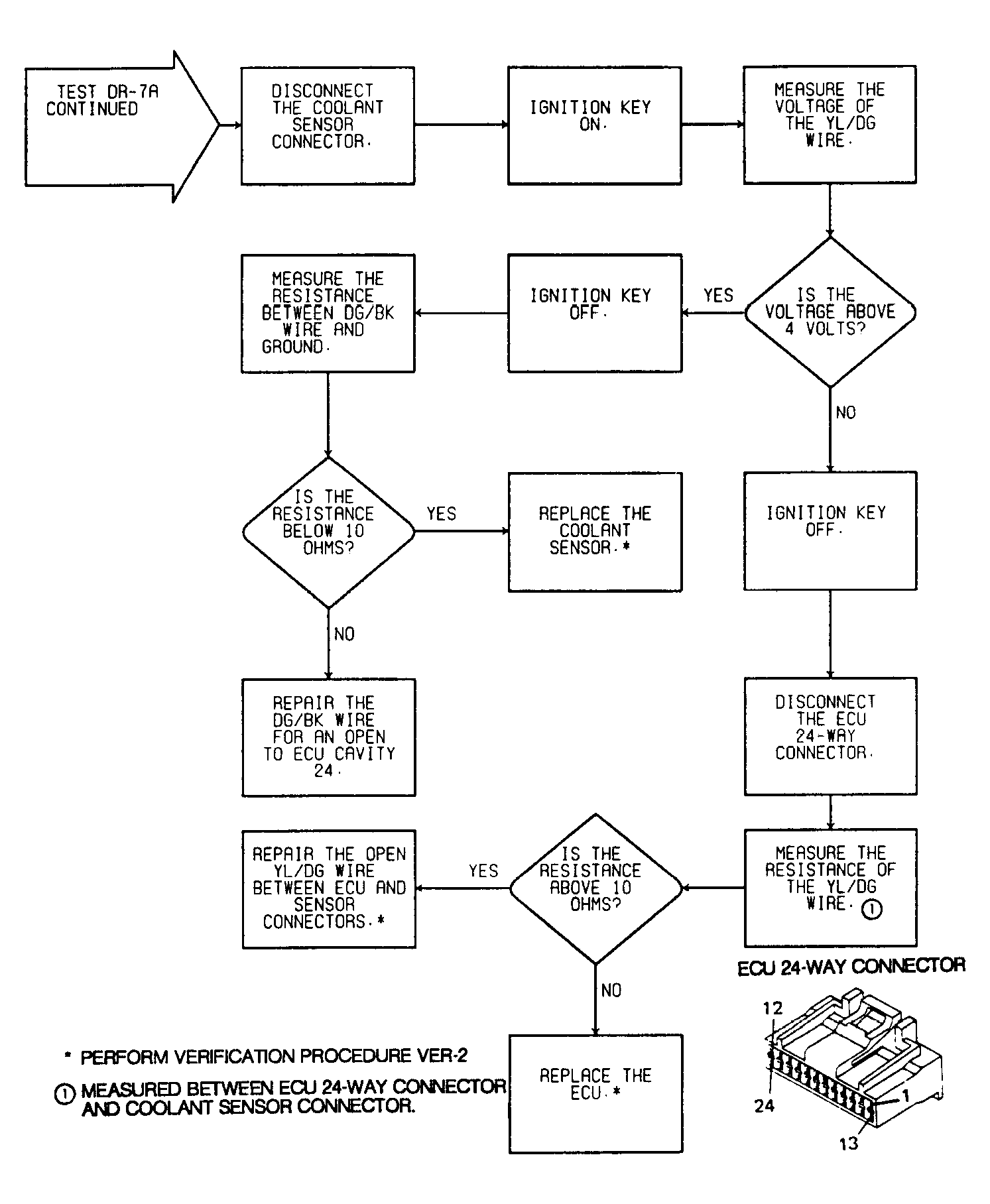

Fig 3: Driveability Test DR-7A: Diagnostic Flow Chart (2 of 2)
