Dr-12: Testing Injector Circuit

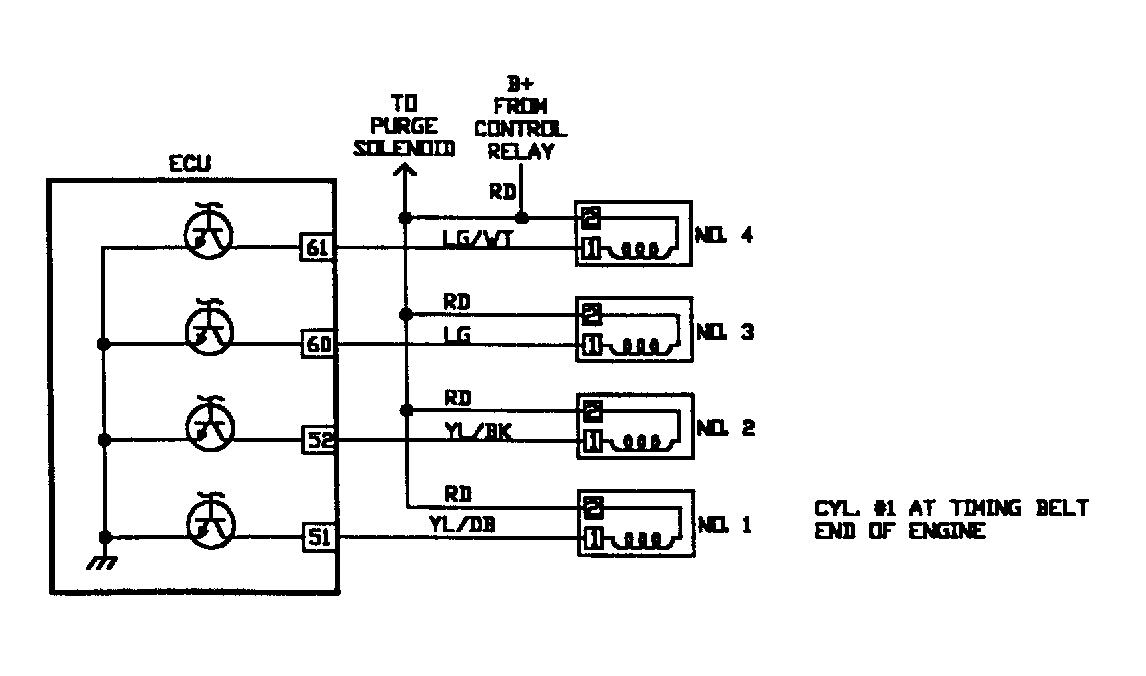

Fig 1: DR-12 Test Schematic Testing Injector Circuit

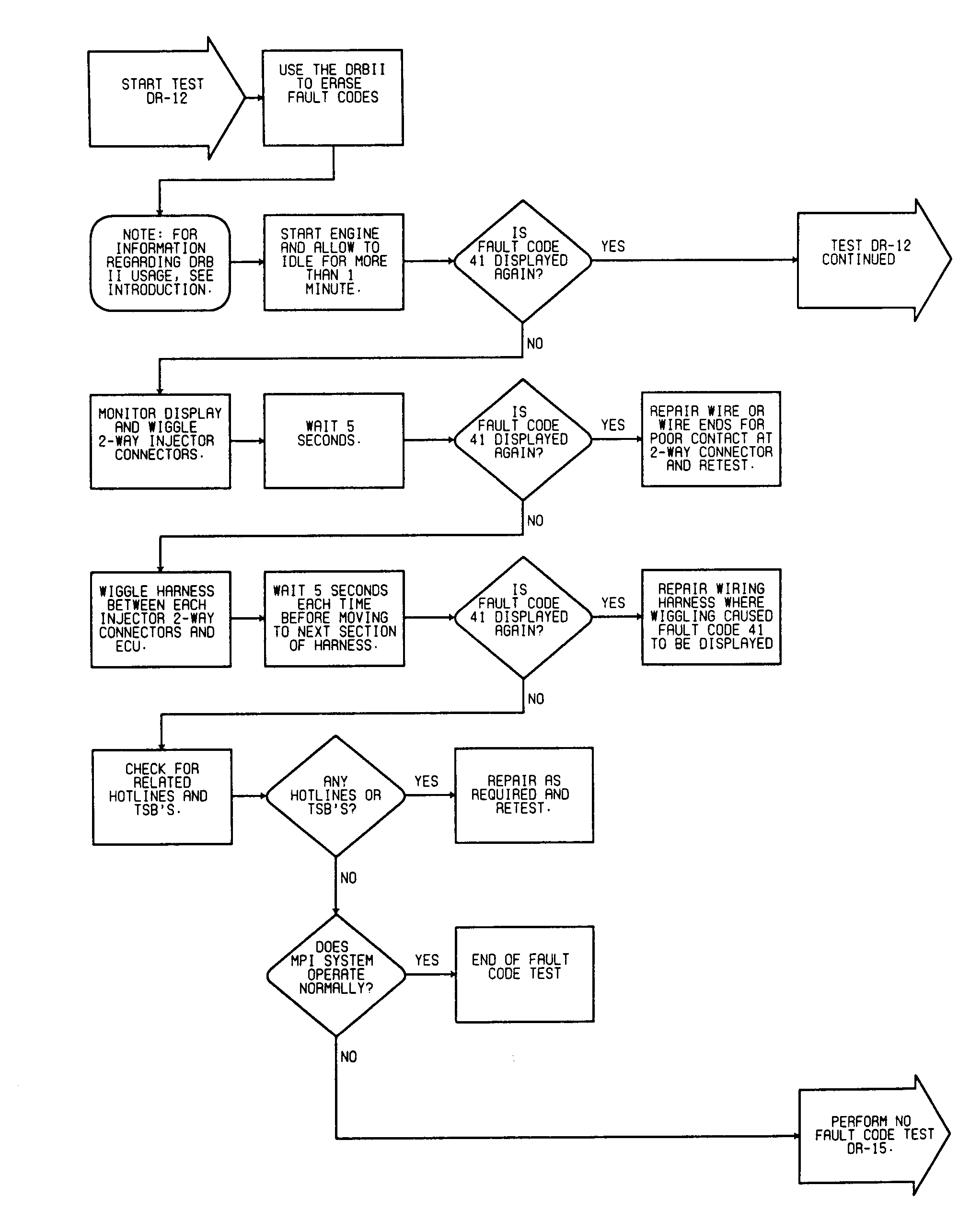

Fig 2: DR-12 Test Flow Chart (1 Of 2) Testing Injector Circuit

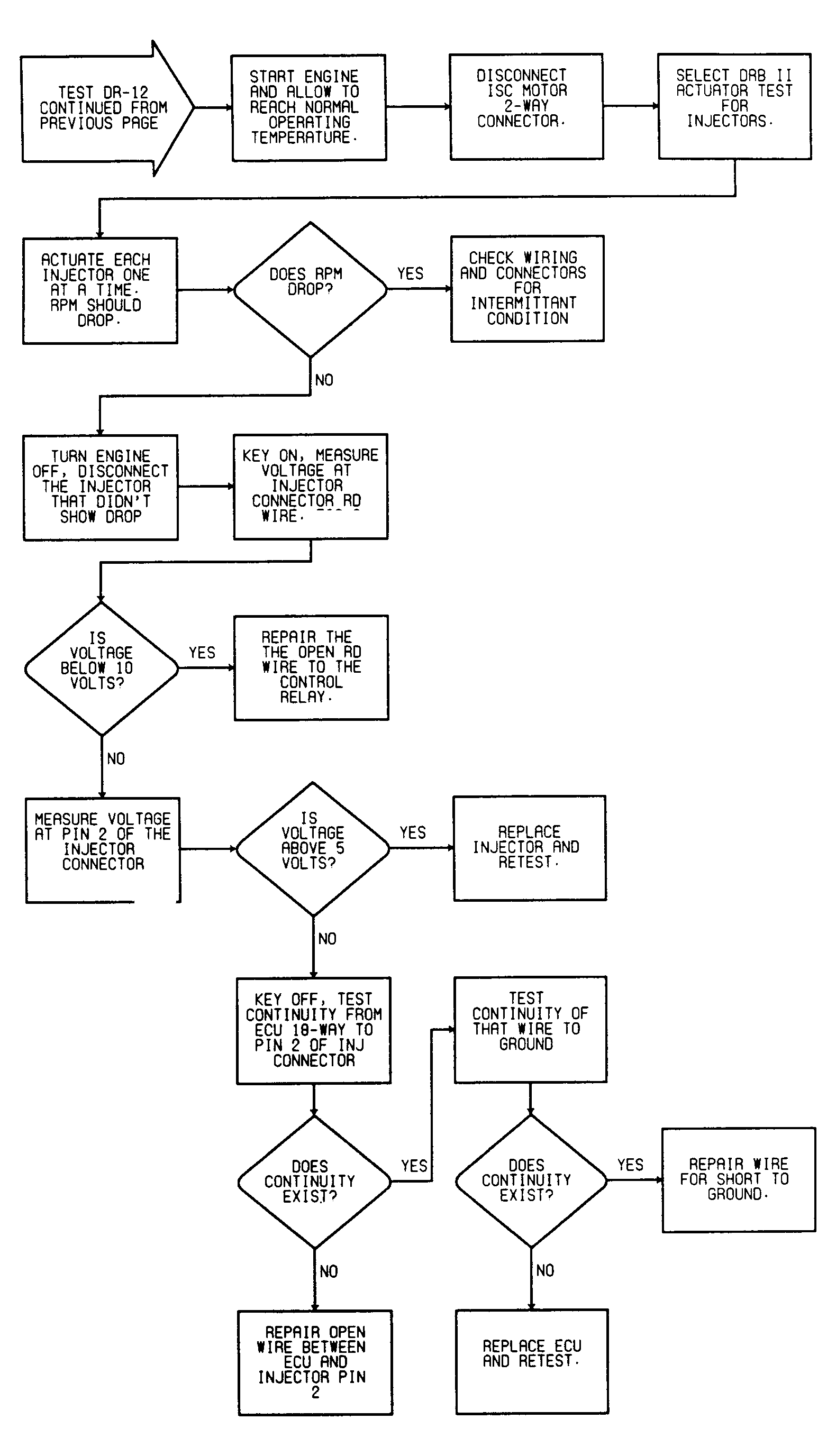

Fig 3: DR-12 Test Flow Chart (2 Of 2) Testing Injector Circuit
